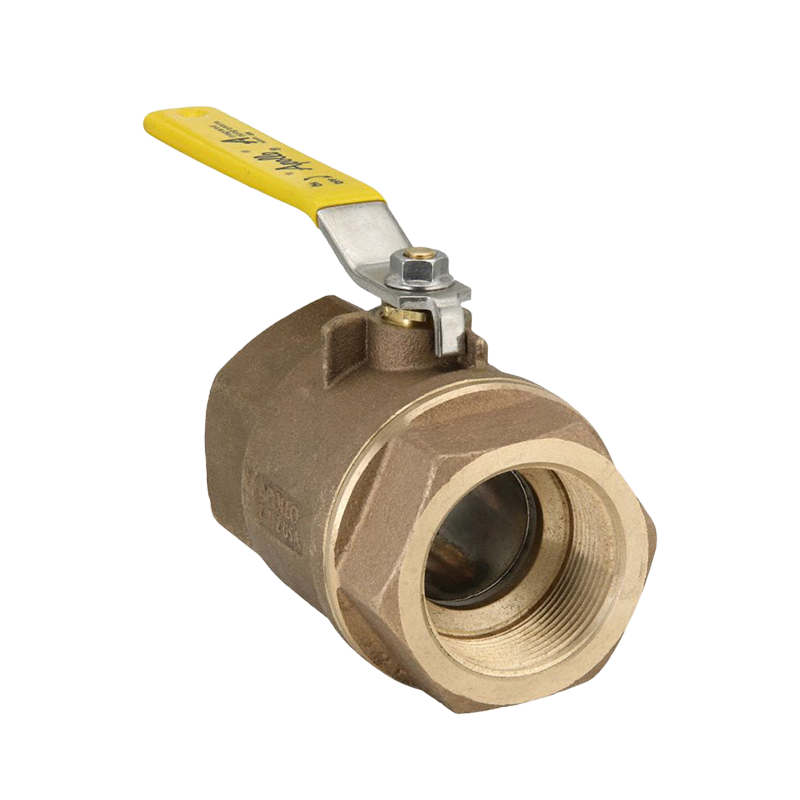

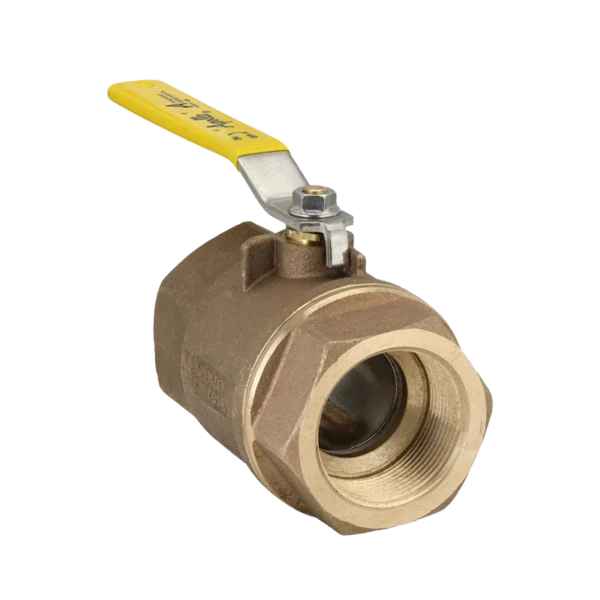

Apollo 70-109-01A Bronze Ball Valve 600 

Apollo 70-109-01A Bronze Ball Valve is a high-reliability, 2-piece, FNPT-threaded valve engineered for industrial applications demanding durable and maintenance-friendly components. Crafted in the USA by Apollo (Aalberts IPS), this valve meets MSS SP‑110 standards and offers precise shut-off control across a wide range of operating conditions.

H2 Features

• Heavy-duty 600 psi CWP, 150 psi SWP rating for liquid and steam service

• 500 °F maximum temperature, well-suited for high‑heat applications

• Chrome‑plated brass ball and RPTFE/PTFE seals ensure minimal wear and long service life

• Blow‑out‑proof stem design, reinforced seats, and adjustable packing gland for enhanced reliability

• Vacuum-rated to 29 in Hg and steam‑ready to 150 psi, enabling versatility across media

• Made in USA with 5‑year warranty for quality assurance

H2 Technical Specifications

H2 Applications

• Industrial water and gas distribution

• Steam control up to 150 psi saturated steam

• Vacuum and pressure systems in HVAC, chemical, and process industries

• General industrial shut‑off, bypass, and safety isolation

H2 Installation Tips

• Use NPT sealant or tape compatible with PTFE.

• Torque to valve manufacturer specs (typically 200–600 in‑lb).

• Install in the fully open position to reduce stress during piping alignment.

• Periodically cycle valve and inspect the stem gland—adjust gland nut if leakage occurs.

• Operate within temperature and pressure limits to prevent seal damage.

H2 Reasons to Buy

• Reliable Performance: 600 psi rating and 500 °F max temp makes it versatile.

• Built for Durability: Reinforced seats, chrome ball, and blow‑out‑proof stem mean long life under heavy use.

• US-Made Quality: Manufactured in Apollo’s South Carolina plant with 5‑year warranty.

• Low Maintenance: Durable materials and replaceable packing gland reduce downtime and service costs.
