$371.46
2 disponibles

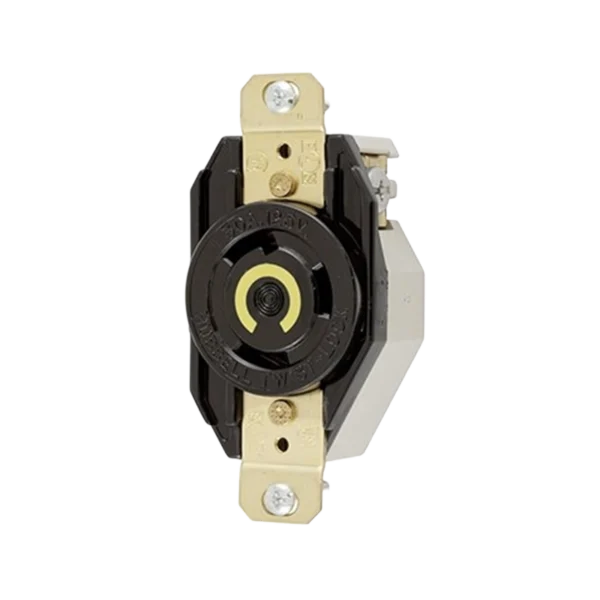

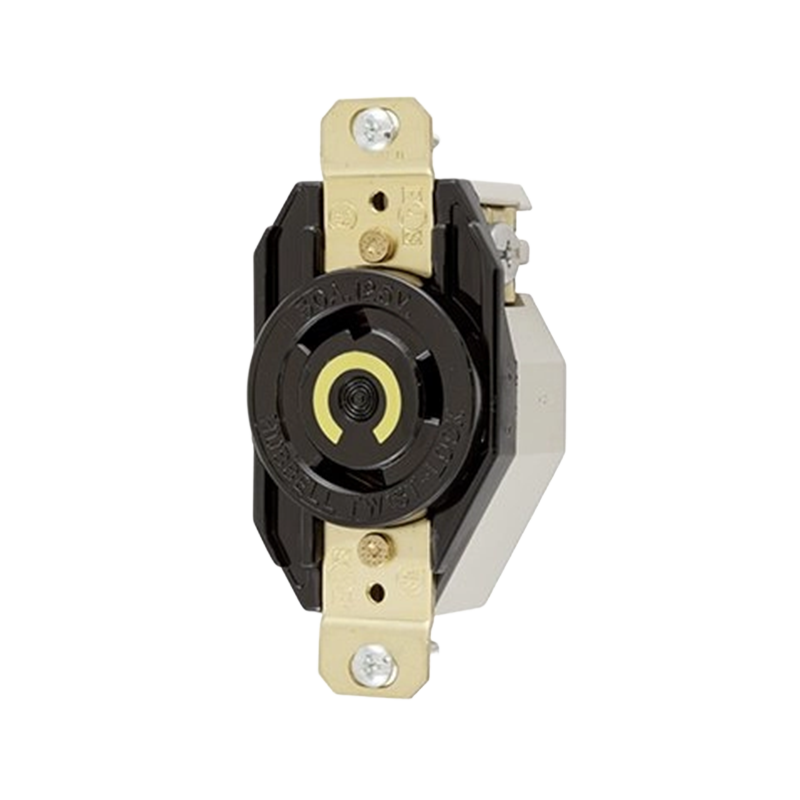

Leviton 2616 locking receptacle delivers 30 A 125 V NEMA L5‑30R durability in rugged nylon for heavy‑duty industrial use.
Leviton 2616 locking receptacle is a heavy‑duty, flanged‑mount locking outlet engineered to meet industrial and commercial reliability needs. Rated NEMA L5‑30R, this 2‑pole, 3‑wire grounding device provides 30 A at 125 V with a durable nylon body and lifetime warranty.
Industrial-strength nylon housing resists impact, chemicals, and UV exposure
One‑piece brass contacts reduce friction and minimize overheating
NEMA L5‑30R configuration, flanged mounting for secure installation
Locking twist design prevents accidental disconnection under vibration and movement
Back‑wired 18–10 AWG terminals, torque screws at 10–14 in‑lb
Grounding enabled, with brass grounding screw and grounding terminal
Lifetime limited warranty for peace‑of‑mind durability
| Specification | Details |
|---|---|
| Configuration | NEMA L5‑30R (2P, 3W) |
| Voltage Rating | 125 VAC |
| Amperage Rating | 30 A |
| Mounting | Flanged outlet |
| Body & Face Material | Rugged industrial nylon |
| Contact Material | Brass (.035″ thick) |
| Grounding | Yes, brass screw |
| Wire Range | 18–10 AWG back‑wire terminals |
| Horsepower Rating | 2 HP @ rated voltage |
| Dielectric Withstand | 2000 V per UL 498 standards |
| Temperature Rise | Max 30 °C above ambient after 250 cycles Over‑load |
| Operating Temp Range | –40 °C to 60 °C |
| Terminal Torque | 10–14 in‑lb |
| Safety & Standards | UL 498, CSA C22.2 No. 42, NOM 057, ANSI C‑73 |
| Warranty | Limited lifetime |
Industrial and commercial equipment requiring 30 A twist-lock power
Reliable power outlets for generators, welders, and HVAC units
Use in manufacturing facilities, workshops, and outdoor structures
Ideal for patios, RV power pedestals, and critical infrastructure
Turn off power at the breaker before mounting or wiring.
Secure flange to surface with suitable screws (not included).
Back-wire using clean-stripped conductors, torque screws to 10–14 in‑lb.
Confirm twist-lock plugs fully engage and twist to lock.
Periodically inspect for tightness and wear—clean contacts if needed.
Built to last: industrial-grade nylon and one-piece brass contacts ensure longevity
Stay-connected reliability: locking L5 design resists vibration and prevents drops
Safety-first: grounding included, UL/CSA & NOM certified
Heavy-duty performance: supports 2 HP equipment at full load
Peace of mind: lifetime limited warranty
