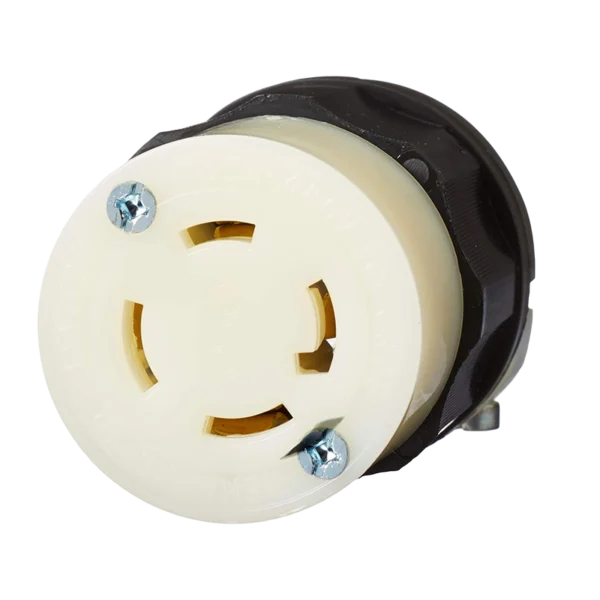

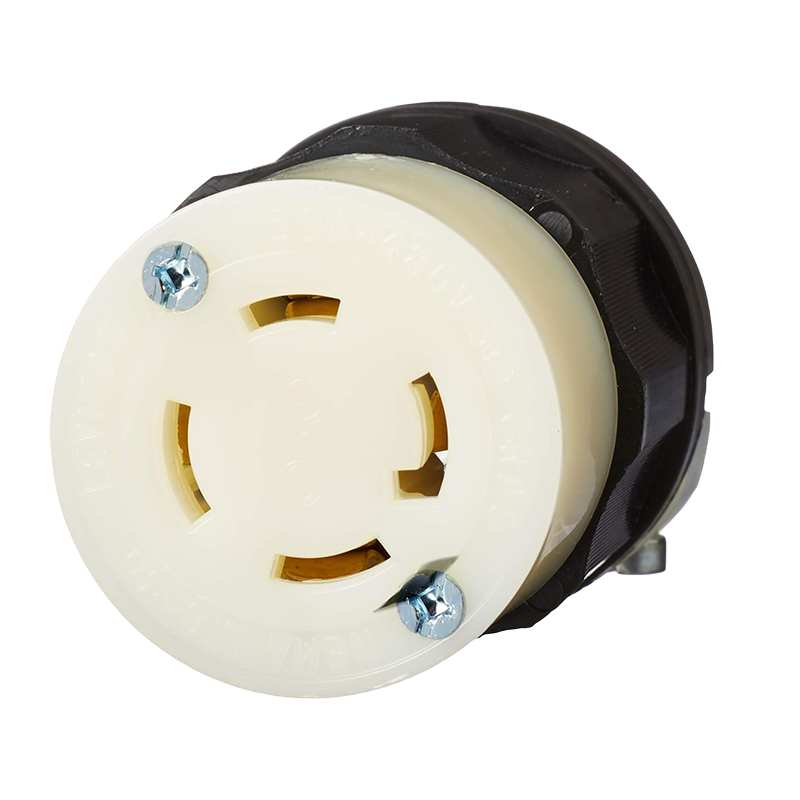

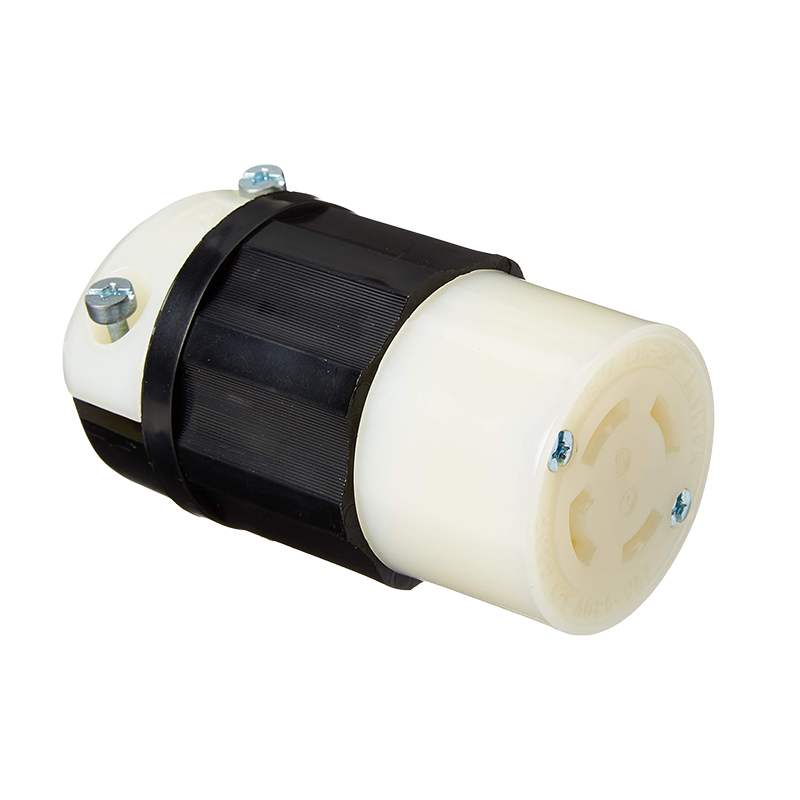

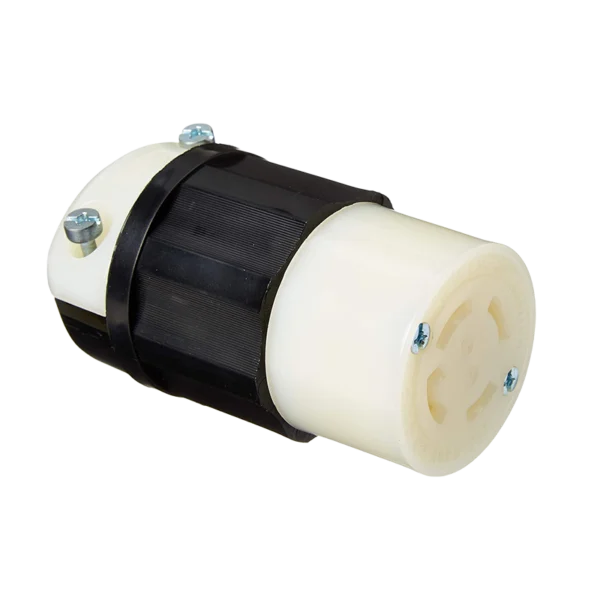

Leviton 2733 connector – 30 A, 480 V 3‑phase locking receptacle, NEMA L16‑30R, industrial‑grade nylon housing with solid brass contacts.
The Leviton 2733 connector is a premium‑grade NEMA L16‑30R 30 A, 480 V, 3‑phase, 4‑wire locking receptacle designed for industrial and commercial environments. Built with a rugged nylon housing and solid brass contacts, this connector is engineered for durability, safety, and long-term performance in demanding applications.
30 A, 480 V rating: Ideal for heavy‑duty equipment and power distribution systems
NEMA L16‑30R configuration: 3 poles + ground, twist‑lock for secure connection
Industrial-grade nylon housing resists impact, chemicals, UV, and harsh environments; UL 94 HB flame rating
Solid brass contacts for superior conductivity and corrosion resistance
One-piece contact design reduces friction and overheating
Wide cord-clamp range: 0.595–1.150″ accommodates various cable types
Grounding included via dedicated ground contact for safety
Terminal capacity: 18–8 AWG screw terminals (brass screws)
Horsepower rated: Supports up to 10 HP
| Feature | Specification |
|---|---|
| Brand | Leviton |
| Model | 2733 |
| Type | Locking connector (receptacle) |
| NEMA | L16‑30R |
| Amps | 30 A |
| Voltage | 480 VAC, 3‑phase |
| Poles | 3 poles + ground (4‑wire) |
| Cord Range | 0.595–1.150 inches |
| Temp Range | −40 °C to 60 °C operating |
| Housing | Impact‑modified nylon |
| Contacts | Solid brass |
| Wire Terminals | Screw, accepts 18–8 AWG |
| Torque | 10–14 in‑lb for screws |
| Dielectric | Withstands 2000 V per UL 498 |
| Dimensions | Ø 2.22″ × L 3.78″ |
| Weight | ~0.48 lb per unit |
| Certifications | UL 498, CSA C22.2 No. 42, NOM, ANSI C‑73, NEMA WD‑6, UL 94 HB |
| Warranty | Limited lifetime |
Designed for power connections in:
Industrial equipment and machinery
Temporary power distribution setups
Generator panels, data centers, workshops
Anywhere a secure, grounding 480 V power feed is required
The twist‑lock design prevents accidental disconnection, ensuring safe and reliable performance.
Mount the connector in a panel or enclosure.
Strip cable to proper length.
Secure conductors under screw terminals per torque spec.
Attach cable jacket using built-in clamp.
Plug in using matching L16‑30P connector.
Ideal for environments requiring rugged construction and consistent performance.
