THW‑LS/THHW‑LS 14 AWG White Cable 100 m CDC features 14 AWG stranded copper with low-smoke PVC insulation, suitable for 600 V systems, 75–90 °C environments, in a CDC-standard 100 m roll.
THW‑LS/THHW‑LS 14 AWG White Cable 100 m CDC is a premium-grade electrical cable meeting strict safety standards and designed for industrial, commercial, and residential installations. This high-quality cable features 14‑AWG stranded copper conductors (19 strands, 2.08 mm² cross‑section) wrapped in low‑smoke, flame-retardant PVC insulation, often with an added nylon outer jacket, and wound into a convenient 100-meter CDC‑approved coil—labelled THW‑LS/THHW‑LS 14 AWG White Cable 100 m CDC for easy identification.
Manufactured to support up to 600 V, this cable performs reliably in both dry and wet locations—rated 90 °C for THHW‑LS dry environments and 75 °C for THW‑LS wet or oily conditions . The low-smoke, low-toxic (LS) PVC insulation complies with ASTM and UL standards (ASTM B3/B8/B787, UL 1581/83), and resists flame propagation and corrosion—critical for installations in conduits, trays, and building wiring where fire safety is essential
14 AWG stranded copper conductor (19 strands, 2.08 mm²)
Low-smoke, flame‑retardant PVC insulation (THW‑LS) with nylon jacket for durability
THHW‑LS variation rated 90 °C dry, 75 °C wet/oil; THW‑LS rated 75 °C wet
600 V voltage rating for building and industrial circuits
White jacket for aesthetic or code-compliant installations

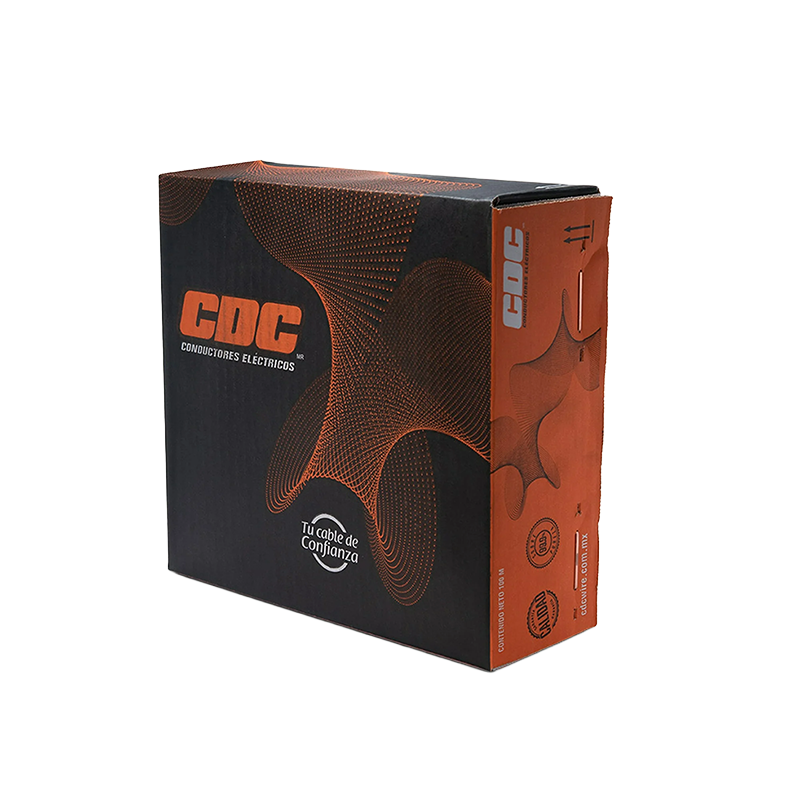

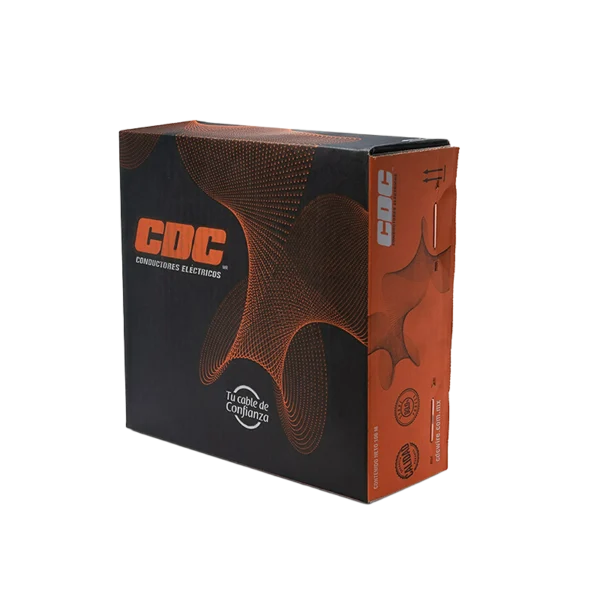

CDC-standard 100 m roll in a sturdy box for easy handling
Meets ASTM, NEC, NMX‑J‑010‑ANCE, and UL certifications
| Specification | Details |
|---|---|
| Wire Size | 14 AWG stranded copper (19 strands, 2.08 mm²) |
| Insulation | PVC, low-smoke flame retardant (LS), nylon jacket |
| Voltage Rating | 600 V |
| Temperature Rating | THHW‑LS: 90 °C dry, 75 °C wet; THW‑LS: 75 °C wet / oily |
| Roll Length | 100 m CDC-standard box |
| Certifications | ASTM B3/B8/B787, UL 1581, UL 83, NEC, NMX‑J‑010‑ANCE |
| Fire Properties | Non-propagating, LS low-smoke, low acid gas |
| Common Uses | Building wiring, feeders, conduit, trays |
Main and branch circuits in commercial and industrial buildings
Raceway installations in metal trays, conduits, or ducts
Service wiring for motors, pumps, HVAC, and lighting systems
OEM wiring for control panels and machinery
Safe installations where fire spread and smoke are concerns
Unwind cable carefully; maintain proper bend radius.
Strip with quality tools—retain copper integrity.
Install in conduits/trays with appropriate supports.
Secure box after final installation to prevent damage.
Inspect annually; replace if insulation shows cracks.
Avoid direct exposure to solvents or intense sunlight.
Code-compliant safety with low-smoke fire resistance
Flexible handling with stranded conductor
Durable PVC/nylon insulation resists wear, chemicals, heat
High capacity—fits broad electrical needs at 600 V/90 °C
Neat and easy to transport in 100 m CDC box
Trusted certifications simplify regulatory compliance
Now installed in demanding environments worldwide, THW‑LS/THHW‑LS 14 AWG White Cable 100 m CDC gives you peace of mind—from severe industrial setups to high-rise offices. Backed by full safety and performance standards, this cable offers reliability and compliance for all your wiring needs.
