$821.60
1 disponibles

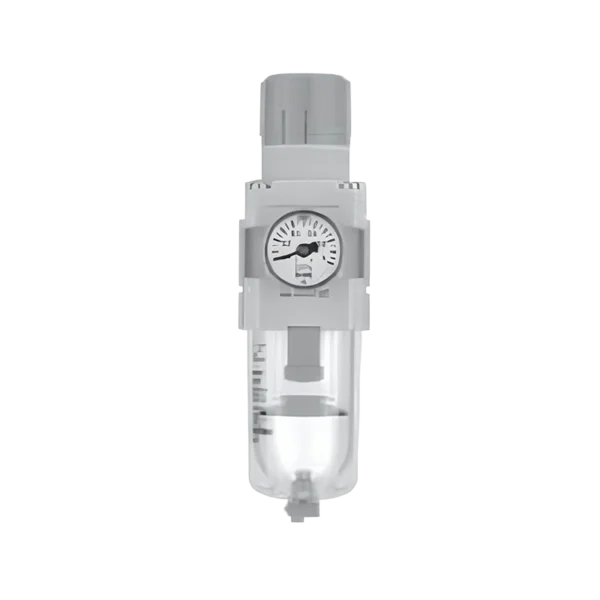

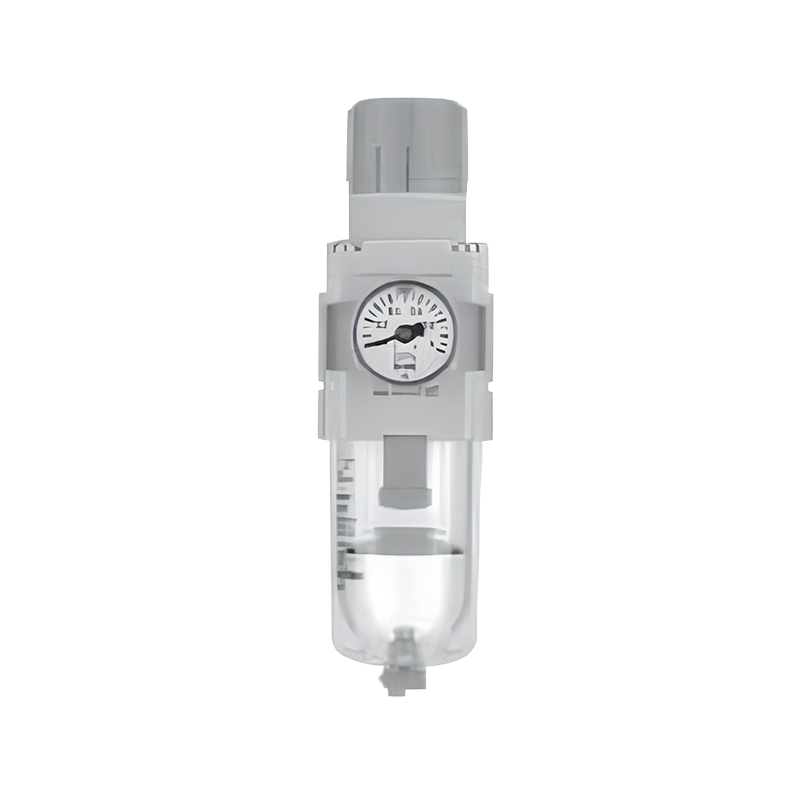

SMC AW30-N03BG-Z-A filter regulator with 3/8″ NPT port ensures clean, regulated air for industrial pneumatic systems.
The SMC AW30-N03BG-Z-A filter regulator is a premium pneumatic control component engineered to combine air filtration and regulation in one compact and efficient unit. Designed for use in a variety of industrial automation systems, this model features a 3/8″ NPT port connection and delivers consistent, clean, and regulated air supply to downstream equipment.
Whether you’re setting up a new pneumatic line or maintaining a high-performance system, the SMC AW30-N03BG-Z-A ensures longevity and reliability by protecting your system from moisture and particulates while keeping pressure levels stable.
Combination air filter and pressure regulator
Transparent bowl with bowl guard
3/8″ NPT female port for easy connection
Built-in pressure gauge
Drain function: auto drain or manual available
Light, compact aluminum body
Wall-mountable or in-line installation options
| Specification | Value |
|---|---|
| Model | AW30-N03BG-Z-A |
| Brand | SMC |
| Port Size | 3/8″ NPT |
| Filtration Grade | 5 microns |
| Operating Pressure Range | 7 to 125 psi |
| Set Pressure Range | 0.05 to 0.85 MPa (7–123 psi) |
| Bowl Material | Polycarbonate with cover |
| Drain Type | Manual / Auto (depending on variant) |
| Operating Temperature | 5°C to 60°C (41°F to 140°F) |
| Weight | 0.84 lb |
| Dimensions (LxWxH) | 5.9 x 2.2 x 2.2 inches |
Pneumatic tools and automation systems
Air compressors and dryers
Packaging machinery
Automotive manufacturing lines
General industrial pneumatic systems
Mount vertically with the bowl facing downward
Ensure the airflow direction matches the arrow on the housing
Use thread sealant for leak-proof NPT connections
Clean the bowl periodically to maintain performance
Dual-function unit reduces space and cost
Transparent bowl simplifies visual inspection
SMC quality ensures high durability and low maintenance
Easy integration with existing pneumatic setups
Available with various drain options for flexible maintenance
