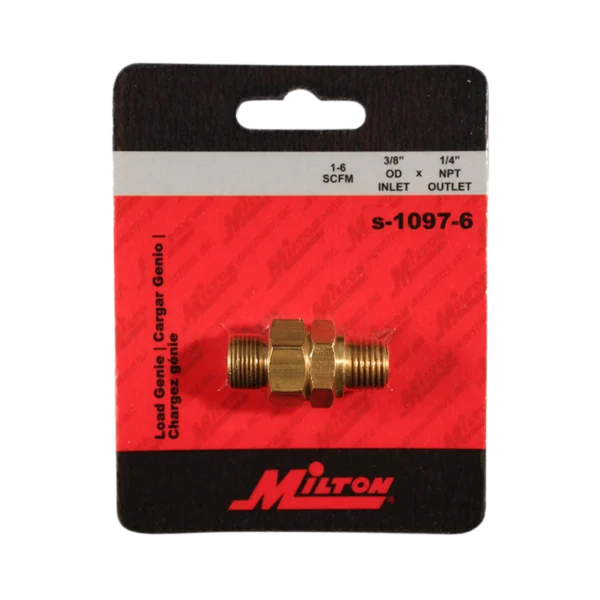

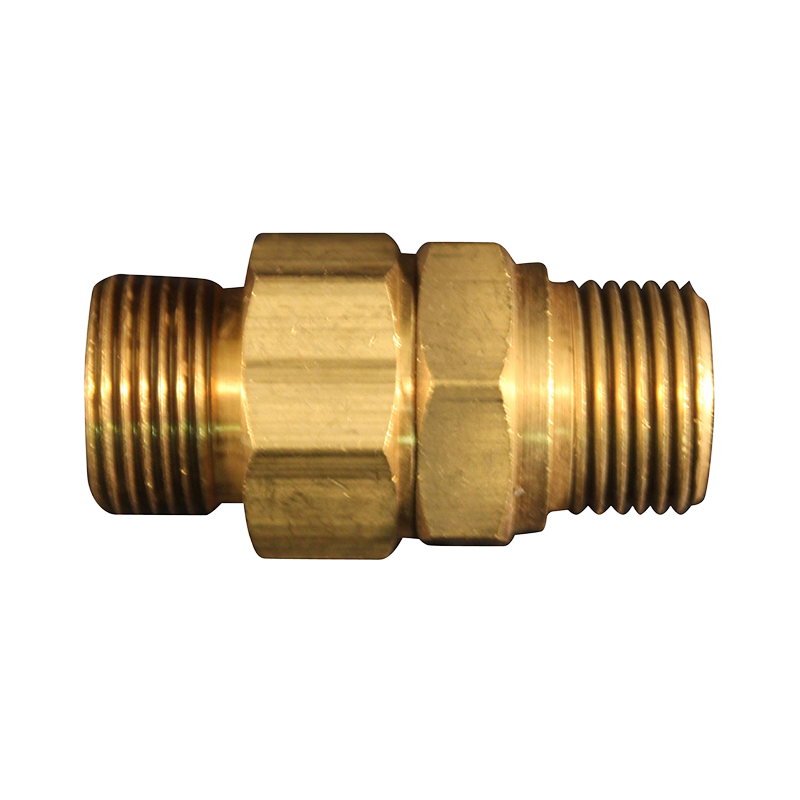

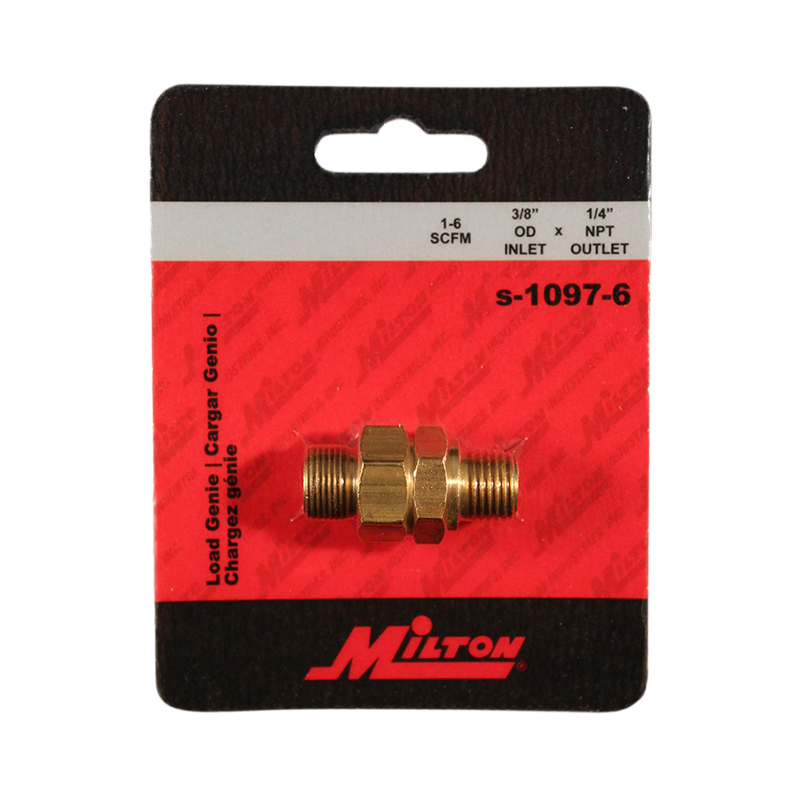

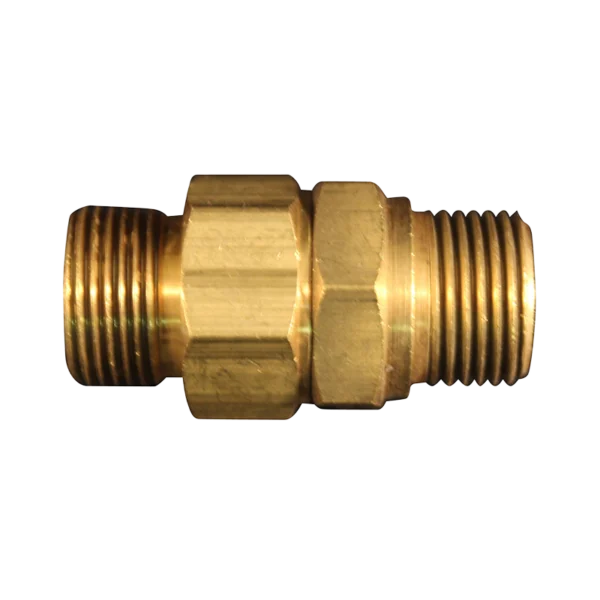

MILTON 1097-6 3/8″ X 1/4″ SAFETY VALVE

Milton 1097‑6 3/8″ OD × ¼″ MNPT Load Genie Safety Valve is a compact yet powerful unloader and check valve designed to optimize compressor performance and protect pneumatic systems. Dubbed the Load Genie, this valve relieves pressure in the discharge line (3/8″ OD) once the compressor cycles off, preventing compressed air from re-entering the tank or causing pressure-lock, and enabling quieter rest cycles.

Constructed of durable brass with a stainless-steel spring and fluorocarbon piston seal, the Milton 1097‑6 Load Genie Safety Valve functions reliably up to 250 psi working pressure and 450 °F maximum temperature. Compatible with compressors running up to 400 RPM, it effectively unloads 1–6 SCFM to reduce load on the motor at shutoff.

Load Genie 1097‑6 Safety Valve features:

• 3/8″ OD compression inlet for tight compressor port fit

• ¼″ MNPT outlet for flexible placement in manifolds or tubing

• Brass body, SS spring, fluorocarbon seals for industrial-grade durability

• Rated 250 psi, ideal for most shop air systems

• Endurance to 450 °F, suitable for hot cycling

• Flow range 1–6 SCFM, efficient enough for periodic unload

H2 Technical Specifications

H2 Applications

Use the Milton 1097‑6 Load Genie Safety Valve to:

• Safely bleed off compressor discharge at shutdown

• Prevent pressure lock and reduce start-up torque

• Protect pressure switches and motor relays

• Integrate with tank-mounted or inline compressor setups

• Serve in portable units, workshops, and OEM configurations

H2 Installation Tips

1. Clean and tighten the 3/8″ OD connection to compressor discharge

2. Use PTFE tape on ¼″ MNPT output for airtight seal

3. Mount vertically or horizontally (self-venting)

4. No service required—replace at signs of leakage or spring fatigue

H2 Benefits

• Extends compressor life—prevents stress at shutoff

• Energy-efficient—reduces motor strain on restart

• Compact and quiet—ideal for small systems

• Heat-resistant design—handles hot air cycles

• Built to last—industrial materials ensure longevity

H2 Why Choose Milton 1097‑6?

Milton Industries offers trusted pneumatic components since 1943. The Load Genie 1097‑6 Safety Valve continues this legacy by delivering dependable unload performance and system protection in one small, powerful package. Dependable, easy to install, and built for real-world use.
