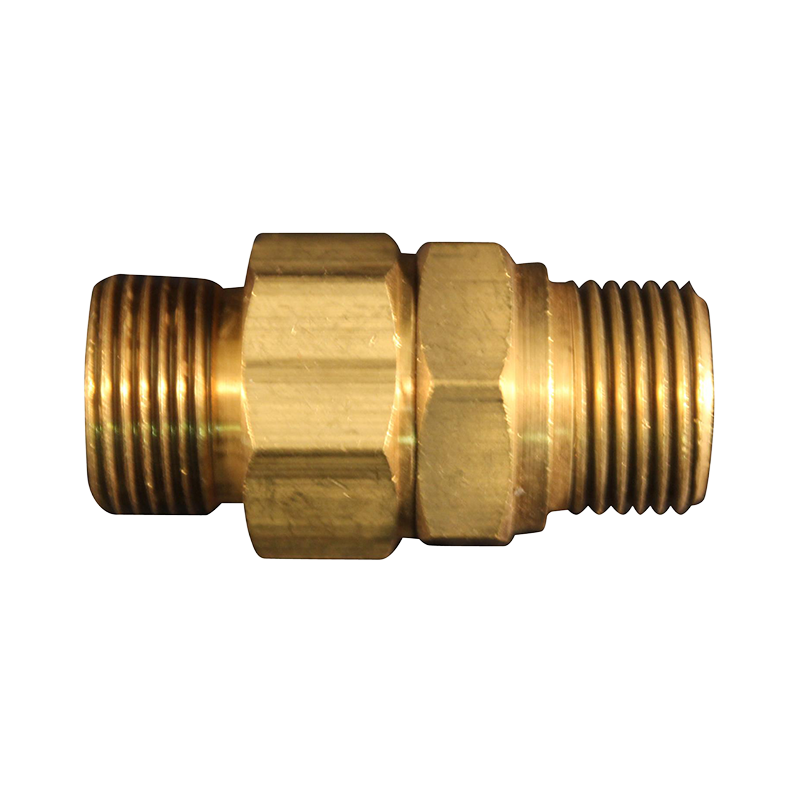

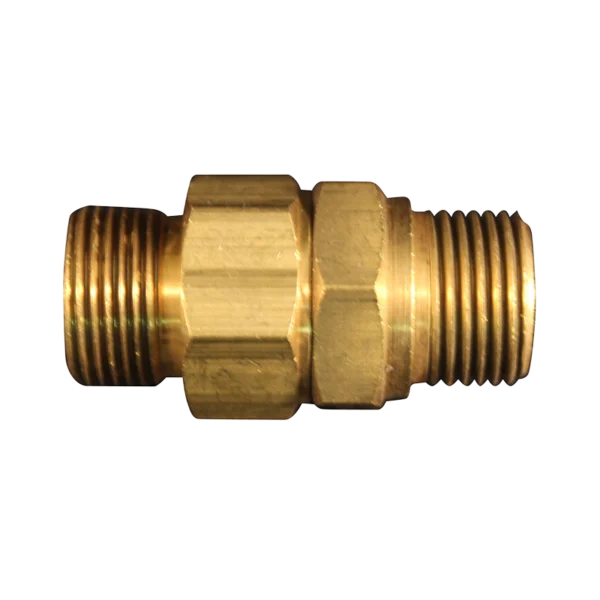

Milton 1097‑8 ½″ OD × ⅜″ MNPT Load Genie Safety Valve

Milton 1097‑8 ½″ OD × ⅜″ MNPT Load Genie Safety Valve is a precision-engineered relief valve that protects pneumatic compressors by venting discharge line pressure silently during shutoff, preventing pressure hold‑ups and significantly reducing start‑up load. Specifically designed with a compression inlet fitting to fit ½″ OD tubing and a ⅜″ MNPT outlet, this valve offers versatile installation options in your pneumatic setup.

Constructed from industrial-grade brass with stainless steel internal components and a fluorocarbon piston seal, the Milton 1097‑8 Load Genie Safety Valve reliably handles 250 psi maximum operating pressure and extreme temperatures up to 450 °F . It’s capable of relieving airflow at 1–6 SCFM—adequately bleeding off pressure in compressors up to around 400 RPM .

By venting compressed air silently, the Milton 1097‑8 prevents backflow into the compressor tank or pressure switch, ensuring smoother rest cycles and less mechanical wear. Its compact size (approx. 2.4″ long) makes it ideal for mounting in tight spaces near compressor outlets or manifolds.

H2 Key Features

• ½″ OD compression inlet for direct tubing hookup

• ⅜″ MNPT outlet thread for adaptable installation

• Sturdy brass body, SS spring, fluorocarbon seal for high durability

• Rated 250 psi / 450 °F for demanding pneumatic systems

• Unloader capacity 1–6 SCFM enables efficient pressure relief

H2 Technical Specifications

H2 Applications

Use the Milton 1097‑8 Load Genie Safety Valve to:

• Quietly vent discharge pressure at compressor shutoff

• Prevent backflow to prolong tank and valve service life

• Reduce load and noise during rest cycles

• Fit installation behind regulators, gauges, or manifolds

• Support compressors in workshops, mobile units, or OEM applications

H2 Installation & Tips

1. Clean-fit ½″ tubing into compression inlet; tighten nut per specs

2. Use PTFE tape on ⅜″ MNPT outlet for proper sealing

3. Install near the compressor discharge line or manifold

4. Check for silence and no air leaks during startup cycles

5. Replace if internal spring weakens or vent flow diminishes

H2 Benefits

• Protects compressors with quieter shutoff cycles

• Minimizes wear on pressure-switches and motors

• High-temperature, high-pressure design suits harsh environments

• Compact form fits into tight pneumatic layouts

• Easy to install, reliable performance

• Backed by Milton’s proven form and function

H2 Why Choose Milton 1097‑8?

Milton’s Load Genie series is trusted by pneumatic professionals worldwide. The Milton 1097‑8 ½″ OD × ⅜″ MNPT Load Genie Safety Valve adds robust protection and quiet operation to any compressor setup, ensuring longer service life and smoother pressure control under tough operating conditions.
