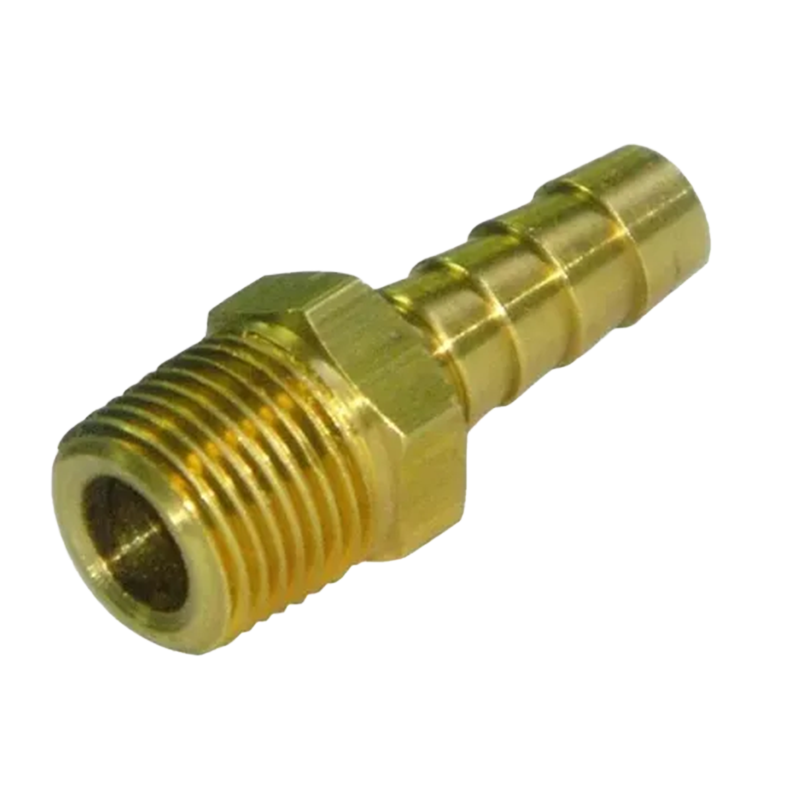

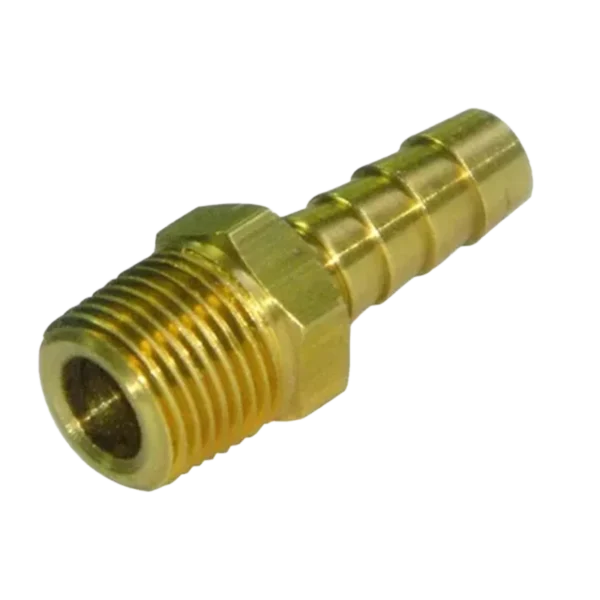

Milton 2200-7 male tubing connector 5/16 x 3/8 NPT

Milton 2200-7 male tubing connector – high-performance brass pneumatic fitting

The Milton 2200-7 male tubing connector is a professional-grade push-to-connect brass fitting designed for quick and secure installation of pneumatic tubing into a 3/8” NPT female thread. This connector supports 5/16” OD plastic or polyurethane tubing and is ideal for compressed air systems, automation setups, and industrial machinery.

Built for speed and reliability

The Milton 2200-7 male tubing connector uses a push-to-connect system that allows users to insert tubing without tools. Its internal stainless-steel collet holds the tubing firmly in place, while the brass body resists corrosion and mechanical wear. The design enables fast replacements or system modifications, helping reduce downtime in pneumatic applications.

Key features of the Milton 2200-7:

• Push-to-connect technology for 5/16″ outer diameter tubing

• 3/8” NPT male thread fits standard industrial ports

• Durable brass construction for long service life

• Buna-N internal seal compatible with air and inert gases

• Rated pressure: up to 150 PSI

• Temperature range: 32°F to 140°F

Whether you’re equipping an air compressor station, an automated line, or a portable air tool, this connector ensures leak-free and vibration-resistant performance. It’s perfect for applications where speed and reliability are essential.

Technical specifications

Applications

• Pneumatic lines in industrial machinery

• Air compressors and distribution systems

• Automation equipment and control valves

• Shop air setups and portable tools

• Industrial hose drops and manifolds

Installation tips

1. Cut the tubing square and remove burrs

2. Insert tubing into the connector until it bottoms out

3. Apply thread sealant or PTFE tape to NPT male threads

4. Tighten into port securely using a wrench

5. To release tubing, press the collet inward and pull the tube

Why choose Milton fittings?

Milton is a leading manufacturer of pneumatic accessories trusted across North America. Their fittings are built to last and designed for high-performance environments. With Milton 2200-7 male tubing connector, you ensure reliable airflow, quick maintenance, and safe operations.
