MILTON TUBING ELBOW MALE 2202-4 1/4″ X 3/8″ NPT

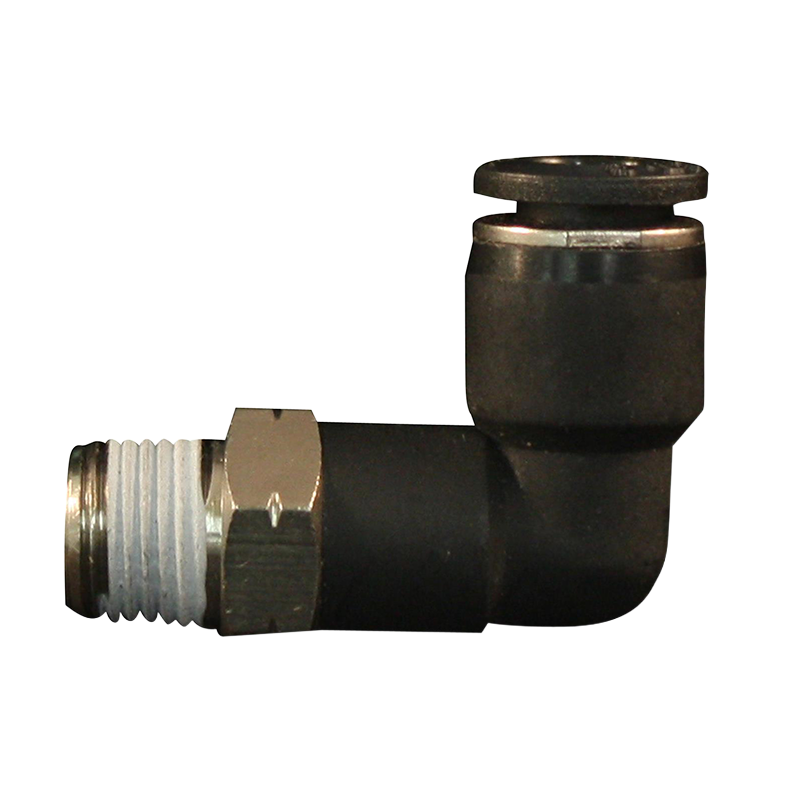

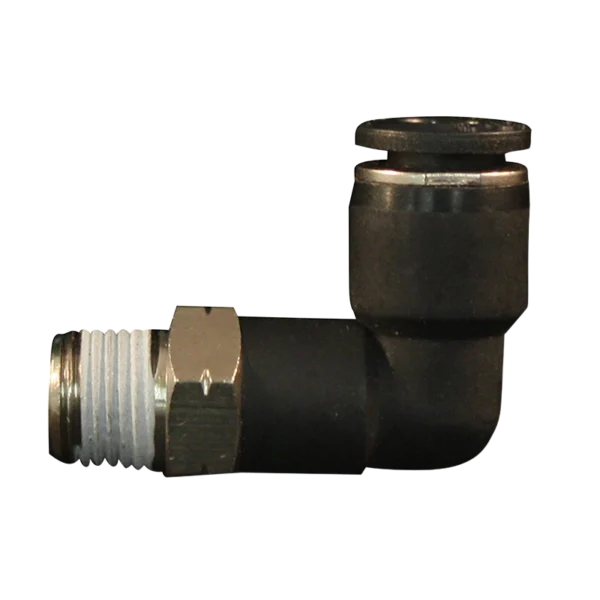

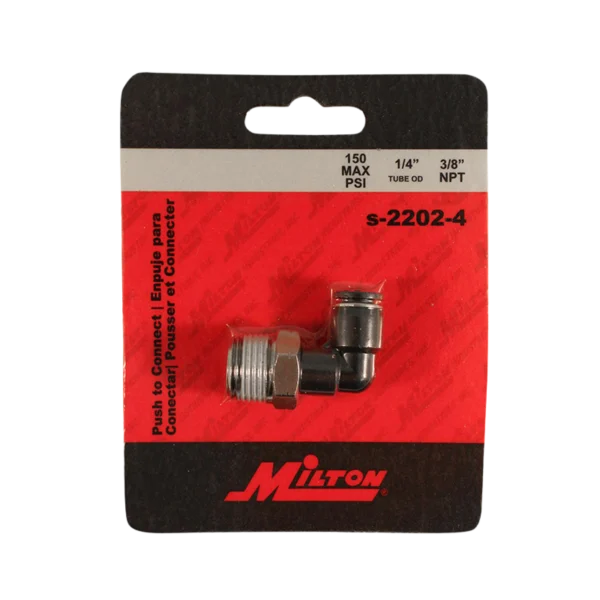

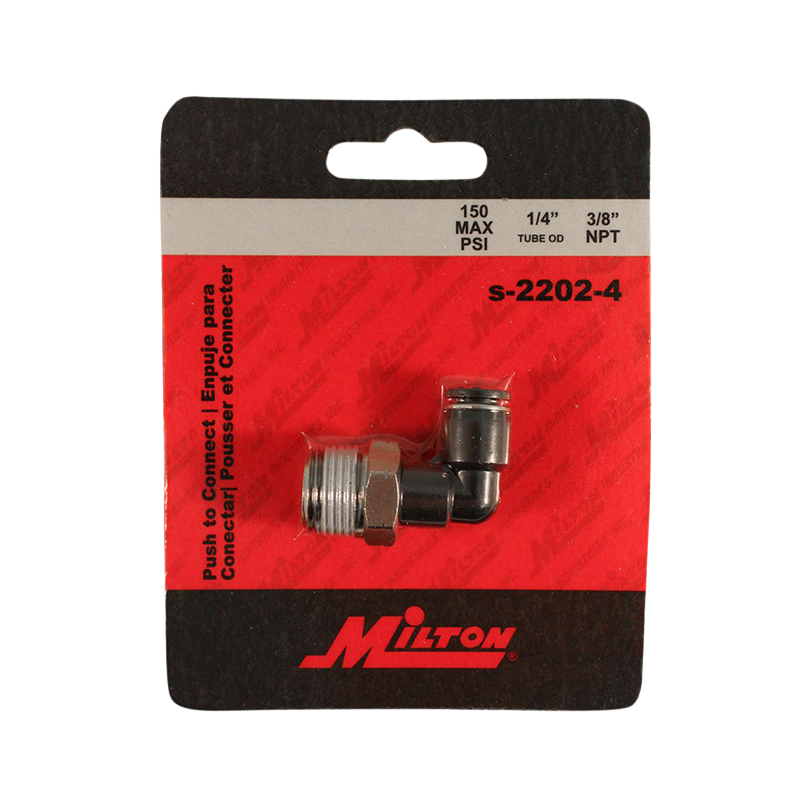

Milton 2202‑4 3/8″ MNPT × 1/4″ Push‑to‑Connect Swivel Elbow is a versatile pneumatic fitting engineered to simplify air-line plumbing. The Milton 2202‑4 3/8″ MNPT × 1/4″ Push‑to‑Connect Swivel Elbow combines a 3/8″ male NPT thread with a 1/4″ OD push-in tubing barb in a nylon 90° swivel design, allowing effortless hose routing in tight spaces.

Ideal for garage, shop, and industrial applications, the Milton 2202‑4 3/8″ MNPT × 1/4″ Push‑to‑Connect Swivel Elbow is rated to 150 psi and sealed with a reliable Buna‑N O-ring, making it compatible with nylon, polyurethane, and polyethylene tubing. Its reusable push-fit sleeve enables easy tube insertion and removal, streamlining installation and maintenance.

H2 Key Features

• 3/8″ MNPT male thread for secure connection to manifolds or ports

• 1/4″ OD push-to-connect tubing interface with quick-release sleeve

• 360° swivel design to prevent tubing stress and kinks

• Rated 150 psi working pressure, ideal for general shop use

• Buna‑N seal ensures reliable leak resistance

• Nylon body offers chemical resistance and lightweight durability

H2 Technical Specifications

H2 Applications

The Milton 2202‑4 3/8″ MNPT × 1/4″ Push‑to‑Connect Swivel Elbow is perfectly suited for:

• Pneumatic tool hook-ups in shops and manufacturing lines

• Air hose assemblies on reels and manifolds

• Assembly fixtures where space is constrained

• Quick-fit test bench plumbing

• DIY or automation projects requiring adaptable tubing paths

H2 Installation & Maintenance

1. Wrap 3/8″ NPT male threads with PTFE tape.

2. Hand-tighten into inlet port or manifold.

3. Push the 1/4″ tubing firmly into the sleeve until it locks.

4. Rotate tubing to test swivel action and tension relief.

5. To remove tubing, depress twp push collar and pull tubing straight out.

6. Choose Buna‑N compatible lubricants if needed; clean with dry cloth.

H2 Benefits

• Speeds up pneumatic routing with clamp-free tubing

• Rotatable swivel eliminates tubing stress and premature wear

• Reusable design saves maintenance time and cost

• Compact 90° form makes it ideal for low-clearance zones

• Nylon construction balances strength with chemical resilience

H2 Why Milton 2202‑4?

Milton Industries has been a trusted name since 1943. The Milton 2202‑4 3/8″ MNPT × 1/4″ Push‑to‑Connect Swivel Elbow provides a compact, reliable solution for high-quality air-line setups—combining swivel flexibility, push-fit simplicity, and durable sealing in one smart component.
