MILTON 2204-2 1/4″ X 1/4″ T-TUBE

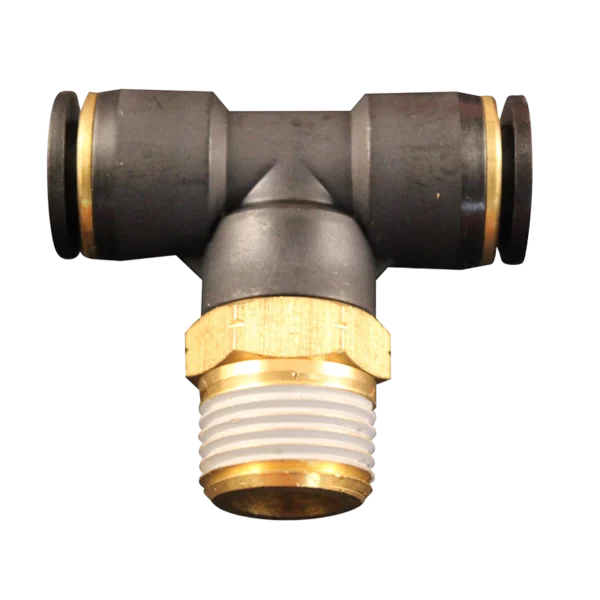

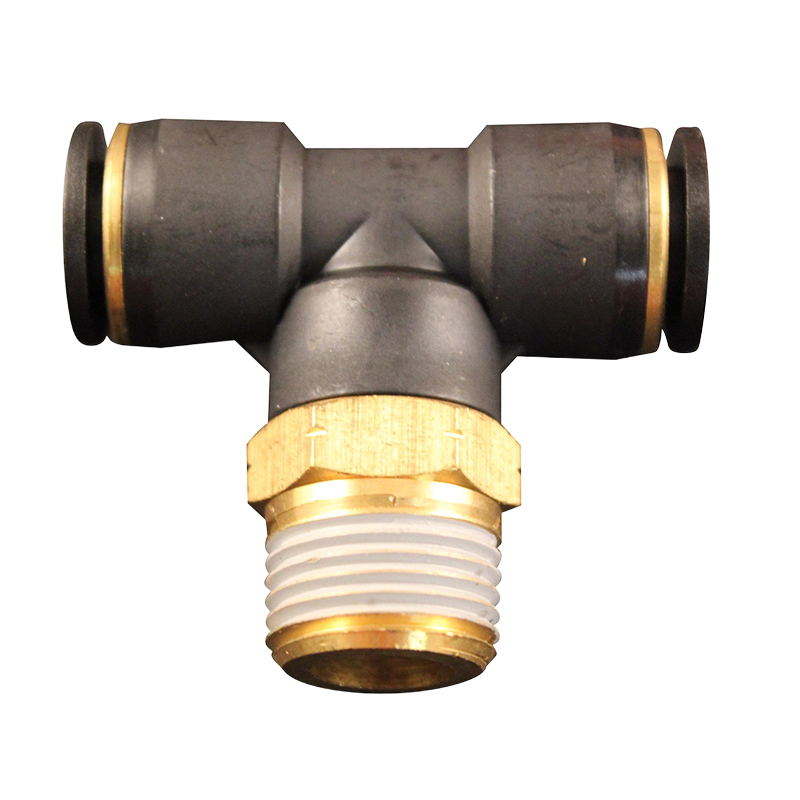

Milton 2204‑2 ¼″ MNPT × ¼″ Push‑to‑Connect Swivel Branch Tee is a versatile nylon pneumatic T‑fitting engineered for quick, tool‑free air-line branching. The Milton 2204‑2 ¼″ MNPT × ¼″ Push‑to‑Connect Swivel Branch Tee connects a ¼″ OD tubing line to a ¼″ NPT male port while providing a 360° swivel feature to reduce tubing stress and improve hose management.

Each T‑fitting comes in a box of 10 pieces—ideal for workshops, service vans, or pneumatic installations. Made from durable nylon with a Buna‑N seal, the Milton 2204‑2 ¼″ MNPT × ¼″ Push‑to‑Connect Swivel Branch Tee handles up to 150 psi working pressure and makes repeated connections reliable and secure.

H2 Key Features

• ¼″ MNPT male thread anchors securely into ports or manifolds

• ¼″ OD push‑to‑connect tubing port enables tool‑free installation and removal

• 360° swivel design reduces hose twist and simplifies routing

• 150 psi max working pressure for mid‑range pneumatic systems

• Buna‑N seal ensures leak resistance and chemical compatibility

• Reusable and efficient, push-sleeve allows quick release and reconfiguration

H2 Technical Specifications

H2 Applications

Use the Milton 2204‑2 ¼″ MNPT × ¼″ Push‑to‑Connect Swivel Branch Tee in:

• Air hose splits for multiple tool outlets

• Shop and service van manifold extensions

• Portable compressor setups with quick‑release lines

• Automated pneumatic systems and shop fixtures

H2 Installation & Maintenance

1. Apply PTFE tape to ¼″ MNPT threads before installing into the port.

2. Thread the fitting snugly—but avoid overtightening.

3. Push tubing into the ¼″ OD port until it locks audibly.

4. Rotate tubing to confirm swivel is working properly.

5. To remove, depress sleeve and pull tubing straight out.

6. Inspect seals periodically; replace if air leakage occurs.

H2 Benefits

• Fast, tool-free installation speeds up setup

• Swivel design prolongs tubing life by eliminating strain

• Compact nylon body resists corrosion and is lightweight

• Reliable pressure rating for general pneumatic use

• Reusable design supports flexible reconfiguration

H2 Why Choose Milton 2204‑2?

Milton Industries has been a pneumatic hardware leader since 1943. The Milton 2204‑2 ¼″ MNPT × ¼″ Push‑to‑Connect Swivel Branch Tee delivers reliable, reusable performance in compact fittings. Its swivel-functionality and box-of-10 value make it a smart choice for professional shops, industrial installations, or DIY pneumatic systems.
