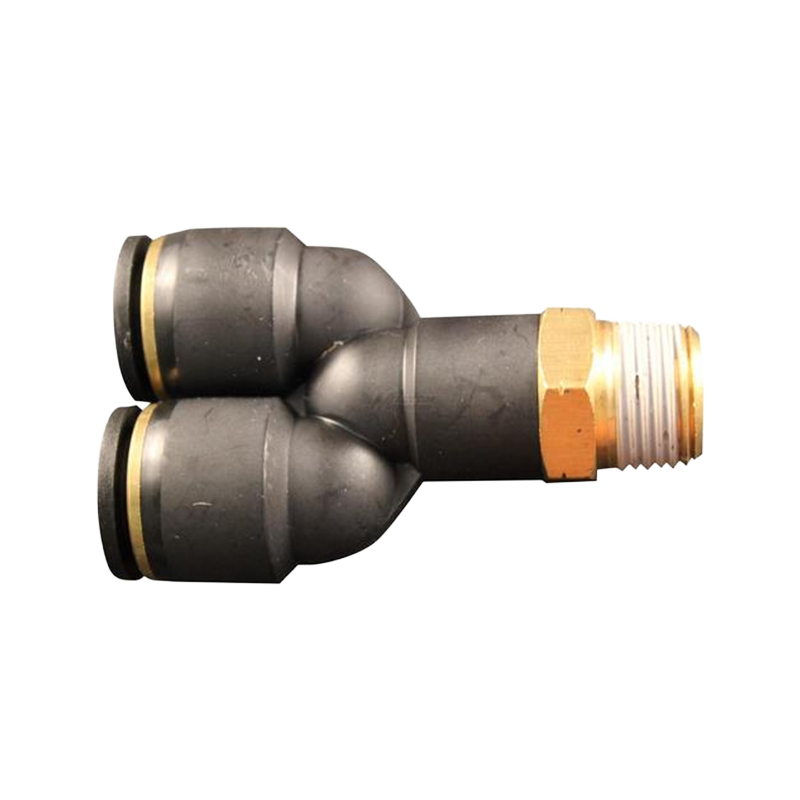

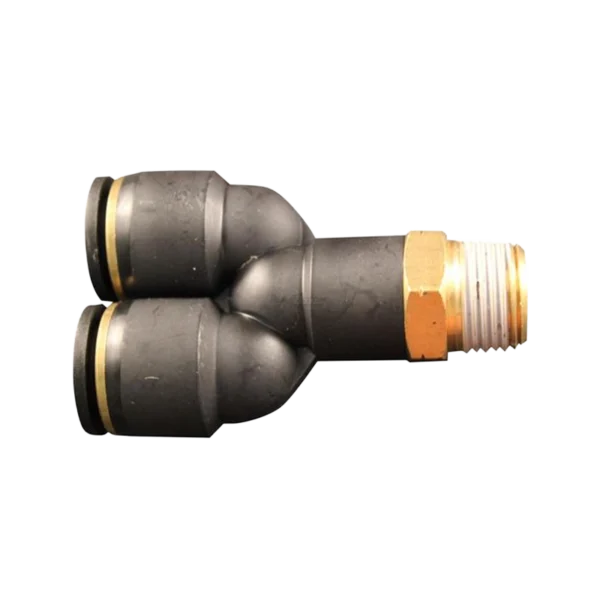

Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector (Box of 10) is a nylon, push‑to‑connect Y‑fitting with 150 psi rating and 360° swivel tubing ports—ideal for fast airflow splits.
Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector is a versatile pneumatic Y‑fitting tailored for swift airflow branching in industrial, workshop, or commercial compressed‑air systems. Packaged as a Box of 10, this Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector delivers tool‑free installation and reusable, leak-resistant connections that boost productivity and streamline system modifications.
This fitting mates a ¼″ MNPT male thread with two ⅜″ OD tubing ports, offering 360° swivel motion to prevent hose kinks and improve cabling flexibility. The Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector is rated for a maximum of 150 psi and is sealed internally with a Buna‑N O‑ring—ideal for general pneumatic setups where dependability matters.
Crafted from durable nylon, the Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector resists corrosion and wear, ensuring long-term use in harsh environments. The push‑to‑connect ports hold tubing firmly in place, while the reusable design allows quick disassembly—simply press the sleeve to release the hose.
¼″ MNPT male thread for secure manifold or port attachment
Twin ⅜″ OD tubing ports provide clean airflow split
360° swivel ports to eliminate stress and routing issues
Nylon body with Buna‑N seal, rated to 150 psi
Reusable design eases maintenance and reconfiguration
Box of 10 units, great value for installers and maintenance teams
| Specification | Details |
|---|---|
| Model | 2206‑7 |
| Thread | ¼″ MNPT male |
| Tubing Ports | 2 × ⅜″ OD push‑to‑connect |
| Self‑Described Diameter | ⅜″ OD tubing |
| Material | Nylon |
| Seal Type | Buna‑N |
| Maximum Pressure | 150 psi |
| Reusability | Yes, push-sleeve release |
| Swivel | 360° |
| Package Quantity | 10 per box |
| Dimensions (L×W×H) | Approx. 2.17″ × 1.38″ × 0.71″ |
| Weight | 0.09 lb each |
Use cases for the Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector include:
Splitting airflow to power two tools simultaneously
Branching compressed-air lines in manifolds, reels, and cabinets
Tool setups in auto shops, benches, or assembly lines
Pneumatic control systems in OEM equipment
Anywhere quick detach and flexible airflow are essential
Apply PTFE tape to the ¼″ MNPT thread before installation.
Hand-tighten into port, followed by a ¼-turn wrench snug.
Push ⅜″ OD tubing into both ports until a click is heard.
Rotate tubing to confirm swivel function.
To remove, depress the sleeve and slide the tubing out.
Inspect O-rings periodically; replace if leaking occurs.
Tool-free installation reduces setup time and tools needed
Swivel action prevents tubing fatigue and kinks
Durable nylon construction resists corrosion and wear
Reusable fittings save costs during reconfigurations
High-value packaging simplifies procurement and planning
Since 1943, Milton Industries has been synonymous with quality pneumatic fittings. The Milton 2206‑7 ¼″ MNPT × ⅜″ OD Swivel Y‑Connector combines economical packaging, user-friendly design, and rugged performance to support efficient and flexible pneumatic systems.
