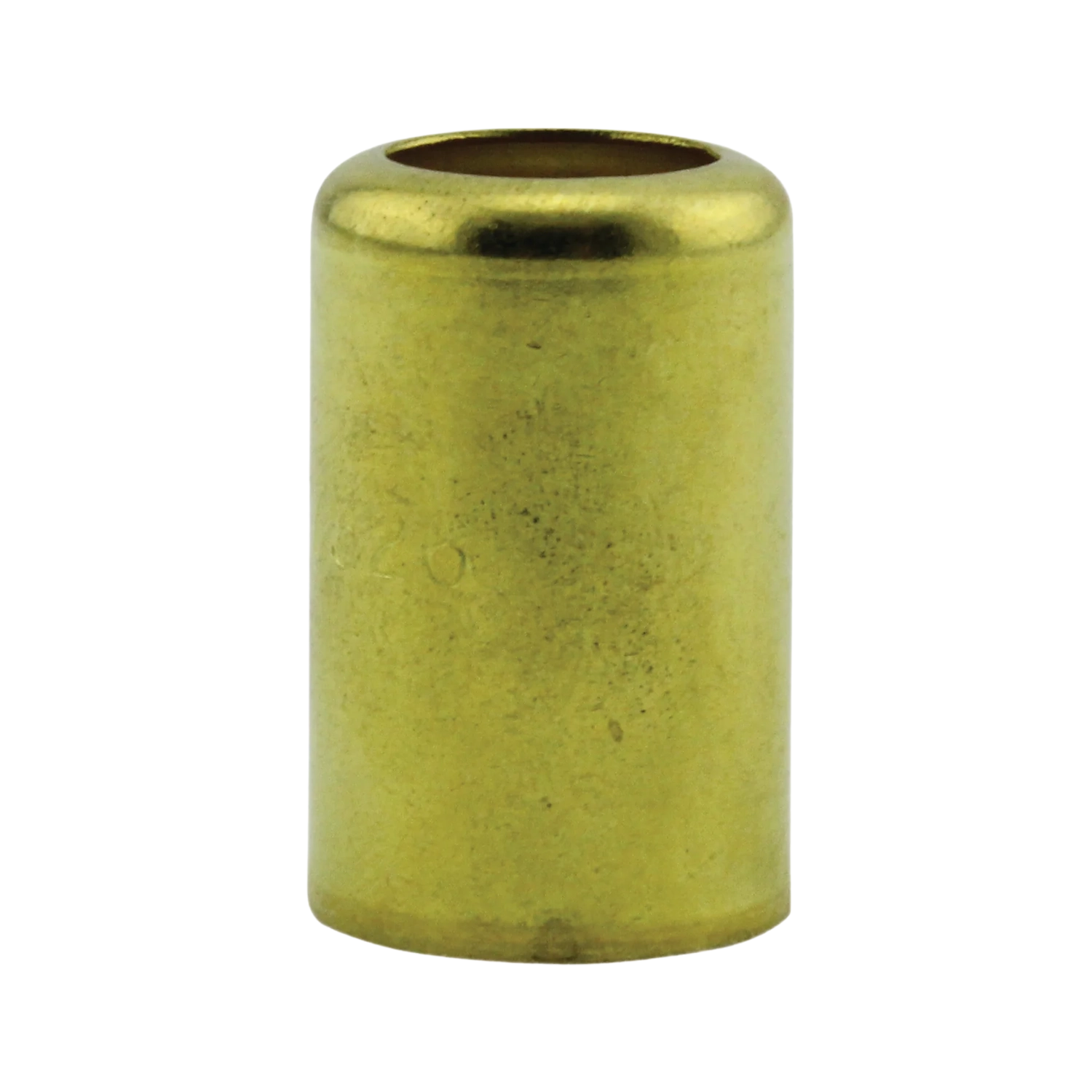

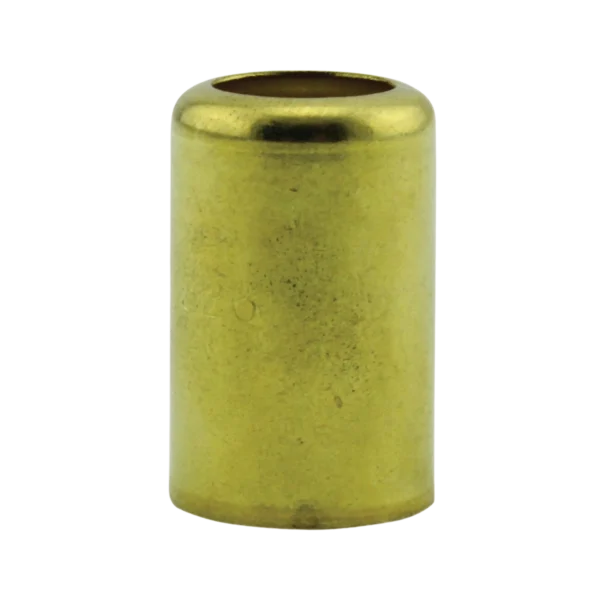

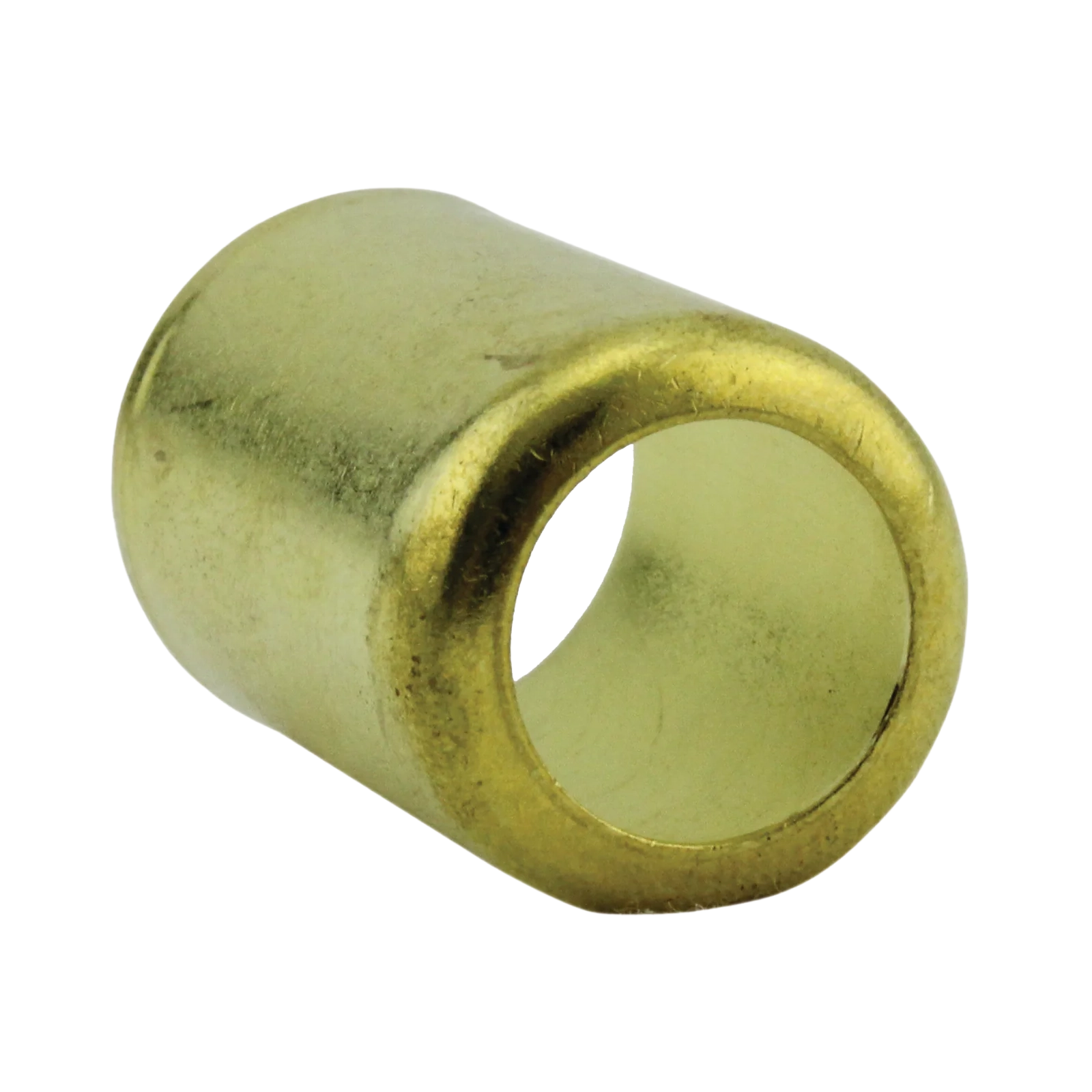

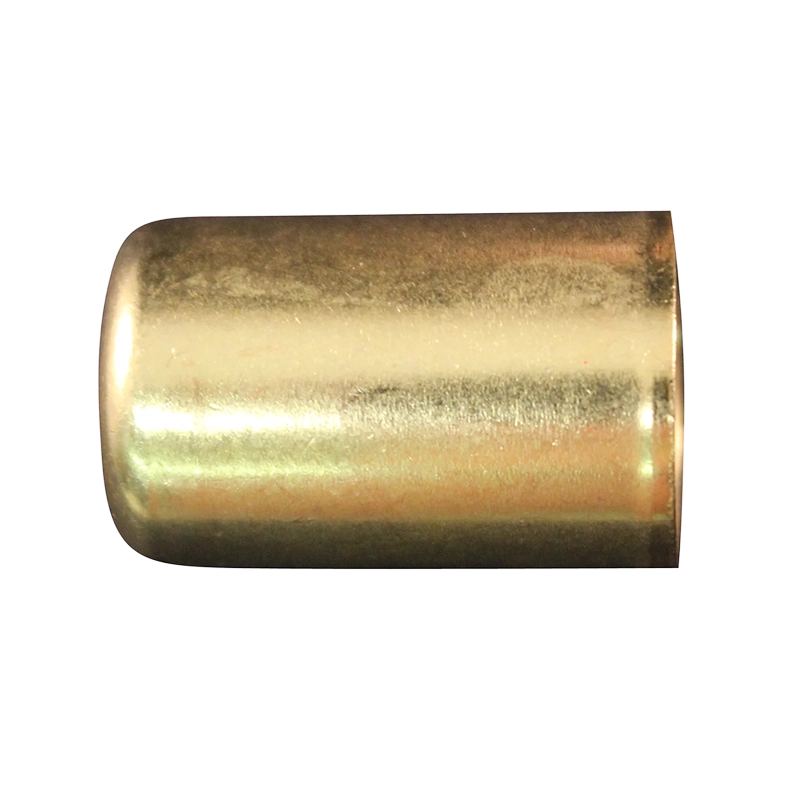

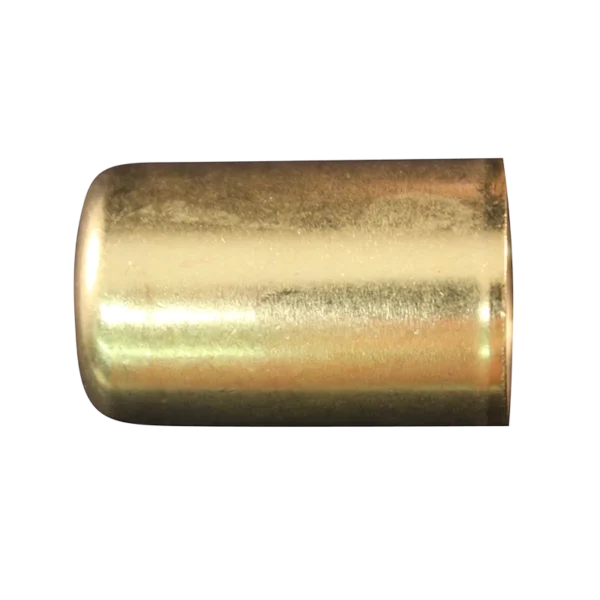

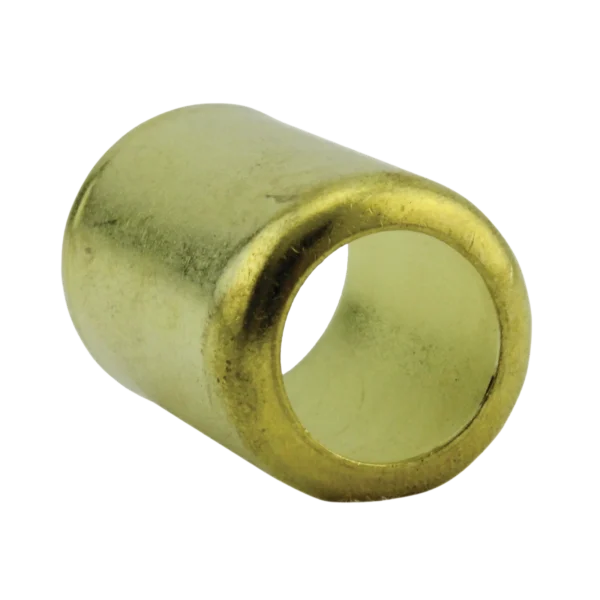

Milton ferrule connector 1654-4 – 19/32″

🔧 Overview of the Milton Ferrule Connector 1654-4

The Milton ferrule connector 1654-4 is a high-quality brass compression sleeve used for terminating 19/32″ pneumatic hoses with a secure crimp. Built for industrial use, it ensures tight, leak-free seals in air systems by forming a permanent connection over barbed hose ends.

Whether you’re assembling custom hoses or repairing damaged lines, this milton ferrule connector offers professional-grade performance and durability.

⚙️ Technical Specifications

• Model: 1654-4

• Ferrule Size: 19/32″ OD

• Material: Solid brass

• Application: Pneumatic hose termination

• Installation: Crimp-on (requires crimp tool)

• Compatibility: For use with MILTON hose barbs

• Reusability: Single-use (non-removable after crimping)

🧰 Common Applications

• Pneumatic air hose fabrication

• Hose end sealing in automotive shops

• Industrial compressed air lines

• OEM air system assembly

• Air tools and machine connections

💡 Key Benefits

• Permanent leak-proof seal

• Corrosion-resistant brass construction

• Professional finish for custom hoses

• High grip strength under pressure and vibration

• Easy to crimp using standard tools

🛠 Installation Tips

1. Cut the hose cleanly and square.

2. Slide the 1654-4 ferrule onto the hose.

3. Insert the hose barb fitting fully.

4. Move the ferrule into position over the barb.

5. Crimp the ferrule evenly with a crimping tool.

6. Test for air leakage after assembly.

The milton ferrule connector delivers excellent sealing results when installed correctly, ensuring system reliability and reducing maintenance needs.

🏆 Why Choose Milton?

With more than 75 years of experience, MILTON continues to lead in air system components. The 1654-4 brass ferrule is engineered to withstand high pressure and tough environments, making it a trusted choice for technicians and manufacturers.
