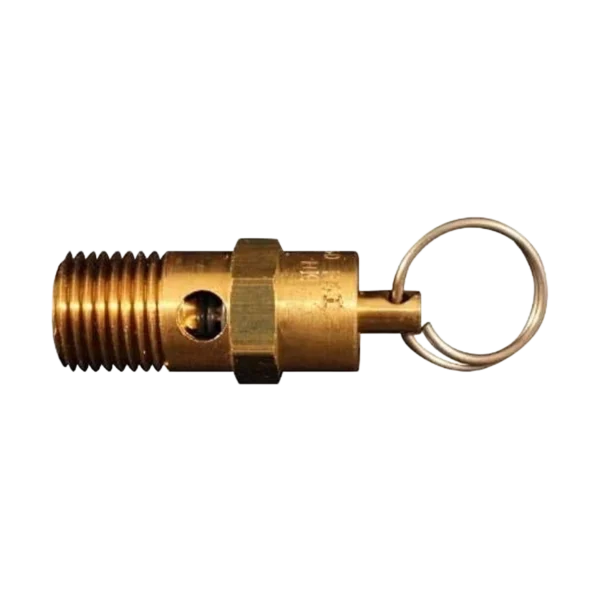

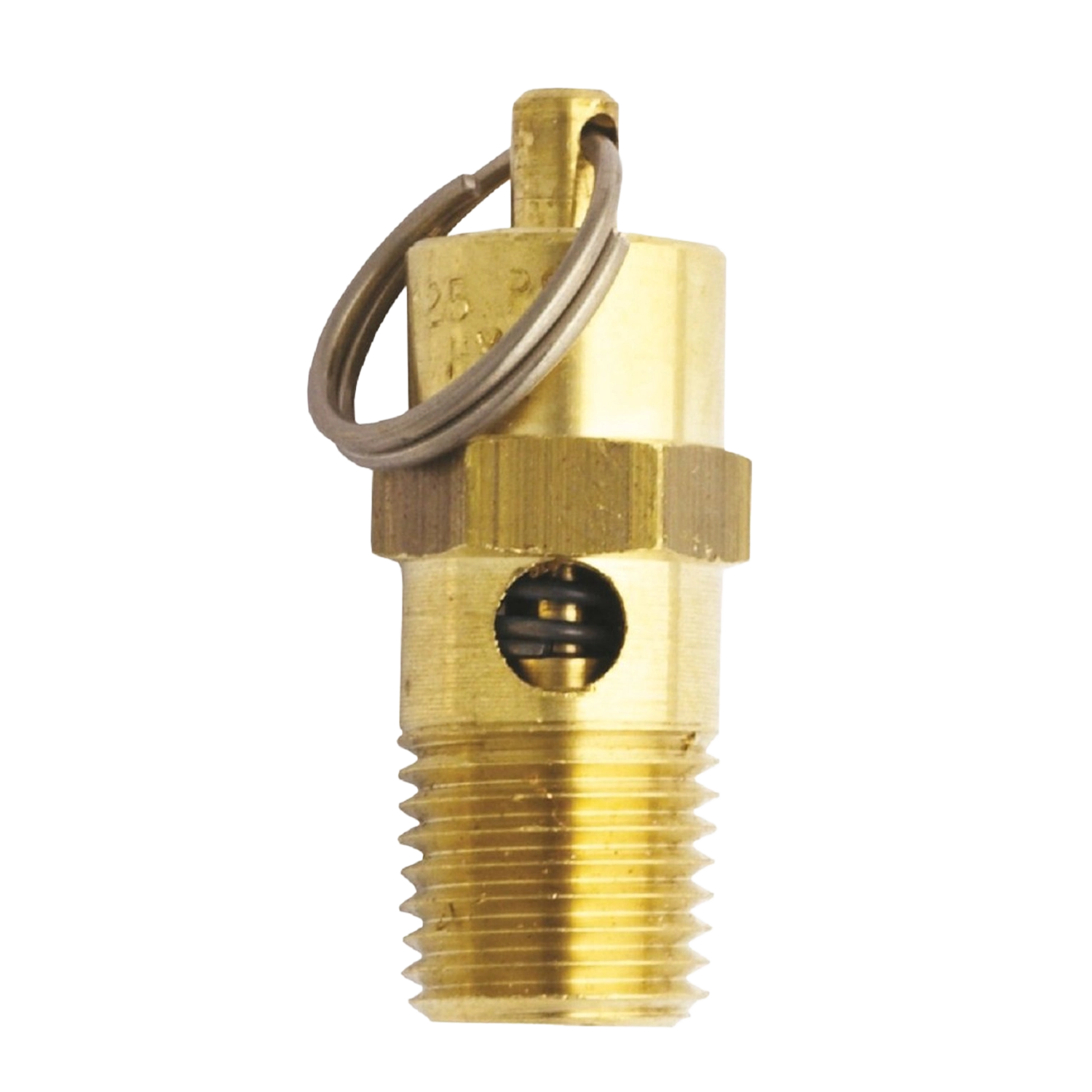

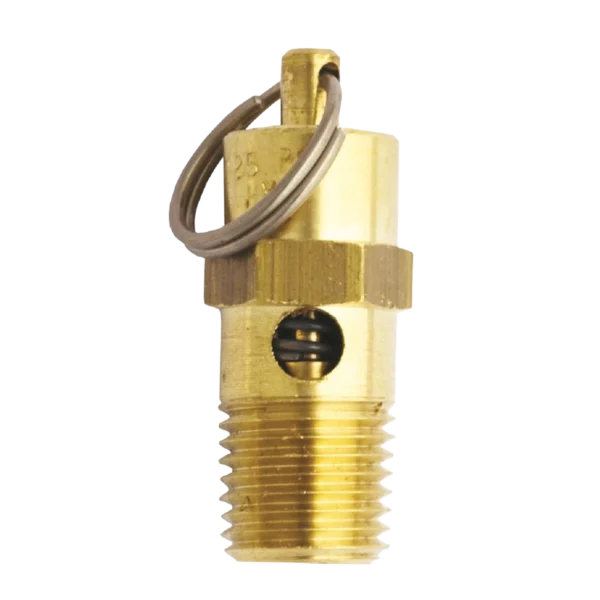

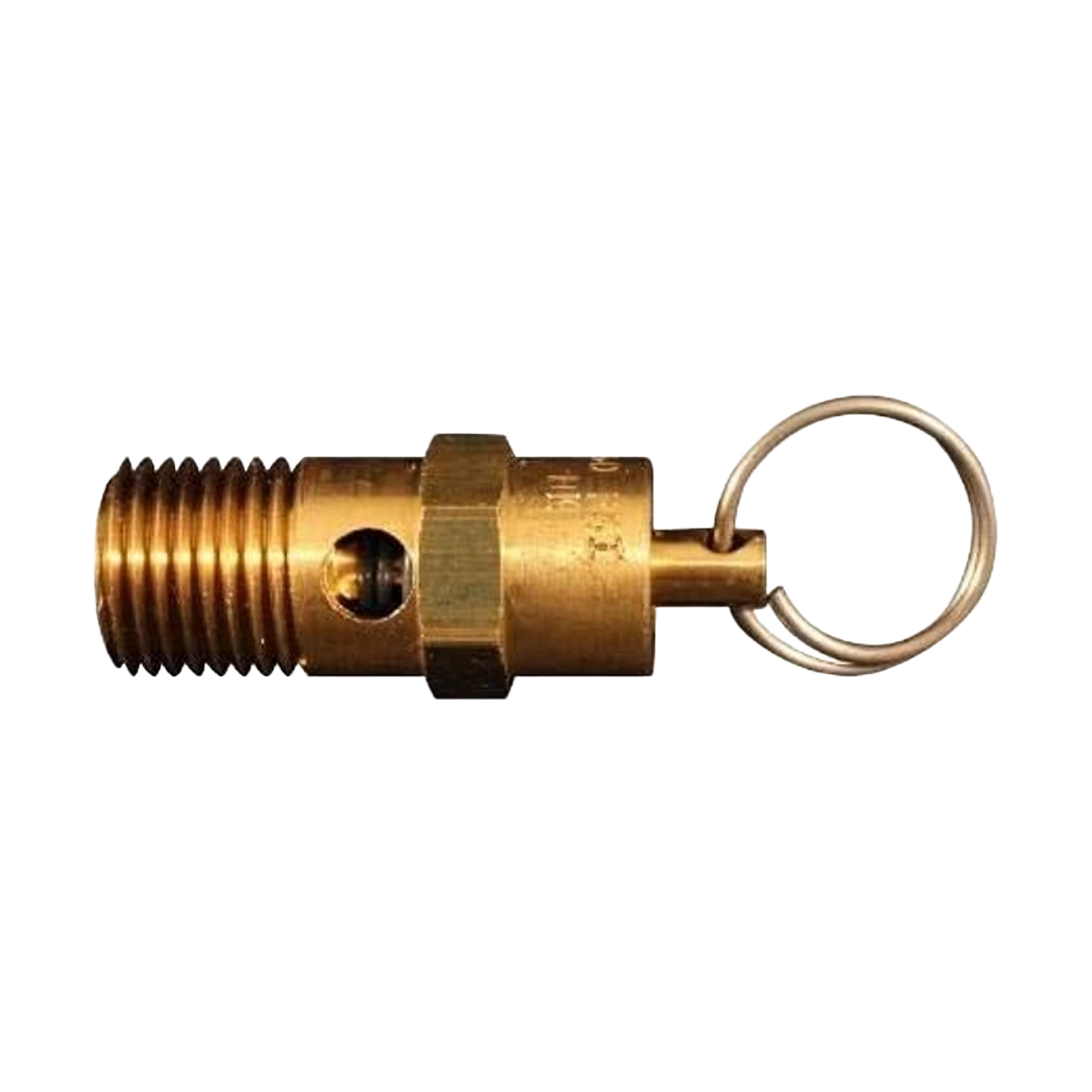

Milton safety valve 1095-125 relieves excess pressure at 125 PSI with a 1/4″ NPT male thread, protecting air systems from overpressure.
The Milton safety valve 1095-125 is a high-performance pressure relief valve designed for use in compressed air systems. With a preset release pressure of 125 PSI, this valve opens automatically to vent excess pressure, preventing potential damage to equipment and ensuring operator safety.
Featuring a 1/4″ male NPT thread, the milton safety valve easily integrates into air compressors, tanks, or piping systems where consistent pressure regulation is critical.
Model: 1095-125
Connection: 1/4″ NPT male
Pressure Setting: 125 PSI
Material: Brass body with stainless steel spring
Certification: ASME certified
Function: Pressure relief / safety
Brand: MILTON
Usage: Non-adjustable preset valve
This valve is factory-calibrated for immediate installation and consistent performance in pneumatic systems across industrial, automotive, and commercial sectors.
Air compressor pressure relief
Air receiver tanks
Pneumatic system overpressure protection
Industrial automation equipment
Safety regulation in plant air lines
Whether in standalone compressors or integrated air delivery systems, this milton safety valve ensures dependable overpressure protection.
Automatic pressure release: Prevents damage and overpressurization
Pre-calibrated at 125 PSI: No need for adjustment
Compact design: Fits tight spaces and small tanks
Durable materials: Brass and stainless steel for long life
ASME certification: Meets safety and quality standards
Confirm the system’s maximum pressure rating before installing.
Apply Teflon tape or thread sealant to the 1/4″ NPT male thread.
Thread the valve securely into the designated port on the tank or manifold.
Tighten using a wrench, avoiding overtightening.
Check for leaks and test under pressure.
Important: This milton safety valve is non-adjustable. Always ensure the pressure rating matches your system.
MILTON has over 75 years of experience delivering premium-quality pneumatic products. The 1095-125 safety valve is engineered to meet strict safety requirements, offering peace of mind and compliance with industry standards in every installation.
