Milton tubing elbow connector 2209-4 – 1/2″

🔧 Overview of the Milton Tubing Elbow Connector 2209-4

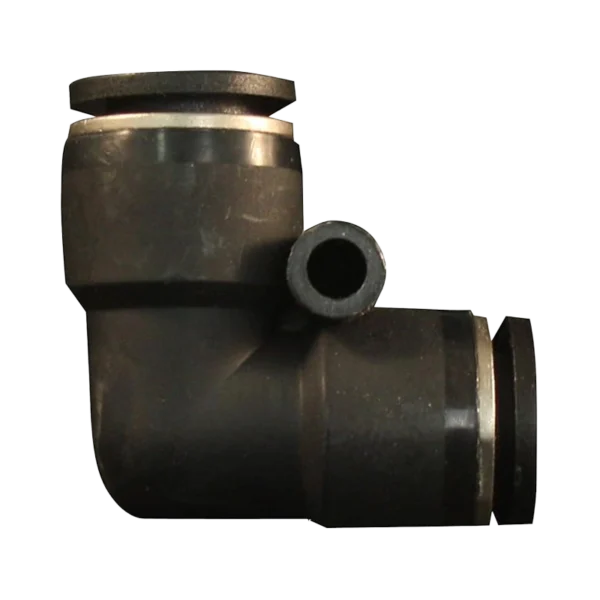

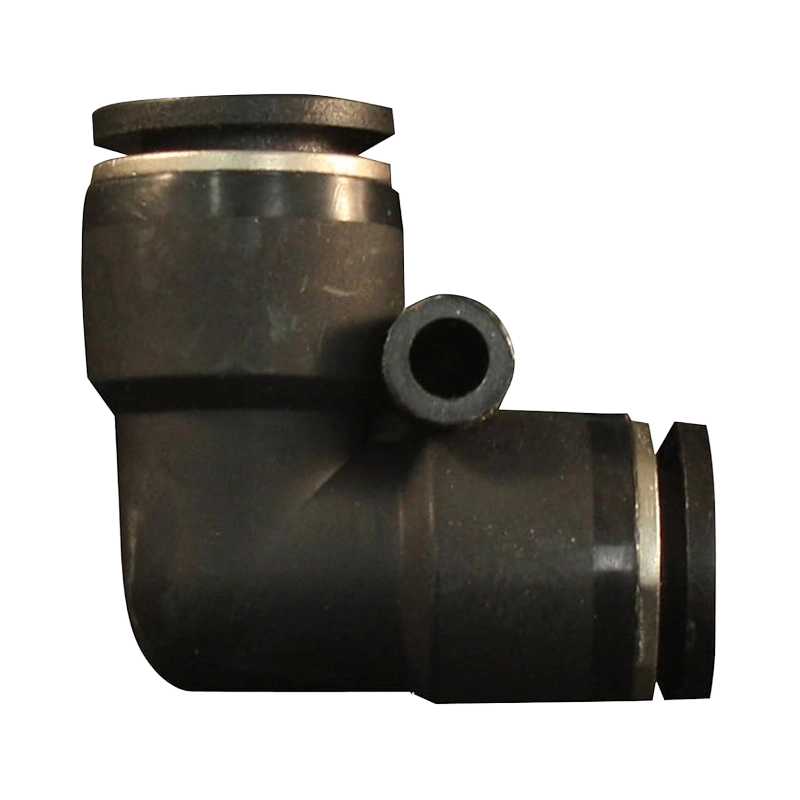

The Milton tubing elbow connector 2209-4 is a push-to-connect pneumatic elbow designed to quickly and securely join 1/2″ outer diameter (OD) tubing at a 90-degree angle. Ideal for compressed air systems that require compact, space-saving connections, this fitting allows clean directional changes without the need for special tools or clamps.

With its quick-connect mechanism, the milton tubing elbow connector streamlines air line installation and maintenance across a range of industrial and commercial setups.

⚙️ Technical Specifications

• Model: 2209-4

• Tube Connection: 1/2″ OD push-in

• Angle: 90° elbow

• Material: Composite body with brass insert

• Grip Mechanism: Stainless steel tube lock ring

• Working Pressure: Up to 150 PSI

• Operating Temperature: 32°F to 175°F

• Brand: MILTON

• Reusability: Yes (push-release design)

🧰 Common Applications

• Air compressor system tubing

• Pneumatic automation setups

• Custom air hose assemblies

• CNC machinery

• Manufacturing plants

• Vehicle service bays

This milton tubing elbow connector is often used to eliminate kinks and maintain uninterrupted airflow in installations where hose direction must shift in limited space.

💡 Key Features and Benefits

• Push-to-connect convenience: No clamps or tools required

• Compact 90° design: Perfect for space-constrained areas

• Leak-resistant seal: O-ring and locking teeth ensure airtight connection

• Reusable: Disconnect and reconnect without damage

• Durable materials: Brass, stainless steel, and composite body for longevity

🛠 Installation Guide

1. Cut the 1/2″ OD tubing cleanly and square.

2. Insert the tubing fully into the push-in port until it bottoms out.

3. Confirm the connection is tight and secure.

4. For disconnection, press the release ring while pulling the tubing out.

5. No additional tools or clamps required.

Using the Milton 2209-4 tubing elbow ensures that air systems stay neat, reliable, and easy to service.

🏆 Why Choose Milton?

MILTON is a global leader in pneumatic components. Their 2209-4 tubing elbow connector reflects a legacy of precision engineering and innovation trusted by technicians, mechanics, and manufacturers around the world.
