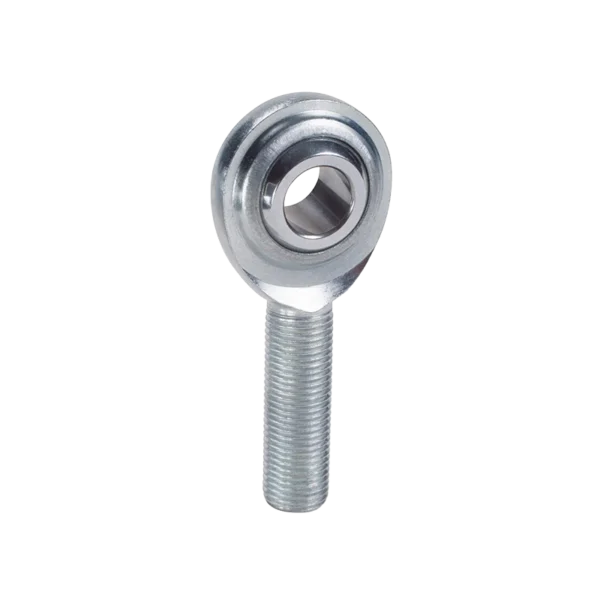

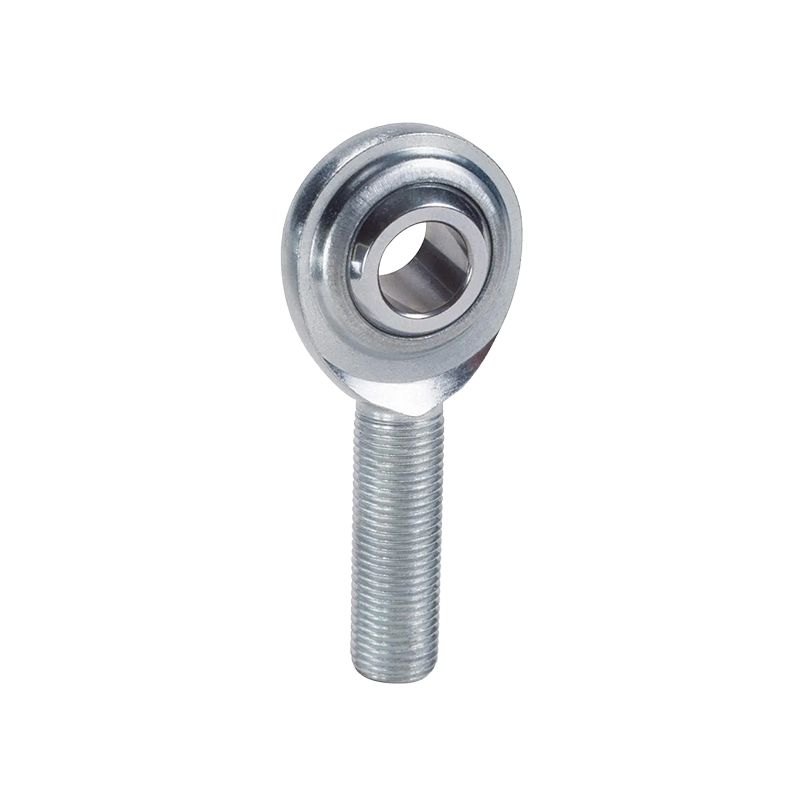

QA1 male rod end m5 x 0.8 spherical bearing right-hand thread

The QA1 male rod end M5 x 0.8 is a high-performance spherical bearing designed for demanding mechanical linkage applications. Featuring a right-hand thread and a compact 5 mm bore, it is ideal for use in precision equipment, small machinery, automotive linkages, robotics, and industrial automation systems.

🧱 Material & Construction

This rod end is built with 52100 heat-treated bearing steel, ensuring superior strength, wear resistance, and long-term performance. The body is zinc-plated for corrosion protection, making it suitable for both indoor and outdoor environments. The housing is engineered for consistent alignment under dynamic loads.

🔩 Key Specifications

• Brand: QA1

• Thread type: Right-hand

• Thread size: M5 x 0.8 mm

• Thread length: 15 mm

• Bore (eye) diameter: 5 mm

• Overall length: 38 mm

• Material – Housing: Zinc-coated steel

• Material – Ball: 52100 chrome steel, hardened and polished

• Finish: Zinc plated

• Thread direction: Right-hand

• Load capacity: Designed for low-to-medium mechanical loads

• Application temperature range: -50°C to +120°C

🧰 Applications

This QA1 rod end is commonly used in:

• Linkage assemblies for small engines

• Pneumatic and hydraulic actuators

• Robotics and CNC machinery

• Mechanical control systems

• Steering components in lightweight vehicles

📦 Packaging

The unit is supplied as 1 single rod end in a sealed industrial pack. Bulk orders are available for OEM and high-volume clients.

🌎 Availability

This product is available for nationwide delivery and can also be acquired through the PunchOut of All Parts Master / Nacional Eléctrica Ferretera for Aptiv.

🧭 Suggested Category

Bearings & Linkages > Rod Ends
