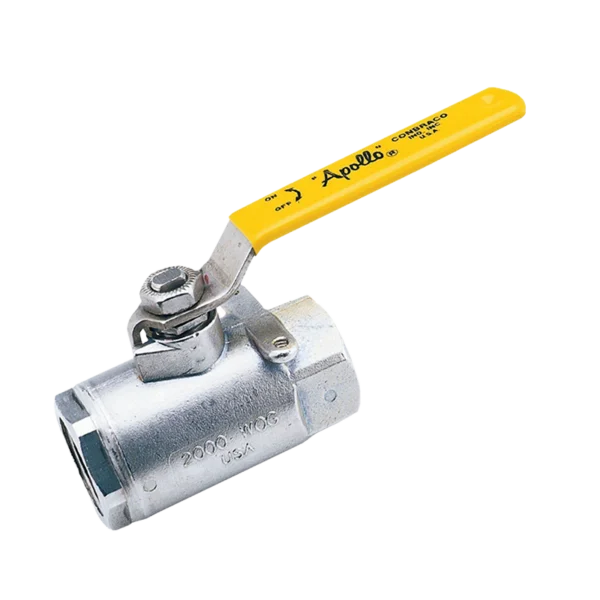

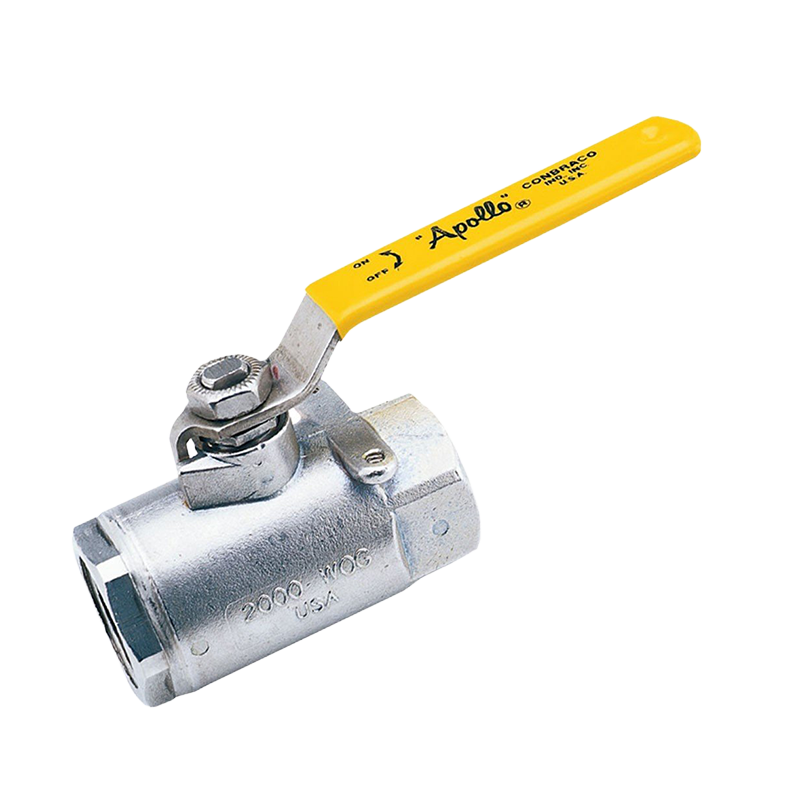

Apollo 2000 lb stainless ball valve – 1/4″ FNPT threaded 316 SS valve rated for 2000 psi CWP, 150 psi SWP, with lever handle.
The Apollo 2000 lb stainless ball valve model 76‑101‑01A is a high-performance 316 stainless steel, two-piece, standard-port valve built for demanding applications. Rated at 2000 psi Cold Working Pressure (CWP) and 150 psi Saturated Working Pressure (SWP), it’s ideal for industrial, chemical, and water systems requiring dependable flow control and corrosion resistance.
This ball valve features investment-cast ASTM A351 CF8M stainless steel body, 316 stainless ball, and stem—all offering exceptional longevity and corrosion resistance. The PTFE seats and packing ensure sealing integrity, while a blow-out-proof stem provides safety. This valve complies with MSS-SP-110, NACE MR0175/0103, NSF-61, NSF-372, and Lead-Free standards.
| Feature | Specification |
|---|---|
| Size | 1/4″ FNPT |
| CWP / SWP | 2000 psi CWP / 150 psi SWP |
| Material | ASTM A351-CF8M body, 316 ball & stem, PTFE seats |
| Port style | Standard port |
| Handle | SS lever with vinyl grip |
| Vacuum rating | Down to 29 in Hg |
| Certifications | MSS-SP-110, NACE, NSF, Lead-Free |
| Dimensions | Inlet-outlet: 2.05 in; Center-height: 1.71 in |
| Weight | ~0.65 lb (0.30 kg) |
Ideal for:
Chemical & plating systems
Industrial water and process lines
Food and beverage with NSF compliance
Corrosive environments needing 316 SS durability
OEM equipment and instrumentation
Its high pressure rating and stainless construction make it suitable for critical applications.
Thread connections require PTFE tape or compound. Ensure handle clearance for 90° rotation. Periodic torque check on packing gland recommended to maintain sealing.
