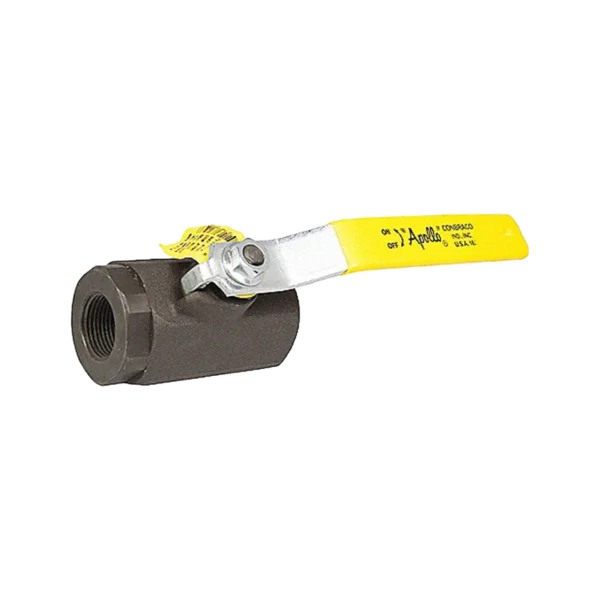

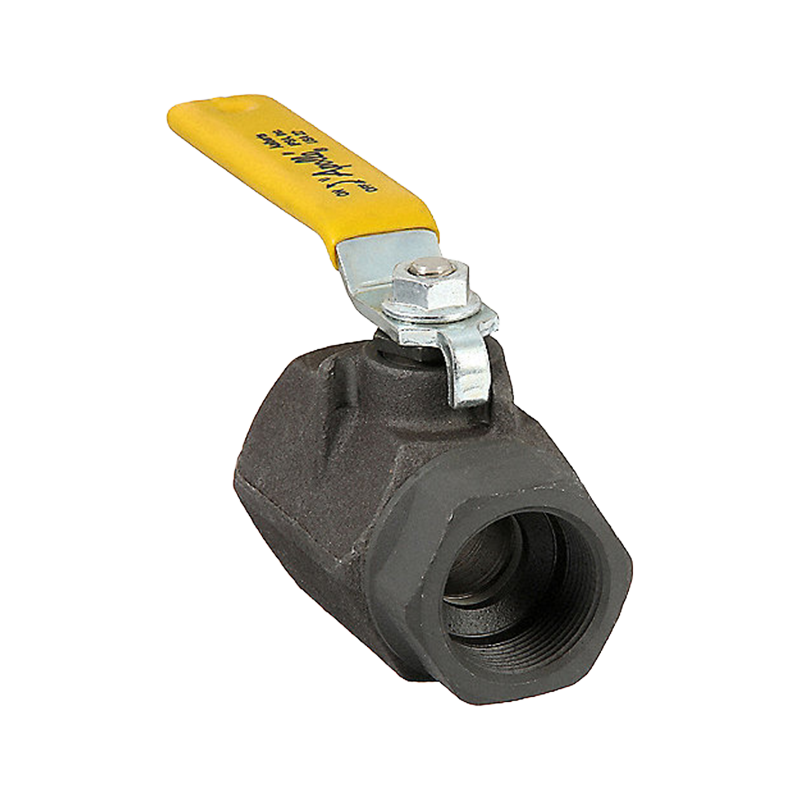

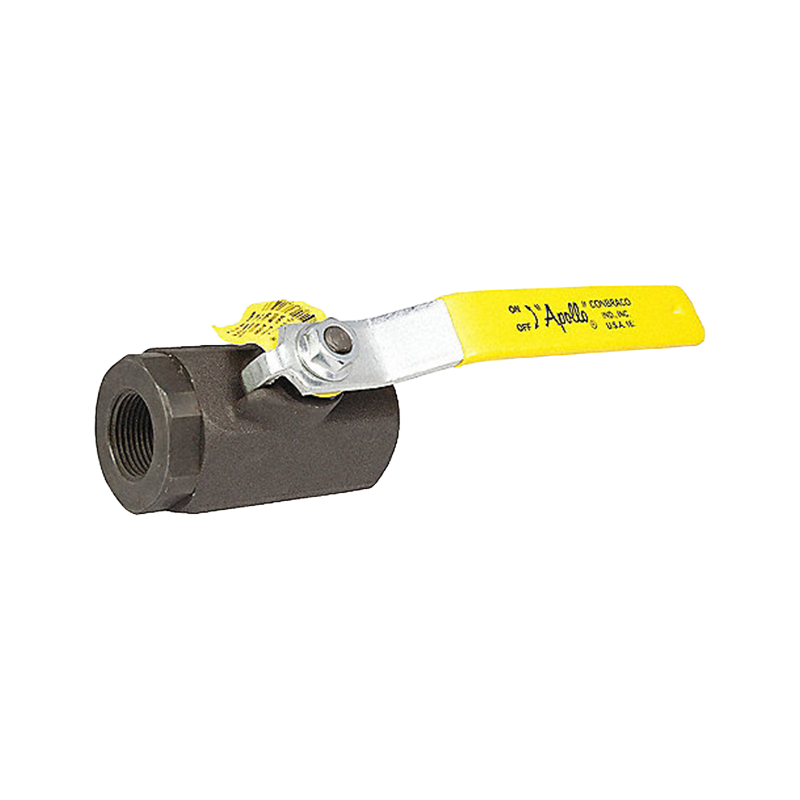

Apollo 3000 lb ball valve 1‑1/2″ 72‑107‑01A

Apollo 3000 lb ball valve – rugged industrial-grade control

The Apollo 3000 lb ball valve model 72‑107‑01A is a high-performance, 1‑1/2″ full-port valve designed to deliver reliable control in demanding industrial environments. Manufactured from carbon steel and featuring FNPT threaded connections, it withstands up to 3000 psi Cold Working Pressure (CWP) and 150 psi Saturated Working Pressure (SWP), with a maximum temperature rating of 600 °F.

High-pressure reliability

This valve is part of Apollo’s 72-100-A series, engineered for extreme conditions such as high-pressure systems, steam, and thermal applications. The full-port design ensures minimal pressure drop and high flow capacity, making it suited for systems requiring unrestricted flow.

Durable construction

• Body: Carbon steel forged design, ensuring strength under pressure

• Ball: Chrome-plated carbon steel for wear resistance

• Seats and packing: RPTFE/MPTFE for temperature and chemical stability

• Stem: Blow-out proof, with adjustable packing gland

• Finish: Zinc-phosphate anticorrosion coating

• Actuator: Heavy-duty lever handle

• Fire-safe upgrade: Optionally available with graphite packing when specified

Performance specifications

Ideal applications

• High-pressure water and oil systems

• Steam, condensate, and HVAC systems

• Industrial pipelines in chemical plants, refineries, and power generation

• Systems requiring fire-safe certification and high-temperature operation

Installation and operation tips

• Ensure tapered pipe threads are properly sealed with PTFE tape or compound

• Leave sufficient clearance for the handle to rotate freely

• Install the valve in the correct orientation (flow indicated by handle direction)

• Periodically verify the torque on packing gland to prevent leaks

Why choose the Apollo 72‑107‑01A?

Apollo valves are recognized for their reliability and rugged construction. This model delivers:

• 🚀 High-pressure performance (3000 psi rating)

• Fire-safe option for enhanced system protection

• Zero-bleed, full-port flow for maximum efficiency

• Durable materials suited to harsh industrial conditions

It’s covered by a 5‑year warranty and meets standards like MSS SP‑110 and ASTM A105 for cast steel valves.
