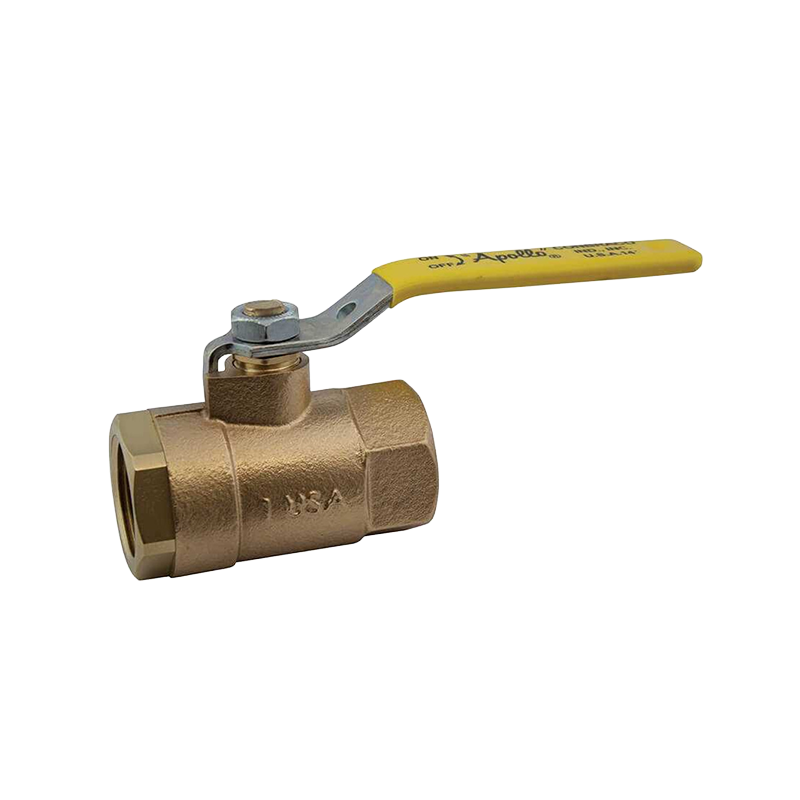

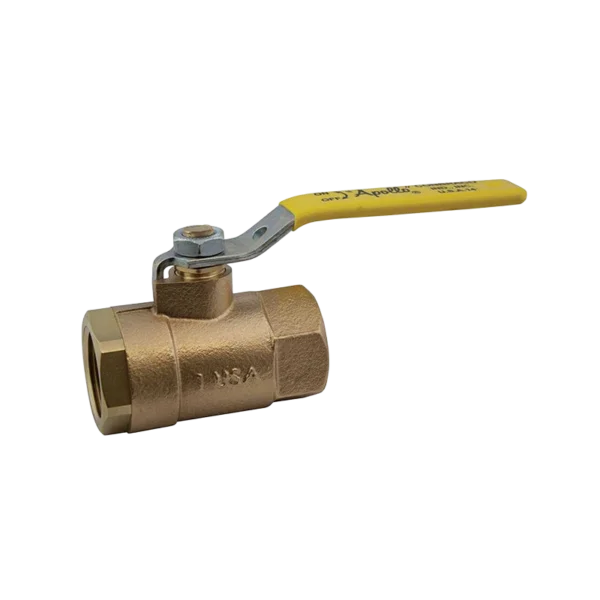

Apollo 32‑101‑01 ball valve provides 400 psi bronze strength and precise flow control in a compact 1/4″ design.
Apollo 32‑101‑01 ball valve is a compact yet powerful solution engineered for industrial-flow control in tight spaces. Crafted with an ASTM-grade cast bronze body and reduced-port design, it offers dependable operation at pressures up to 400 psi (CWP) and 125 psi steam (SWP), making it ideal for fluid, gas, and steam applications.
ASTM-grade bronze body with reduced-port design for compact installation and robust performance
Chrome-plated brass ball combined with PTFE seats for smooth, leak-resistant operation
Blow-out‑proof stem and adjustable packing gland for operator safety
Manual lever handle made of durable steel for quick and reliable actuation
Rated for 400 psi cold working pressure and up to 125 psi saturated steam
| Specification | Details |
|---|---|
| Body Material | ASTM-grade cast bronze |
| Ball Material | Chrome-plated brass |
| Seat Material | PTFE |
| Stem Packing | Reinforced PTFE (MPTFE) |
| Connection Type | 1/4″ NPT female threaded |
| Port Type | Reduced port |
| Max CWP | 400 psi |
| Max SWP | 125 psi (saturated steam) |
| Temperature Range | Up to 400 °F |
| Flow Coefficient (Cv) | Compact size, approx. ~5–7 (est.) |
| Safety Features | Blow-out stem, packing gland |
| Handle | Steel lever |
| Dimensions (L×W×H) | 0.80″ × 0.37″ × 1.60″ |
| Weight | 1.00 lb (approx.) |
Industrial water and gas shutoff in small-diameter piping
Steam systems requiring compact valves with 125 psi SWP
HVAC, OEM equipment, and process control systems
Pneumatic lines and fluid sampling systems
Clean and seal mating threads with PTFE tape to prevent leaks.
Tighten evenly to avoid strain on valve body.
Operate the lever fully open or closed (90° movement) for best seal.
Slowly open for steam service to prevent water hammer.
Regularly inspect packing gland and adjust if minor leaks occur.
Space-saving design: Reduced-port body fits compact systems.
High pressure tolerance: 400 psi liquid and 125 psi steam ratings ensure versatility.
Reliable sealing: PTFE seats, chrome-plated ball, and reinforced stem offer leak resistance.
Safety engineered: Blow-out proof stem protects operators under pressure.
Made in USA: Manufactured by Apollo/Conbraco for consistent quality and supply
