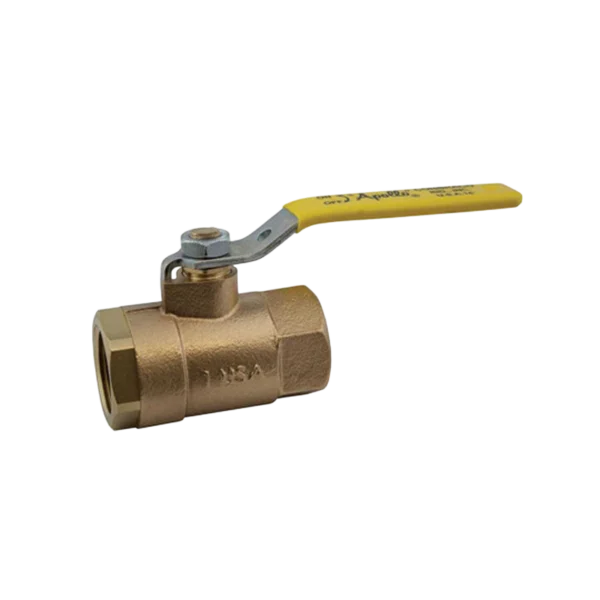

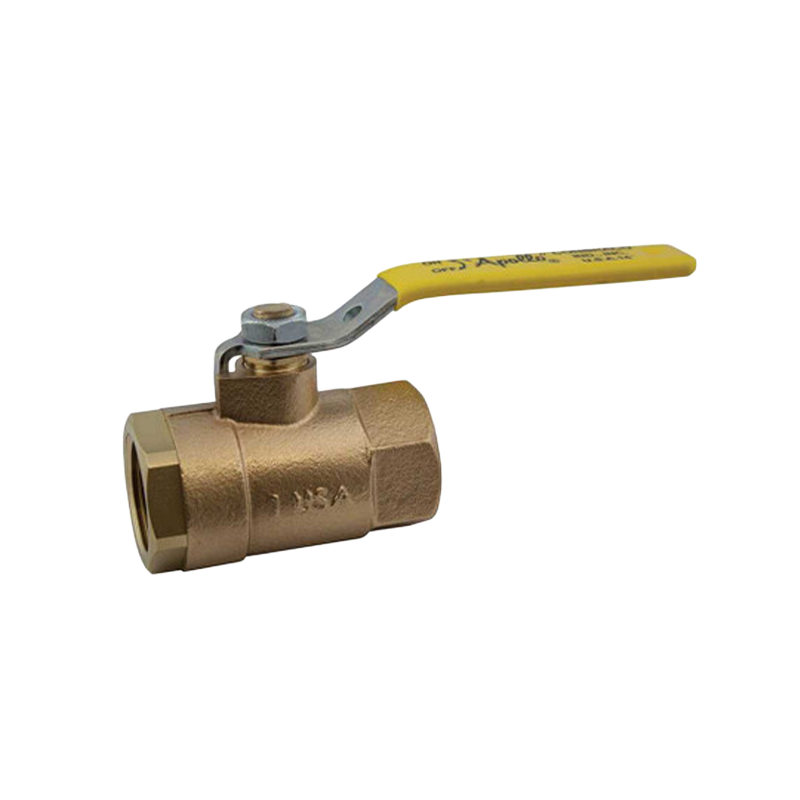

Apollo 32‑104‑01 ball valve offers 400 psi bronze durability and precise flow control with a manual lever.
Apollo 32‑104‑01 ball valve is a rugged, reliable solution designed for industrial and commercial fluid control applications. Built with a cast bronze body and a chrome-plated brass ball, this valve ensures long-lasting performance in demanding environments.
ASTM‑grade bronze body for corrosion resistance and durability
Chrome‑plated brass ball with PTFE seats for smooth, leak-free operation
Manual lever handle: zinc-plated steel with vinyl sleeve for ergonomic operation
Blow-out–proof stem and adjustable packing gland for added safety
Rated for 400 psi cold working pressure (CWP) and 125 psi steam working pressure (SWP)
| Specification | Details |
|---|---|
| Body Material | Bronze |
| Ball Material | Chrome-plated brass |
| Seat Material | PTFE |
| Stem Packing | RPTFE (reinforced PTFE) |
| Connection Type | 3/4″ NPT female threaded |
| Port Type | Regular port |
| Max CWP | 400 psi |
| Max SWP | 125 psi (steam) |
| Temperature Range | Up to 400 °F |
| Flow Coefficient (Cv) | ~24 |
| Handle | Zinc-plated steel with vinyl grip |
| Stem Safety | Blow-out proof, packing gland |
| Weight | 0.72 lb |
Industrial water and gas shut-off systems
Steam lines requiring 125 psi SWP
HVAC and plumbing installations
Food, beverage, and process piping (medically clean)
OEM equipment and system retrofits
Ensure mating threads are clean and properly sealed with PTFE tape.
Torque valve into line evenly—avoid over-tightening.
Operate handle 90° open‑to‑close to ensure full functionality.
For steam service, slow initial opening prevents water hammer.
Inspect periodically for leaks—re-tighten gland nut if needed.
Proven durability: ASTM-defined bronze body and chrome ball ensure long service life.
High-performance seals: PTFE and RPTFE components deliver reliable leak protection.
Safety design: Blow‑out stem and packing gland safeguard operators and systems.
Versatile pressure ratings: 400 psi for liquids and 125 psi for steam covers most industrial needs.
Made in the USA: Built by Apollo/Conbraco for assured quality
