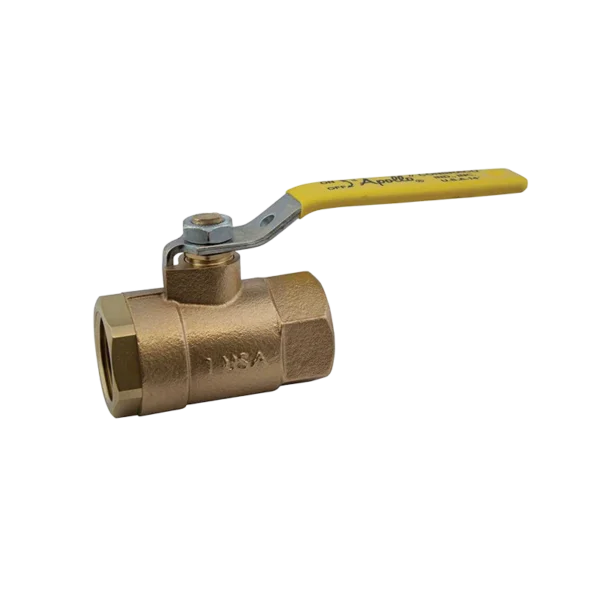

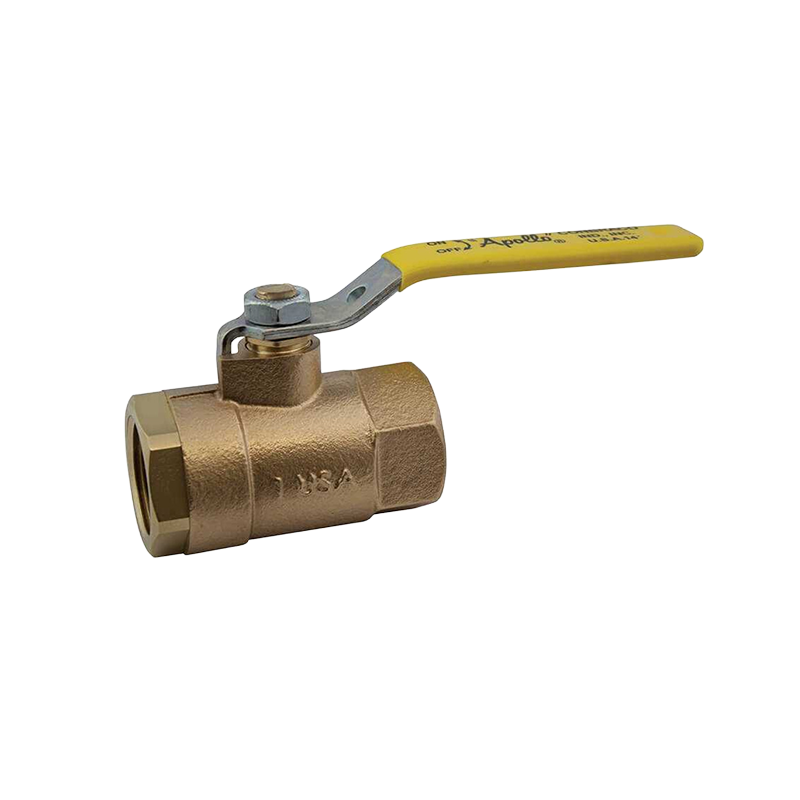

Apollo 32‑106‑01 ball valve delivers 400 psi bronze strength with a compact reduced-port 1¼″ design.
Apollo 32‑106‑01 ball valve is a robust and efficient solution designed for industrial fluid, gas, and steam applications. Engineered with an ASTM‑grade cast bronze body and reduced-port configuration, this valve provides reliable performance in tight installations at pressures up to 400 psi (CWP) and 125 psi saturated steam (SWP).
ASTM-grade bronze body with reduced-port design for easier installation in compact systems
Chrome-plated brass ball and PTFE seats ensure smooth, leak-resistant operation
Blow-out-proof stem and adjustable packing gland enhance safety and maintainability
Manual steel lever handle offers quick and reliable quarter-turn actuation
| Specification | Details |
|---|---|
| Body Material | Bronze |
| Ball Material | Chrome-plated brass |
| Seat Material | PTFE |
| Stem Packing | Reinforced PTFE (RPTFE) |
| Connection Type | 1¼″ NPT female threaded |
| Port Type | Reduced |
| Max CWP | 400 psi |
| Max SWP | 125 psi (saturated steam) |
| Temperature Range | Up to 400 °F |
| Safety Features | Blow-out-proof stem, adjustable packing gland |
| Handle | Steel lever |
| Dimensions (L×W×H) | 1.00″ × 1.72″ × 3.44″ (A, B, C) |
| Weight | ~2.6 lb |
Industrial water, gas, and fluid control lines
Steam systems up to 125 psi SWP
HVAC systems requiring compact valve installation
OEM equipment and process control systems
Clean and seal threads with PTFE tape to prevent leaks.
Thread evenly—avoid excessive torque to preserve body integrity.
Use full 90° lever movement for open/close positioning.
For steam, open gradually to prevent water hammer.
Inspect and tighten packing gland periodically to maintain seal.
Compact design: Reduced-port body saves space while delivering 400 psi flow capability.
Durable construction: Bronze body and chrome-plated ball offer long-term corrosion resistance.
Reliable sealing: PTFE seats and RPTFE packing resist wear and leaks.
Safety focused: Blow-out-proof stem design protects both operators and system integrity.
Made in USA: Constructed by Apollo/Conbraco for industrial-grade performance.
