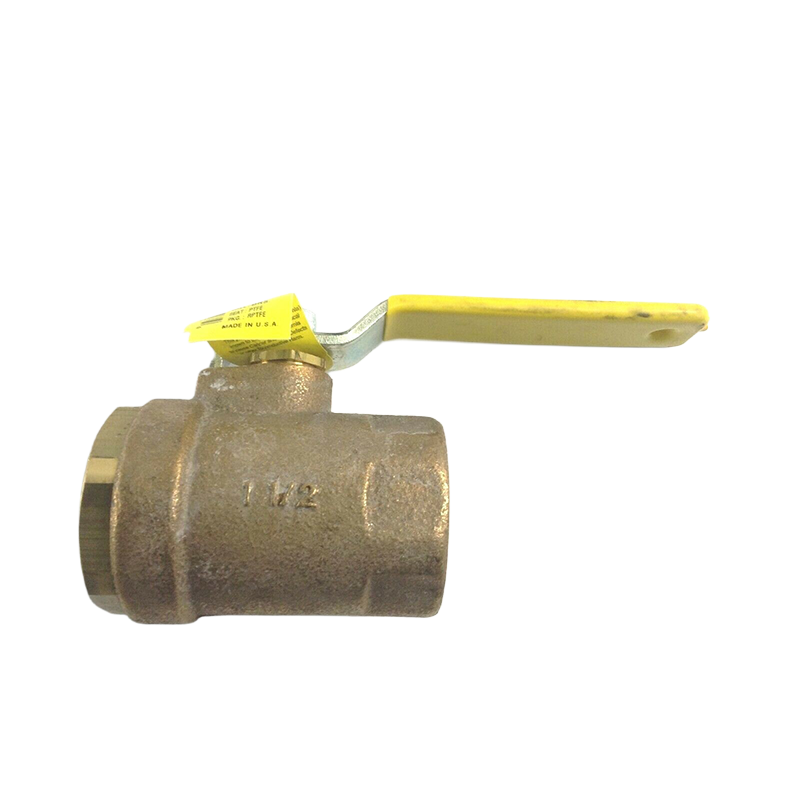

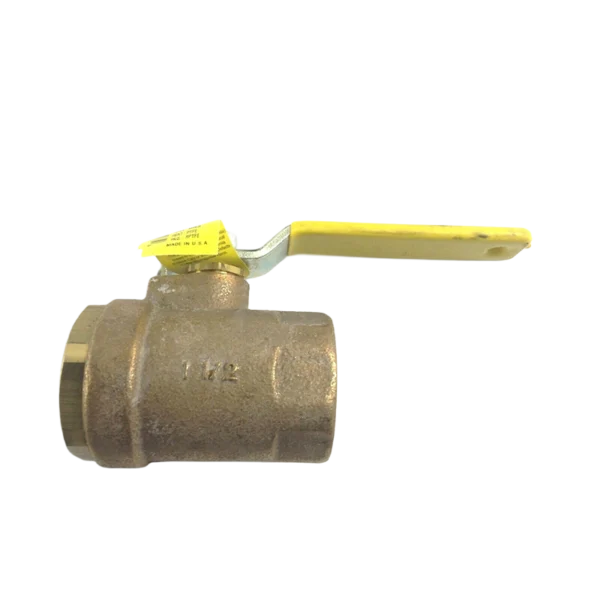

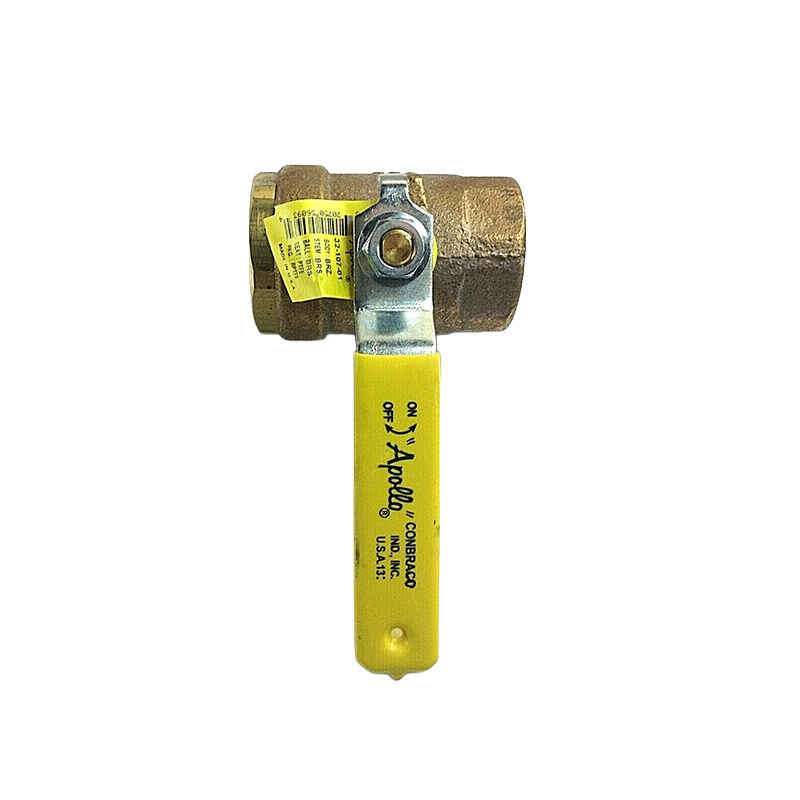

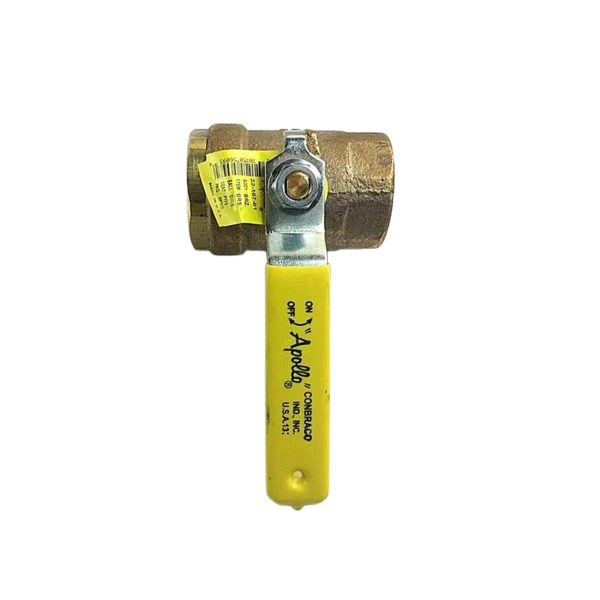

Apollo 32‑107‑01 1½″ 400 lb Bronze Ball Valve is a full‑flow, lever‑operated valve with 400 psi pressure rating, PTFE seals, and blow‑out proof stem—built for industrial use.
Apollo 32‑107‑01 1½″ 400 lb Bronze Ball Valve is a high-performance bronze ball valve engineered to handle demanding industrial and commercial fluid control applications. The Apollo 32‑107‑01 1½″ 400 lb Bronze Ball Valve features robust bronze construction, blow-out proof stem design, PTFE seats, and adjustable packing, providing excellent reliability and longevity. Built to accommodate 1½″ FNPT piping, it’s rated at 400 psi Cold Working Pressure (CWP) in non-shock conditions and 125 psi saturated steam capacity.
This valve addresses a wide range of applications—including potable water, heating, cooling, irrigation systems, and general process use—thanks to its durable materials and high pressure rating. Engineered by Apollo, a trusted brand under Conbraco Industries, the Apollo 32‑107‑01 1½″ 400 lb Bronze Ball Valve integrates performance and safety in one package.
1½″ female NPT ports ensure secure threaded connections
Bronze body resists corrosion in water and steam systems
PTFE seats and seal ring offer low torque and tight shutoff
Blow‑out proof stem and adjustable packing gland enhance safety and leak-proof reliability
Pressure rating: 400 psi CWP (non-shock), 125 psi saturated steam
| Specification | Details |
|---|---|
| Model | 32‑107‑01 |
| Size | 1½″ FNPT |
| Body Material | Bronze |
| End Connections | Female NPT (National Pipe Thread) |
| Seat Material | PTFE (Teflon) |
| Pressure Rating | 400 psi CWP (non-shock), 125 psi steam |
| Temperature Rating | Standard per PTFE seat limits |
| Stem | Blow‑out proof |
| Packing | Adjustable gland |
| Valve Type | 2‑piece, regular port |
| Weight | ~5.0 lb* (estimation) |
| Origin | USA (Conbraco/Apollo brand) |
*Note: Approximate weight based on typical bronze valve density.
Ideal for:
Residential & commercial water supply systems
Hydronic heating and cooling
Irrigation and agricultural use
Steam lines and condensate systems (up to 125 psi)
General industrial fluid systems requiring robust performance
Apply PTFE tape or thread sealant to female threads.
Thread into piping until snug and aligned.
Operate handle fully open and closed to seat ball.
Monitor packing gland; adjust if minor leaks appear.
For steam systems, confirm temperature compatibility.
High-pressure capability offers reliability in demanding use
Durable bronze construction ensures longevity in harsh environments
Low torque PTFE seats enable easy manual operation
Enhanced safety via blow-out proof stem and sealing gland
Versatile use across water, steam, and general piping systems
Apollo Valves, part of Conbraco Industries, has led valve innovation since 1965. The Apollo 32‑107‑01 1½″ 400 lb Bronze Ball Valve delivers trusted performance, combining safety, durability, and certified pressure ratings. Its stem retention, PTFE sealing, and bronze build make it a top choice for skilled plumbers, HVAC professionals, and industry installers.
