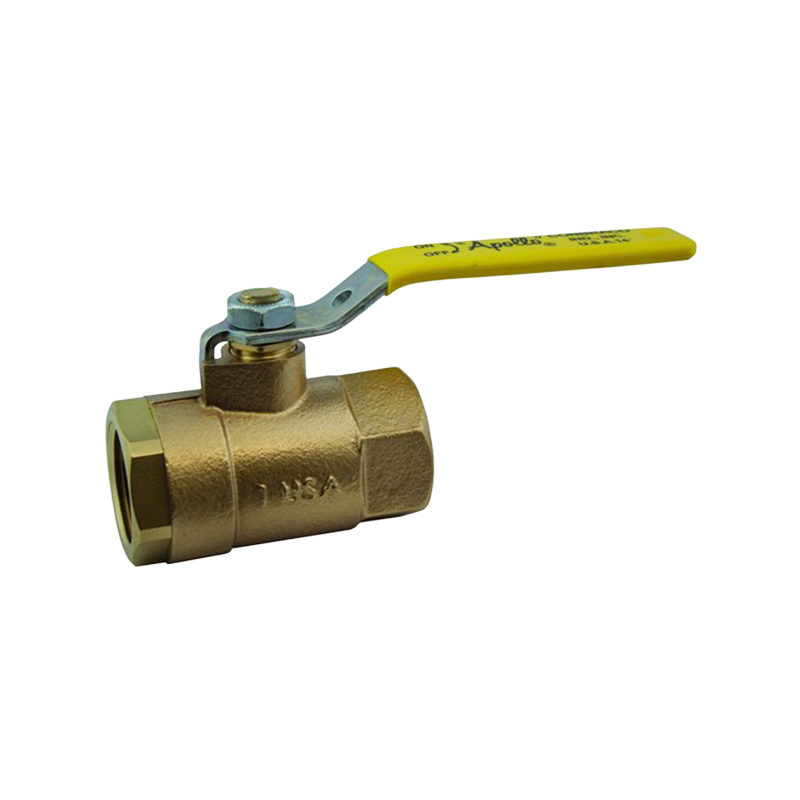

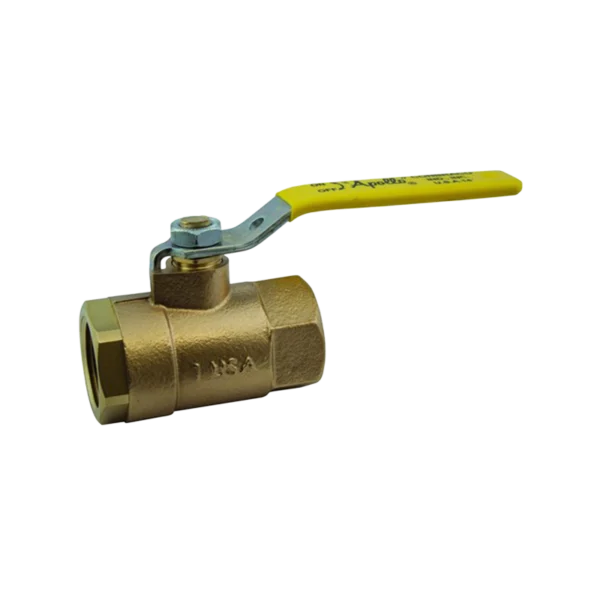

Apollo 32‑108‑01 bronze ball valve 2 400 psi – reduced port, FNPT threaded, manual lever, hardy bronze body valve rated for industrial fluid control.
Apollo 32‑108‑01 bronze ball valve 2 400 psi is a heavy-duty, compact valve designed for reliable fluid control in water, oil, gas, and steam systems. Built for demanding industrial environments, this reduced-port ball valve offers a Cold Working Pressure (CWP) of 400 psi and a saturated steam capacity up to 125 psi, supporting a wide operational range.
Manufactured as part of the Apollo 32‑100 Series, the Apollo 32‑108‑01 bronze ball valve 2 400 psi features a precision-machined, ASTM-grade cast bronze body. Its reduced port design minimizes flow path while maximizing strength and compactness—ideal for systems with space constraints.
Equipped with a manual lever handle crafted from steel, this valve ensures secure and intuitive operation. The handle engages a ball mechanism, enabling quick shutoff with minimal effort. The valve supports hot environments up to 400 °F, offering flexibility across a range of industrial applications.
Bronze reduced-port ball valve, 2″ FNPT threaded ends
400 psi CWP (cold working pressure), 125 psi steam rating
Operating temperatures up to 400 °F
Extended service life with corrosion-resistant materials
Manual steel lever handle for intuitive control
Compact and robust construction fits tight spaces
| Specification | Details |
|---|---|
| Model | Apollo 32‑108‑01 |
| Valve Type | Bronze ball valve, reduced-port |
| Connection Type | 2″ Female NPT (FNPT) |
| Pressure Rating (CWP) | 400 psi |
| Steam Rating | 125 psi saturated steam |
| Temperature Max | 400 °F |
| Body Material | ASTM-grade cast bronze |
| Port Type | Reduced |
| Handle Material | Steel lever |
The Apollo 32‑108‑01 bronze ball valve 2″ 400 psi is ideal for use in:
Compressed air, water, and oil distribution systems
Steam and heating pipelines (up to 125 psi)
HVAC and process control setups
Industrial and mechanical maintenance systems
Compact piping configurations requiring durable shutoff solutions
Clean and prepare male NPT threads; use approved sealant tape.
Hand-tighten before final torque to ensure proper seat alignment.
Operate periodically to maintain movement freedom.
During servicing, inspect handle and port for signs of wear.
With its sturdy bronze construction, compact reduced-port design, and reputable pressure ratings, the Apollo 32‑108‑01 bronze ball valve 2″ 400 psi is an excellent option for industrial environments that demand reliable performance in tight installations. Whether for maintenance, OEM use, or heavy-duty system builds, this valve delivers trust and longevity.
