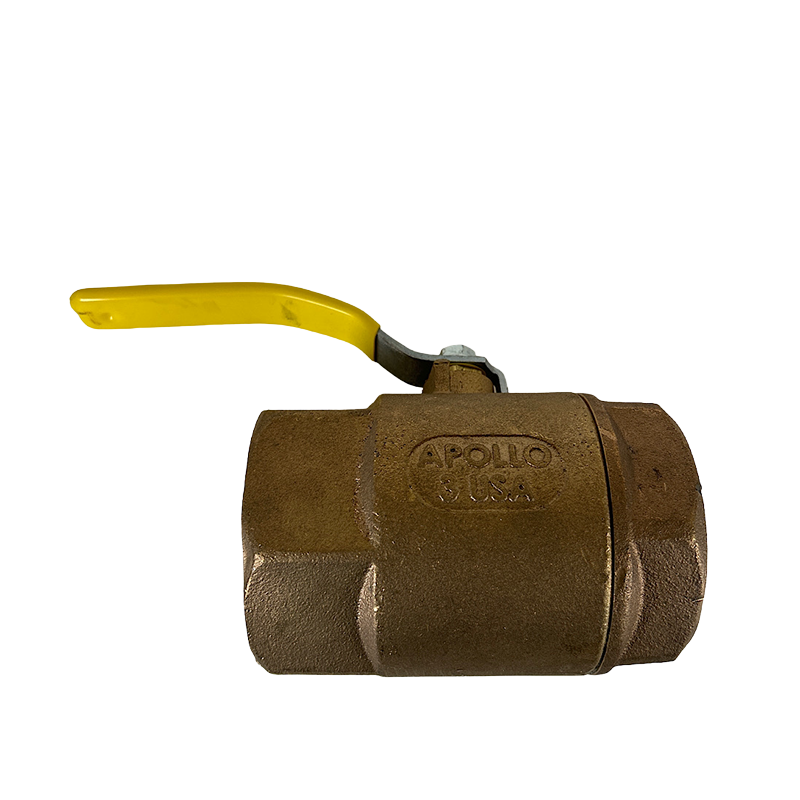

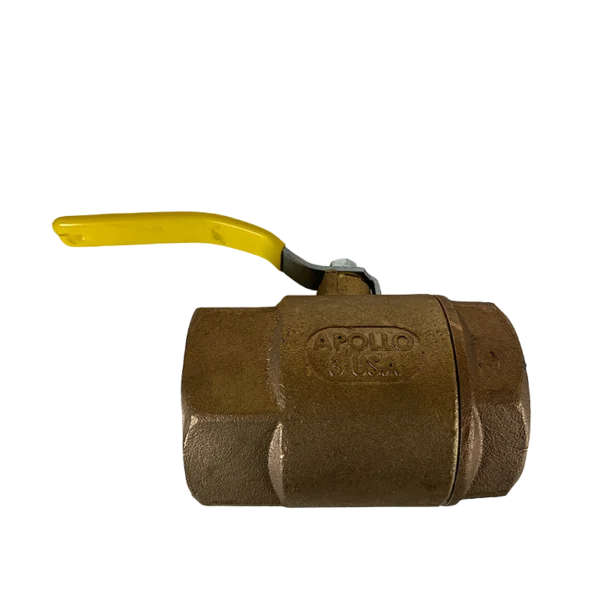

Apollo 70-100-01 Bronze Ball Valve delivers heavy-duty 600 psi shut-off in a 3″ industrial-grade package.
Apollo 70-100-01 Bronze Ball Valve is a two-piece, standard-port FNPT valve engineered for high-pressure industrial service. Manufactured in the USA as part of Apollo’s 70‑100 series, this 3″ valve offers robust shutdown control for water, steam, oil, and vacuum systems.
600 psi cold working pressure (CWP) and 150 psi saturated steam (SWP) ratings
Maximum service temperature 500 °F
Blow-out-proof stem with adjustable packing gland
Reinforced seats and chrome-plated ball for durability
Vacuum rated to 29 in Hg
Made in USA with 5-year warranty, compliant with MSS SP-110, ARRA, CSA CRN OC10908.5C, Prop 65
| Specification | Details |
|---|---|
| Valve Type | 2‑piece standard‑port ball valve |
| Size | 3 in (76 mm) FNPT |
| Pressure Rating | 600 psi CWP, 150 psi SWP |
| Temperature Rating | Up to 500 °F |
| Body Material | Bronze (ASTM B584‑C84400) |
| Ball Material | Chrome-plated brass (ASTM B16/B283) |
| Seat & Packing | RPTFE seats; MPTFE stem packing |
| Stem Design | Blow‑out‑proof |
| Handle Type | Zinc-plated lever with vinyl sleeve |
| Vacuum Service | Up to 29 in Hg |
| Certifications | MSS SP‑110, ARRA, CSA CRN, Prop 65 |
| Inlet–Outlet Length | 6.75 in |
| Top–Inlet Center | 4.12 in |
| Weight | 18.6 lb |
Industrial systems for water, oil, and steam shutdown
Vacuum service in HVAC, laboratories, and process plants
General-purpose flow isolation in manufacturing and utilities
High-temp and pressure-critical pipelines
Apply PTFE-compatible thread sealant or tape
Torque hand-tight, then secure to manufacturer spec (~300–800 in‑lb for 3″)
Align piping with valve open to prevent misalignment stress
Operate periodically to ensure packing gland performance
Heavy-duty design capable of 600 psi/500 °F
US-made reliability with 5-year warranty and compliance certification
Low-maintenance operation with durable soft goods and blow-out-proof stem
Versatile service coverage from hot steam to vacuum applications
High flow capacity thanks to full-port, standard-port design
