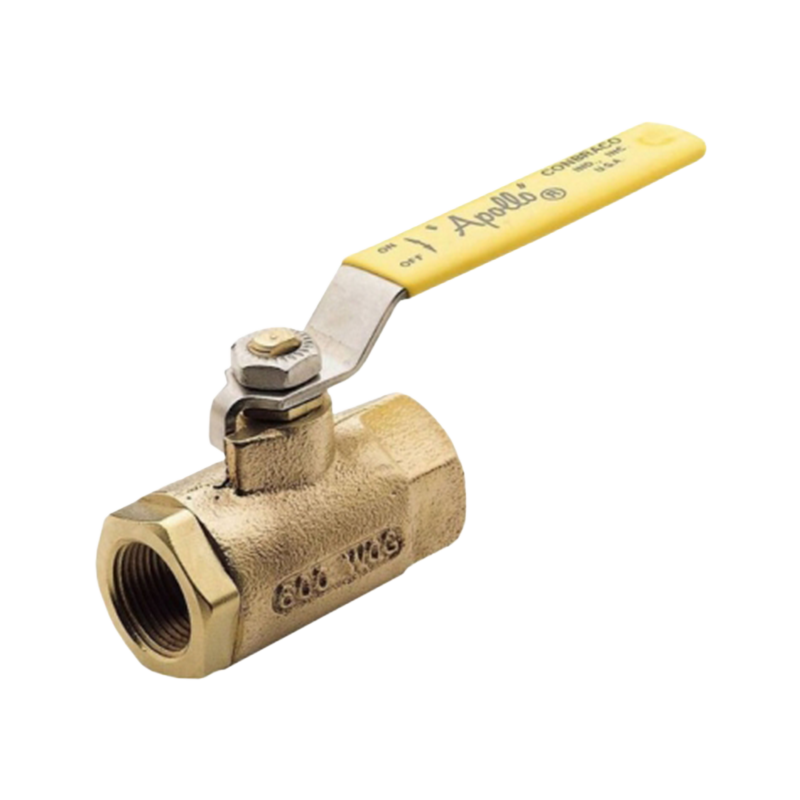

Apollo 70-105-01 Bronze Ball Valve provides 600 psi of reliable shut-off in a compact 1″ industrial-grade design.
Apollo 70-105-01 Bronze Ball Valve is a two-piece, FNPT-threaded, standard-port valve engineered for industrial-grade fluid applications. With its 600 psi pressure rating and rugged bronze construction, this 1″ valve is a reliable solution for systems handling water, oil, steam, or vacuum.
600 psi cold working pressure (CWP), 150 psi steam rating
Maximum service temperature of 500 °F
Chrome-plated brass ball for durability and smooth operation
Blow-out-proof stem with adjustable packing gland
RPTFE seats, PTFE seal, and MPTFE stem packing
Vacuum-rated to 29 in Hg
Zinc-plated steel handle with vinyl sleeve
Manufactured in the USA with 5-year limited warranty
| Specification | Details |
|---|---|
| Valve Type | 2-piece standard-port ball valve |
| Size | 1 in (25 mm) FNPT |
| Pressure Rating | 600 psi CWP, 150 psi SWP |
| Temperature Rating | Up to 500 °F |
| Body Material | Bronze (ASTM B584-C84400) |
| Ball Material | Chrome-plated brass |
| Seat & Packing | RPTFE (seats), PTFE (seal), MPTFE (stem packing) |
| Stem Design | Blow-out-proof |
| Handle Type | Zinc-plated steel w/ vinyl sleeve |
| Vacuum Service | Up to 29 in Hg |
| Inlet–Outlet Length | 3.37 in |
| Top-to-Inlet Center | 2.25 in |
| Flow Coefficient (Cv) | ~43 |
| Weight | 1.72 lb |
Shut-off in industrial water and oil systems
Steam control in high-temperature processes
HVAC and lab vacuum applications
General-purpose flow isolation
Use PTFE-compatible thread sealant
Tighten to recommended torque (200–600 in-lb)
Install with lever access for full 90° rotation
Cycle valve periodically to ensure seal integrity
High pressure and temperature capabilities
Reliable bronze body with premium sealing materials
Certified safe design with blow-out-proof stem
Manufactured in the USA with industry-grade compliance
Compact, easy-to-install design for a wide range of uses
