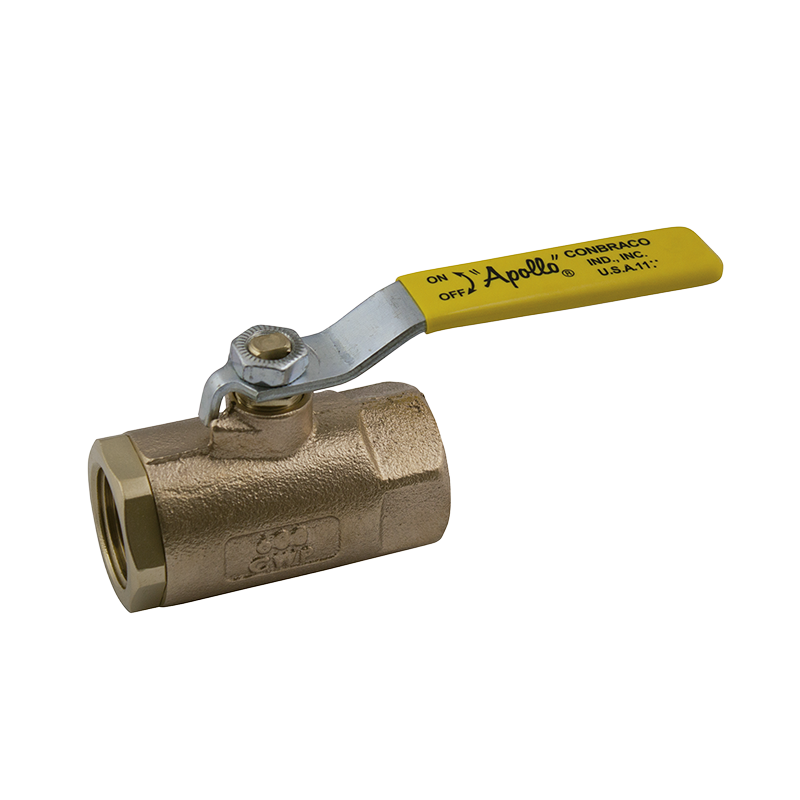

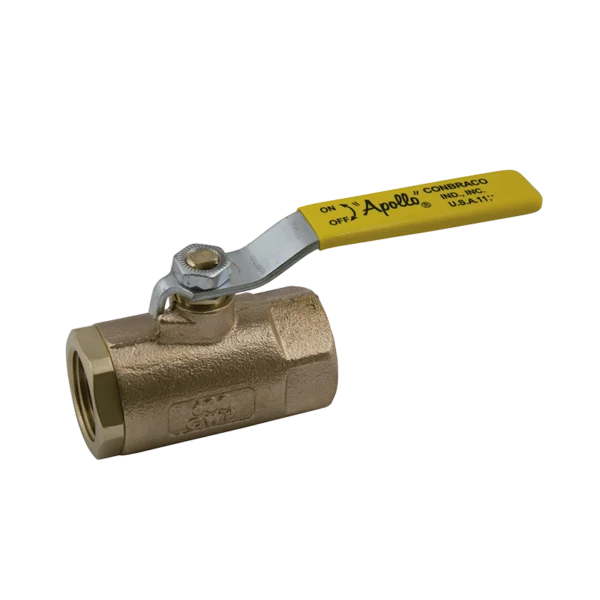

Apollo 70-106-01 bronze ball valve 1.25″ 600 psi

Apollo 70-106-01 bronze ball valve 1.25 600 psi is a heavy-duty, two-piece bronze valve designed for high-performance fluid shutoff in water, steam, oil, and gas applications. With a pressure rating of 600 psi for cold working pressure (WOG) and 150 psi for saturated steam, this FNPT threaded valve is a top choice for industrial maintenance teams, OEMs, and facility engineers seeking reliability and safety.

This valve belongs to Apollo’s renowned 70-100 Series and includes a blowout-proof stem, a chrome-plated brass ball, and reinforced RPTFE seats that resist corrosion, pressure, and high temperatures. It features female NPT (FNPT) threads for fast installation into most piping systems and offers a compact profile suitable for tight spaces.

One of the key safety advantages of the Apollo 70-106-01 bronze ball valve 1.25 600 psi is its adjustable MPTFE stem packing and stainless-steel lever handle with vinyl grip. The stem design prevents ejection under pressure while maintaining smooth operation even after thousands of cycles. The valve is vacuum rated up to 29 in Hg and has a wide temperature range from –20°F to 500°F (–29°C to 260°C).

H2: Key Features

• 600 psi WOG pressure rating (cold water, oil, gas)

• 150 psi saturated steam rating

• FNPT threaded ends (1.25″ / 1-1/4 inch)

• Blowout-proof stem with MPTFE packing

• Chrome-plated brass ball for smooth rotation

• RPTFE seats and PTFE seals for chemical resistance

• Vacuum rated to 29 in Hg

• Zinc-plated steel lever handle with vinyl grip

• Cast bronze body (ASTM B584-C84400)

• Complies with MSS SP-110 and WW-V-35C Type II

H2: Technical Specifications

H2: Typical Applications

The Apollo 70-106-01 bronze ball valve 1.25″ 600 psi is ideal for:

• Industrial plumbing lines (hot/cold water, oil, compressed air)

• HVAC systems and boiler rooms

• Steam and condensate piping

• Oil and fuel distribution systems

• Vacuum lines requiring secure shutoff

• Mechanical and OEM assemblies

• Fire protection and safety systems

This valve provides a balance of durability, compact size, and operational safety that’s suitable for many industries.

H2: Installation & Maintenance Tips

1. Clean pipe threads before installation.

2. Use approved PTFE thread sealant.

3. Hand-tighten first, then apply wrench torque carefully.

4. Test under pressure after installation.

5. Periodically check stem packing and adjust if needed.

6. Replace seals during scheduled maintenance if wear is evident.

H2: Why Choose Apollo 70-106-01 bronze ball valve 1.25″ 600 psi?

• U.S.-made, industrial-grade construction

• Built for extreme pressure and temperature conditions

• Lockout-compatible handle

• Compact and field-serviceable

• Long service life and low maintenance cost

• Trusted by engineers, technicians, and OEM designers
