Apollo 70‑107‑01 Bronze Ball Valve offers 600 psi CWP durability in a compact 1.5″ industrial solution.

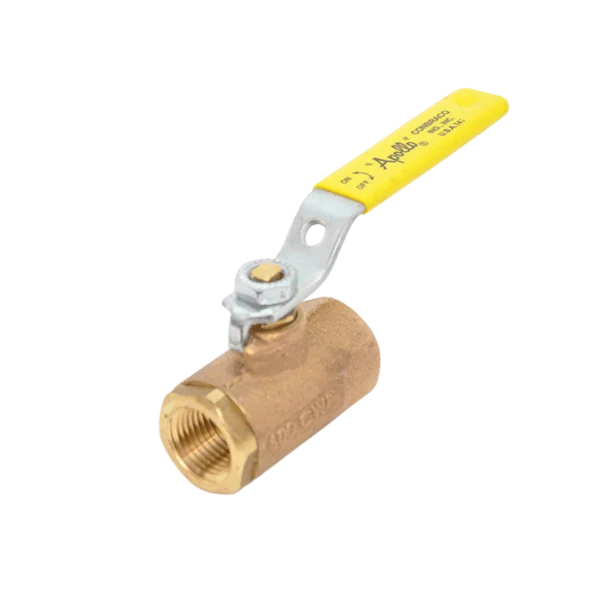

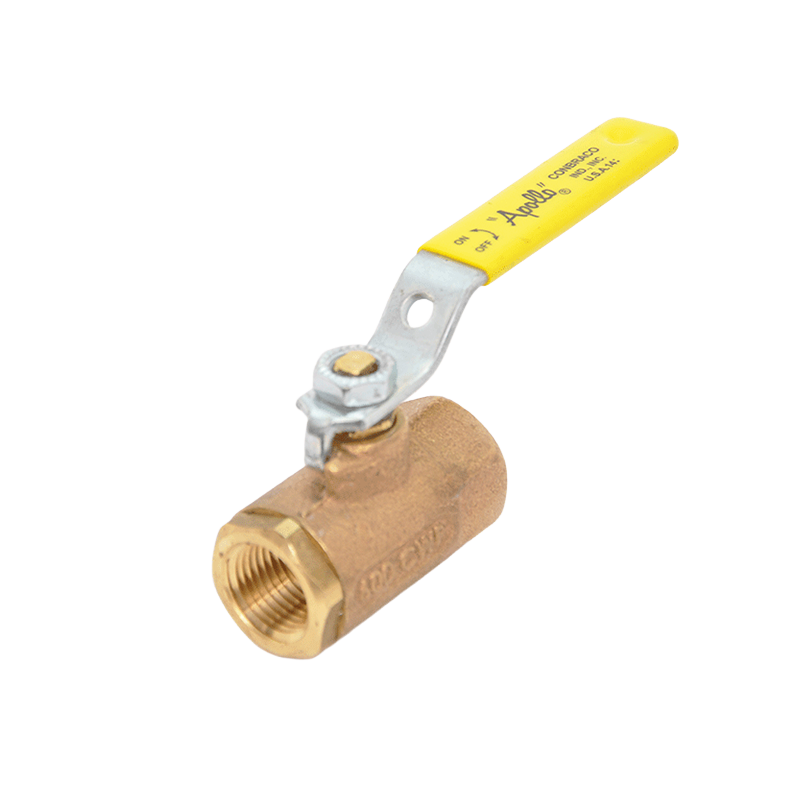

Apollo 70‑107‑01 Bronze Ball Valve is a two-piece, standard-port valve engineered to deliver dependable flow control in industrial fluid systems. Crafted in the USA, this valve is part of Apollo’s renowned 70‑100 series, designed for heavy-duty applications including water, oil, steam, and vacuum service.
600 psi Cold Working Pressure (CWP), 150 psi Saturated Steam (SWP) for versatile industrial use
500 °F maximum temperature rating suitable for hot fluid handling
Chromium-plated brass ball, RPTFE seats, PTFE body seal, and MPTFE stem packing ensure tight shutoff and wear resistance
Blow‑out‑proof stem with adjustable gland for enhanced safety and serviceability
Vacuum-rated to 29 in Hg and meets MSS SP‑110 standards
Made in the USA with a 5-year warranty to back long-term performance
| Specification | Details |
|---|---|
| Valve Type | 2-piece, standard-port ball valve |
| Size | 1.5 in (38 mm) FNPT |
| Pressure Rating | 600 psi CWP; 150 psi SWP |
| Temperature Rating | Up to 500 °F |
| Body Material | Bronze (ASTM B584‑C84400) |
| Ball Material | Chrome-plated brass (ASTM B16/B283) |
| Seats & Stem Packing | RPTFE seats; PTFE seal; MPTFE packing |
| Port Style | Standard port |
| Stem Design | Blow-out-proof |
| Handle Type | Zinc-plated steel lever with vinyl sleeve |
| Vacuum Capability | Up to 29 in Hg |
| Certifications | MSS SP‑110, ARRA, CSA CRN OC10908.5C, Prop65 warning |
| Inlet–Outlet Length | 4.37 in |
| Top-to-Inlet Center | 3.06 in |
| Weight | ~4.61 lb |
All data sourced from ValveMan, Cooney Brothers, Ballard Industrial, and PipingNow
Industrial water, oil, and gas systems
Steam systems up to 500 °F
Vacuum services in HVAC, process, and laboratory operations
General-purpose shut-off and isolation in industrial piping
Use PTFE-compatible thread sealant or tape
Tighten hand then torque per Apollo specs (typically 200–600 in‑lb)
Install with lever access upward for ease-of-operation
Periodically cycle valve and adjust packing gland if minor leaks occur
Heavy-duty performance: 600 psi rating and 500 °F capability
Reliable seal integrity: chrome ball and premium soft goods prolong valve life
Safety-focused design: blow-out-proof stem with adjustable packing
Made in USA: with full regulatory certifications and 5‑year warranty
Versatile use: one valve for water, oil, steam, and vacuum services
