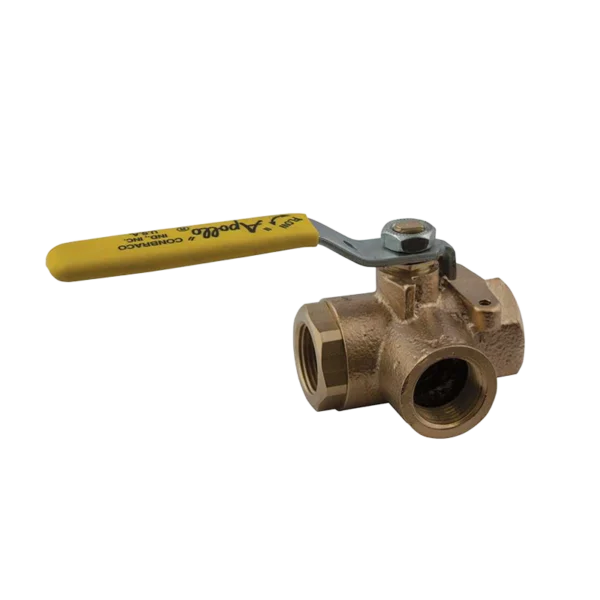

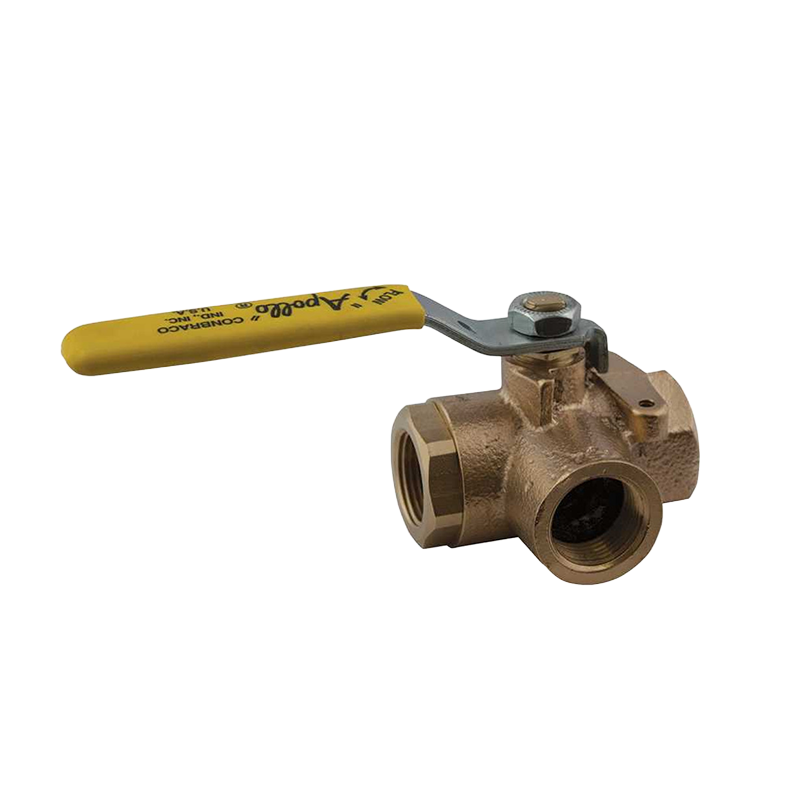

Apollo 70‑601‑01 Bronze 3‑Way Ball Valve offers reliable 400 psi diverting performance in a compact ¼″ industrial package.
Apollo 70‑601‑01 Bronze 3‑Way Ball Valve is a full-port, L-port two-piece valve designed for precise fluid diversion in industrial applications. Crafted in the USA with ASTM-certified bronze body and chrome-plated brass ball, this valve offers rugged reliability for pneumatic, hydraulic, and water systems.
400 psi Cold Working Pressure (CWP) and up to 500 °F service temperature
Full-port L-pattern for smooth flow and minimal pressure drop
Bronze body (ASTM B584-C84400) with chrome-plated brass ball (ASTM B283-C37700)
RPTFE seats, PTFE body seal, and RPTFE stem packing for tight shut-off}
Blow-out-proof stem and drilled & tapped mounting pad for actuator options
Zinc-plated steel lever handle with vinyl sleeve for reliable manual control
| Specification | Details |
|---|---|
| Valve Type | 3‑Way Ball Valve (L‑port) |
| Size | ¼ in (6 mm) FNPT |
| Pressure Rating | 400 psi CWP |
| Temperature Rating | Up to 500 °F |
| Body Material | Bronze (ASTM B584‑C84400) |
| Ball Material | Chrome‑plated Brass (ASTM B283‑C37700) |
| Seats & Stem Packing | RPTFE (Seats), PTFE (Seal), RPTFE (Packing) |
| Port Style | Full-port L-pattern |
| Stem Design | Blow‑out‑proof |
| Handle Material | Zinc‑plated Steel w/ Vinyl Sleeve |
| Mounting Pad | Drilled & tapped |
| Orifice Size | ½ in |
| Inlet→Outlet Length | 2.25 in |
| Top→Inlet Center | 1.8 in |
| Flow Coefficient (Cv) | 2.3‑2.4 |
| Origin | USA |
| Standards | MSS SP‑110, ASTM, Federal WW‑V‑35C, PROP65 |
Fluid diversion in chemical, agricultural, and water treatment systems
Pneumatic and hydraulic loop switching
Multi-tank selection and process routing
General industrial service with water, oil, or light gas
Apply PTFE-compatible thread sealant or tape
Hand-tighten, then torque per Apollo specs (approx. 200–400 in‑lb)
Install with stem vertical when mounting actuators
Cycle periodically to maintain seal integrity; adjust packing gland as needed
Efficient 3‑way design for versatile flow control
Heavy-duty bronze construction, ideal for long-term industrial use
High thermal tolerance, up to 500 °F for hot fluid streams
US-manufactured quality, with robust certification and mounting options
Low-maintenance materials, like RPTFE seats/packs and blow-out-proof stem
