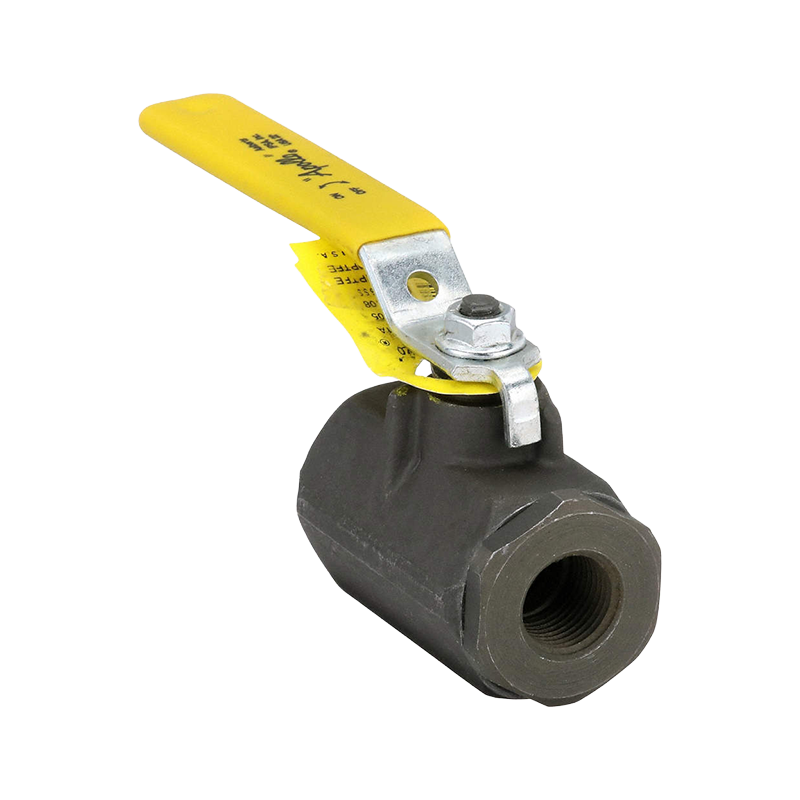

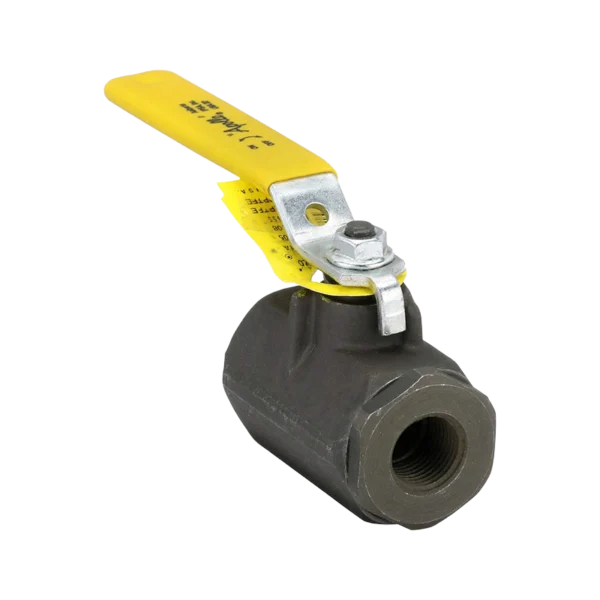

Apollo 72‑104‑01A ball valve delivers 3000 psi carbon steel durability and full‑port flow control in a compact 3/4″ design.
Apollo 72‑104‑01A ball valve is a rugged, high‑pressure valve engineered for industrial fluid, gas, and steam systems requiring superior performance. Constructed with a forged carbon steel body and full-port design, this valve offers exceptional reliability under extreme conditions—rated to 3000 psi cold working pressure (CWP) and 150 psi steam working pressure (SWP).
Forged carbon steel body, designed for cold non‑shock ratings and extreme durability
Full-port configuration maximizes flow with minimal pressure drop
Chrome‑plated carbon steel ball paired with MPTFE/RPTFE seats ensures precise shut‑off and leak resistance
Blow‑out–proof stem and adjustable packing gland for operator safety and maintenance
Zinc‑phosphate‑coated lever handle provides clear 90° actuation with corrosion resistance
FNPT threaded ends ensure reliable installation in pressurized piping systems
Specification | Details |
---|---|
Body Material | Forged carbon steel |
Ball Material | Chrome‑plated carbon steel |
Seat & Packing Material | MPTFE / RPTFE |
Connection Type | 3/4″ FNPT threaded ends |
Port Type | Full-port |
Max CWP | 3000 psi |
Max SWP | 150 psi (steam) |
Temperature Range | −25 °F to +600 °F |
Vacuum Service | Down to 29 in Hg |
Overall Length (LoA) | 3.66 in (inlet to outlet) |
Weight | 3.07 lb |
Standards & Approvals | MSS SP‑110, ASTM A105, Prop 65, fire‑safe design |
Stem Safety | Blow‑out‑proof |
Handle | Zinc‑phosphate lever with vinyl grip |
High-pressure water, oil, and gas systems
Steam and condensate control up to 150 psi
Process plants and petrochemical facilities
Vacuum and compressed air systems
High-temperature industrial heating loops
Apply PTFE tape or pipe sealant evenly on male threads.
Thread valve straight and torque to avoid body stress.
Use full 90° lever travel for proper open/close seating.
Slowly actuate in steam systems to prevent water hammer.
Inspect packing gland periodically and tighten if needed.
Maximum pressure capacity: 3000 psi CWP ensures reliability in the toughest environments.
Efficient flow control: Full-port design delivers unrestricted flow and reduces pressure loss.
Industrial-grade materials: Forged carbon steel and reinforced components ensure long-term durability.
Safety-focused engineering: Blow-out–proof stem and fire-safe feature protect systems and personnel.
Certified quality: Built in the USA, compliant with MSS, ASTM, and Prop 65 standards.
Versatile serviceability: Suitable for fluid, gas, steam, and vacuum applications.
