Apollo 73A‑106‑01 1¼″ Carbon Steel Ball Valve is a robust, forged FNPT valve rated 1500 psi CWP with RPTFE seats, blow‑out‑proof stem, and vacuum-rated—perfect for industrial pipelines.

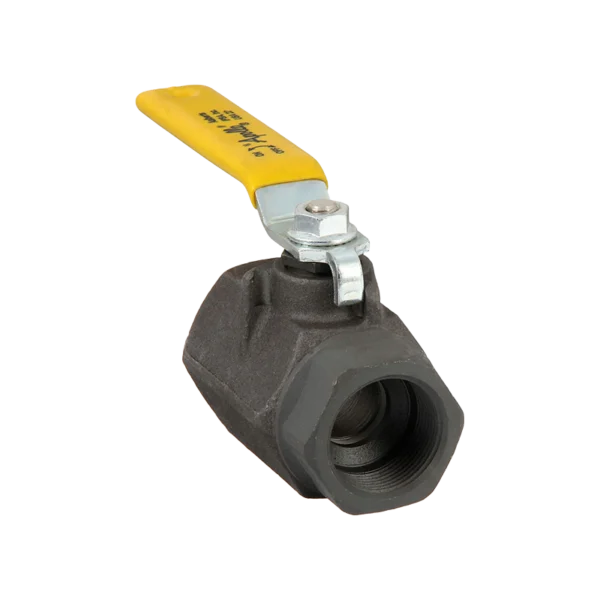

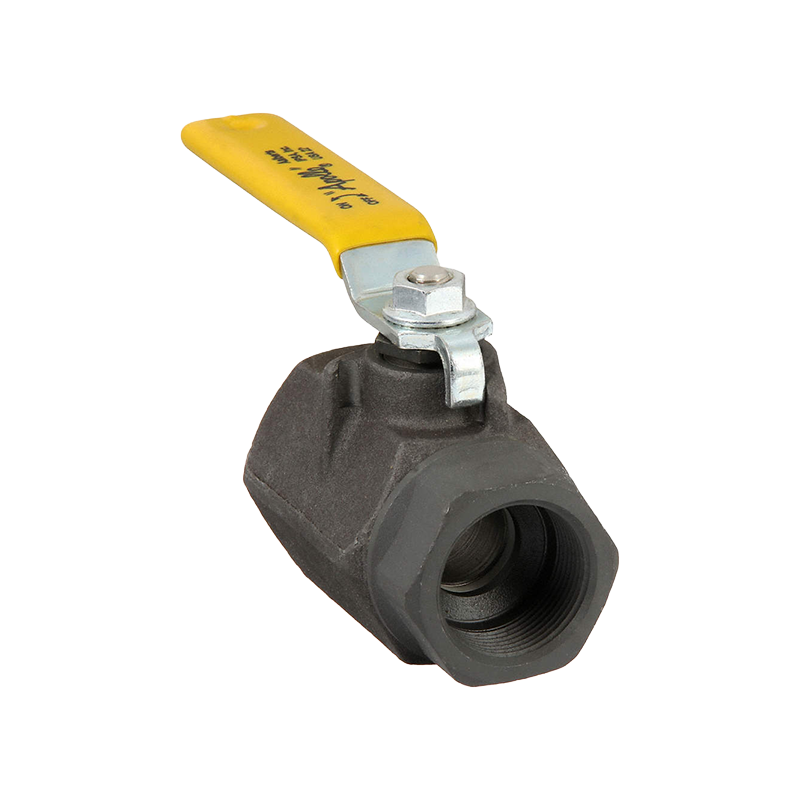

Apollo 73A‑106‑01 1¼″ Carbon Steel Ball Valve is a high-performance ball valve crafted for demanding industrial use. This Apollo 73A‑106‑01 1¼″ Carbon Steel Ball Valve features a forged A105 carbon-steel body and a durable chrome-plated A108 steel ball, combined with RPTFE seats and MPTFE packing for reliable sealing and operation—even under pressure up to 1500 psi CWP.
As part of the Apollo 73A‑100 Series, it offers FNPT connections and a standard-port design. It’s rated for 150 psi saturated steam and can handle vacuum service down to 29 in Hg, making it suitable for a wide array of industrial applications.
The valve includes a blow-out-proof stem and adjustable packing gland for added safety and serviceability. A steel lever with a vinyl grip and zinc-phosphate coating provides robust manual operation and corrosion resistance. Raised handle stops protect internal components during use.
With a compact footprint (3.97″ length, 2.72″ centerline height) and weight at approximately 3.74 lb, the Apollo 73A‑106‑01 integrates neatly into piping systems without excess bulk.
Forged carbon-steel body (A105) with durable zinc finish
Chrome-plated steel ball (A108) for corrosion resistance
RPTFE seats & MPTFE packing for smooth, leak-tight performance
Blow-out-proof stem with adjustable gland ensures safety
1500 psi CWP, 150 psi steam & vacuum to 29 in Hg capability
Steel lever with vinyl grip and zinc-plating for durability
Compact size—3.97″ × 2.72″, weighing 3.74 lb
MSS SP‑110, AAR, Prop 65 certified for industrial reliability
Made in USA by Apollo Conbraco Industries
| Specification | Details |
|---|---|
| Model | 73A‑106‑01 (Series 73A‑100) |
| Size | 1¼″ FNPT |
| Body Material | Forged carbon steel (ASTM A105) |
| Ball Material | Chrome-plated carbon steel (ASTM A108) |
| Seat/Packing | RPTFE seats, MPTFE packing |
| Connections | Female NPT × Female NPT |
| Port Type | Standard |
| Pressure Rating | 1500 psi CWP, 150 psi saturated steam |
| Vacuum Rating | Down to 29 in Hg |
| Temperature Rating | Up to 450 °F per series spec |
| Dimensions (L×H) | 3.97″ × 2.72″ |
| Weight | 3.74 lb per valve |
| Certifications | MSS SP‑110, AAR, Prop 65, ASTM, US-made |
| Origin | USA |
Process and control piping in industrial plants
Steam, water, gas, vacuum lines and utility piping
HVAC, compressor and pneumatic systems
Oil, chemical manufacturing, and corrosion-prone environments
Anywhere a reliable, high-pressure shutoff valve is needed
Apply PTFE tape or correct sealant to FNPT threads.
Torque to piping specification.
Cycle open/close fully during installation for valve seating.
Adjust packing gland if leaks occur.
Suitable for steam service; consult P/T charts if needed.
Perform periodic inspections for wear or seal fatigue.
Exceptional strength and reliability with forged construction
High-performance sealing from RPTFE materials
Built-in safety via blow-out-proof stem and zinc finish
Versatility across steam, gas, vacuum, and water systems
Compact yet powerful, with certifications for industrial compliance
Part of the trusted Apollo 73A‑100 Series, the Apollo 73A‑106‑01 1¼″ Carbon Steel Ball Valve delivers heavy-duty performance, precise engineering, and full industrial certification. Ideal for professionals in maintenance, design, and operations who demand robust and dependable pipeline control.
