$1,209.65
0 disponibles

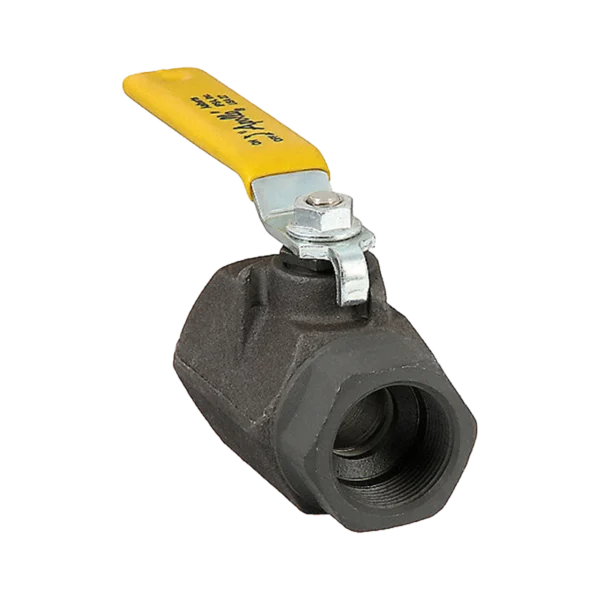

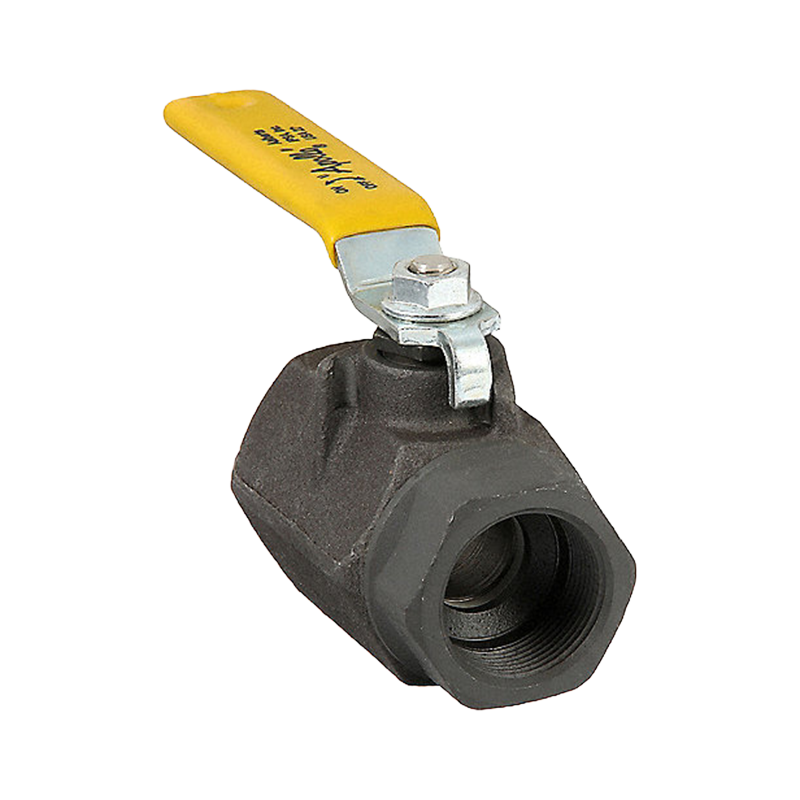

Apollo 73A‑107‑01 ball valve offers 1500 psi forged carbon steel strength with precise flow control in a 1½″ FNPT standard-port design.
Apollo 73A‑107‑01 ball valve is a rugged, industrial-grade solution engineered for demanding fluid and gas systems. Constructed from forged carbon steel, this 2-piece ball valve delivers up to 1500 psi cold working pressure (CWP) and 150 psi saturated steam service. Featuring a standard-port configuration, it ensures optimal flow control and compatibility in pressurized piping systems.
Forged carbon steel body (ASTM A105) offers industrial-strength resilience
Standard-port FNPT connections for seamless integration in piping systems
Chrome-plated carbon steel ball with MPTFE/PTFE seats and packing for superior sealing performance
Blow-out–proof stem and adjustable packing gland enhance safety and longevity
Zinc-phosphate corrosion-resistant finish, with steel, zinc-plated lever and vinyl grip
Vacuum-capable down to 29 in Hg; steam-rated to 150 psi
| Specification | Details |
|---|---|
| Body Material | Forged carbon steel (ASTM A105) |
| Ball Material | Chrome-plated carbon steel |
| Seat & Packing | MPTFE/PTFE |
| Stem Packing | MPTFE |
| Connection Type | 1½″ FNPT x FNPT threaded ends |
| Port Type | Standard |
| Max CWP | 1500 psi |
| Max SWP | 150 psi saturated steam |
| Vacuum Service | Down to 29 in Hg |
| Lever Handle | Steel, zinc-plated with vinyl grip |
| Body Finish | Zinc phosphate |
| Inlet–Outlet Length (LoA) | 4.32 in |
| Top–Center Height (TIC) | 3.12 in |
| Orifice Size | 1¼″ |
| Weight | 5.3 lb |
| Standards | MSS Sp‑110, ASTM A105, AAR E999032, Prop 65 |
| Warranty | 5 years |
High-pressure water, gas, and industrial fluid lines
Steam and condensate systems up to 150 psi
Process plants, fabrication, and chemical facilities
Vacuum and compressed air systems
Use PTFE tape or sealant on threads; hand-tighten then torque evenly.
Ensure full 90° lever rotation for proper sealing.
For steam service, open slowly to prevent water hammer.
Inspect and tighten packing gland periodically.
Use vacuum-rated fittings when using below atmospheric pressure.
Industrial-grade resilience: forged carbon steel body handles 1500 psi reliably
Reliable sealing: MPTFE/PTFE trim with blow-out-proof stem ensures long-term performance
Versatile flow: standard-port design with 1¼″ orifice balances flow and pressure drop
Safety-engineered finish: zinc phosphate protects against corrosion
Proven quality: US-made, MSS, AAR, Prop 65 compliant with 5-year warranty
