Apollo 73A‑108‑01 carbon steel ball valve delivers 2000 lb WOG capacity in a 2″ standard‑port FNPT design for heavy‑duty industrial service.

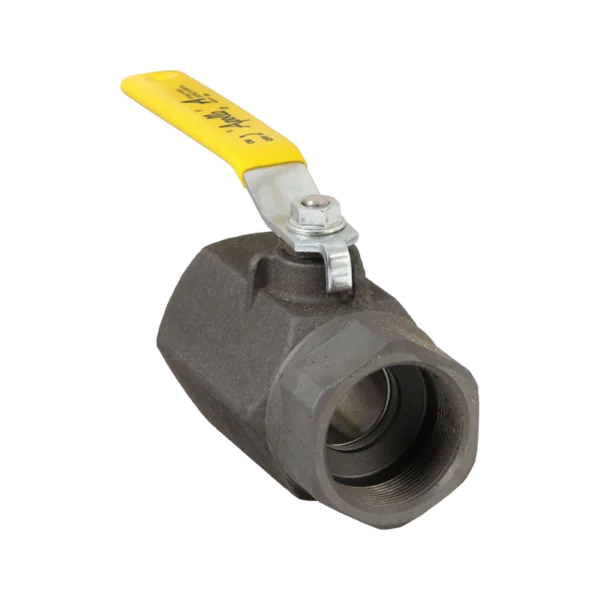

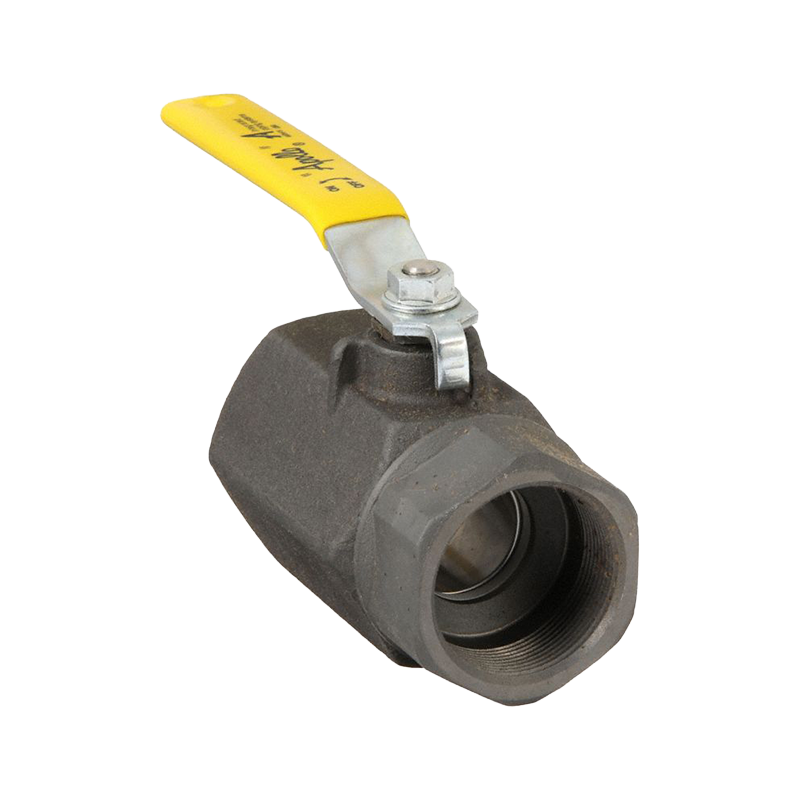

Apollo 73A‑108‑01 ball valve is a high-strength, two-piece, standard-port valve engineered for critical fluid and gas service in industrial environments. Made with a forged ASTM A105 carbon steel body, this 2″ FNPT × FNPT valve is rated for 2000 psig cold working pressure (WOG) up to 1500 psig and is built for reliability and high-flow performance.
Forged carbon steel ASTM A105 body ensures rugged durability and consistency in high-pressure systems
Standard port design (2″ nominal, ~1.5″ orifice) balances flow rate and system pressure drop
1½″ orifice size ideal for minimizing pressure drop in large flow applications
Chrome-plated carbon steel ball and stem with MPTFE/PTFE seats and packing for leak-tight sealing
Blow-out–proof stem design ensures safety under pressure cycling
Zinc phosphate external finish with lever handle and vinyl grip resists corrosion and wear
Vacuum-capable down to 29 in Hg, steam rated to 150 psig saturated steam
| Specification | Details |
|---|---|
| Brand | APOLLO |
| Model | 73A‑108‑01 |
| Body Material | Forged carbon steel (ASTM A105) |
| Ball & Stem Material | Chrome-plated carbon steel |
| Soft Goods (Seats/Packing) | MPTFE / PTFE |
| Orifice Size | Approximately 1.5″ (standard port design) |
| Connection Type | Female NPT × Female NPT |
| Nominal Size | 2″ |
| Maximum WOG Rating | 2000 psi (cold working pressure) |
| Steam Rating | 150 psi saturated steam |
| Vacuum Service | Down to 29 in Hg |
| Inlet to Outlet Length | 4.32 in |
| Top–Center Height | 3.12 in (center of inlet to top of handle) |
| Approximate Weight | ~8.03 lb |
| Standards & Approvals | MSS SP‑110, ASTM A105, AAR E999032, Prop 65 compliant |
| Warranty | 5 years |
High-flow piping systems for water, oil, and gas, where high pressure is required
Industrial plants, chemical processing, and fabrication lines
Power and HVAC systems with high-pressure cycles
Steam service up to 150 psig or vacuum-rated operations
Apply PTFE thread sealant or tape to NPT connections for a leak-free seal.
Orient valve for correct lever handle accessibility and full 90° operation.
Slowly open under pressure to avoid water-hammer in steam or fluid lines.
Periodically inspect packing gland and adjust if leakage occurs.
Store handle in closed position when not in use to protect threads.
Engineered for reliability: forged carbon steel construction handles up to 2000 psig WOG pressure in 2″ line sizes
Trusted sealing integrity: PTFE/MPTFE soft goods and chrome-plated ball deliver long-lasting leak prevention
Safety-designed stem: blow-out proof stem enhances operator protection
Corrosion-resistant finish: zinc phosphate coating and vinyl grip handle extends service life
Industry-standard quality: compliant with MSS SP‑110 and Prop 65, backed by a 5-year warranty
