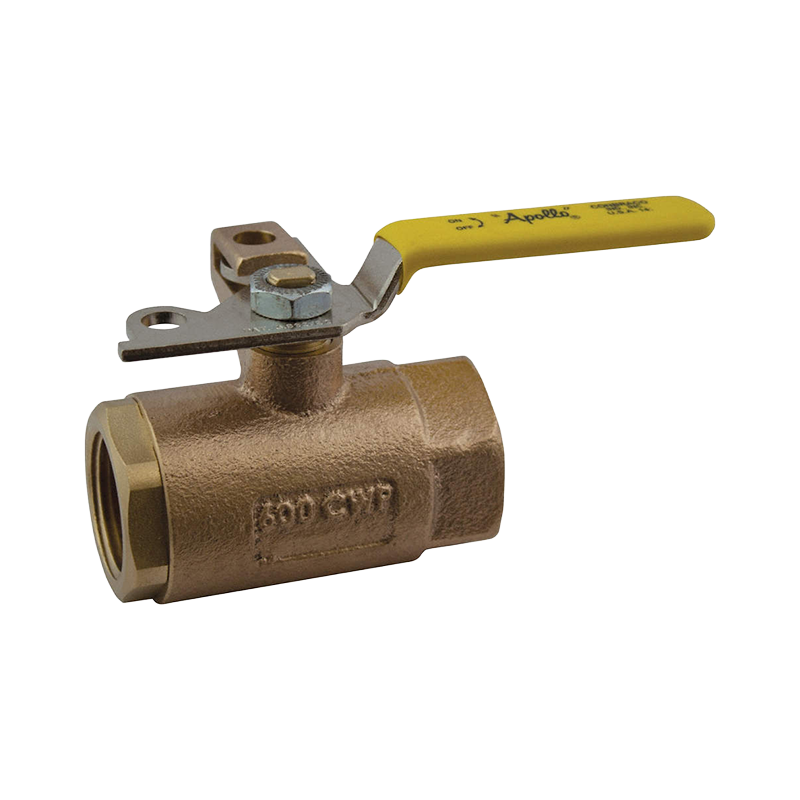

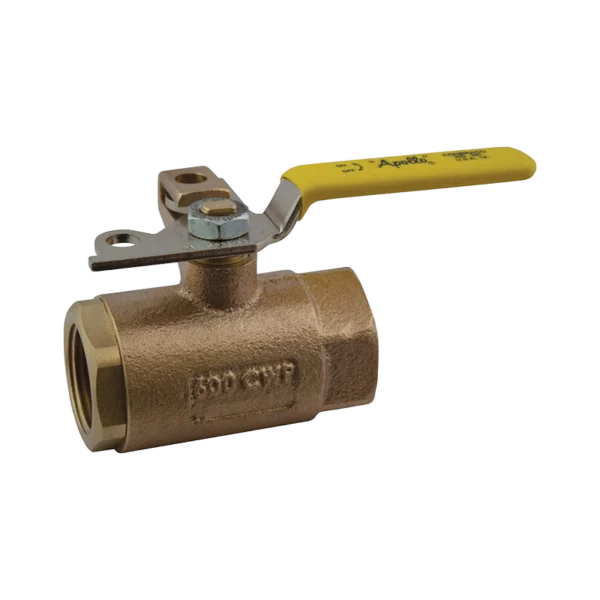

Apollo 75‑105‑41 1″ Bronze Ball Valve is a pad‑lockable, drain‑equipped FNPT valve rated 600 psi/150 psi steam with strengthened PTFE seats and blow‑out‑proof stem.
Apollo 75‑105‑41 1″ Bronze Ball Valve is a robust, two-piece FNPT valve engineered for high-pressure, safety-conscious environments. This professional-grade valve features a pad-lockable steel lever and automatic downstream drain, enabling maintenance isolation without pressure build-up. Rated at 600 psi Cold Working Pressure (CWP) and 150 psi saturated steam, it reliably performs in demanding fluid, air, or steam systems.
Constructed from B584‑grade bronze with a chrome-plated B16 brass ball and RPTFE seats and seals, the Apollo 75‑105‑41 1″ Bronze Ball Valve offers wear-resistant performance and tight shutoff. The blow-out-proof stem and adjustable MPTFE packing ensure durability and leak prevention throughout intensive use.
This valve has a standard-port orifice of 0.87″ and delivers a flow coefficient (Cv) of 43 GPM, balancing strong flow rates with compact, manageable form. The zinc‑plated steel lever includes a vinyl grip and pad-lock feature for safety lockout without modifying hardware.
Key specifications:
Tissue: 1″ FNPT connections, two-piece, inline threaded body
Materials: Bronze body (ASTM B584), brass stem, chrome-plated brass ball, steel lever with vinyl grip
Pressure/Temperature Ratings: 600 psi CWP, 150 psi steam, vacuum to 29 in Hg
Dimensions: Face-to-face length 3.35″, centerline height ~2.25″, Cv = 43 GPM
Weight: ~1.83 lb
Standards: MSS SP‑110, ISO 9001, B16/B584, lead-free compliant
Pad-lockable lever allows secure locking in open/closed positions
Automatic downstream drain releases residual pressure during valve isolation
RPTFE seats and MPTFE packing support low-torque operation and leak-tight sealing
Blow-out-proof stem ensures operational safety under pressure
| Specification | Details |
|---|---|
| Model | 75‑105‑41 (Series 75‑100) |
| Size | 1″ FNPT |
| Body Material | Bronze (ASTM B584‑C84400) |
| Ball Material | Chrome-plated brass (ASTM B16) |
| Seat/Seal Material | RPTFE / PTFE |
| Stem Stem Material | Brass (ASTM B16) |
| Lever Handle | Zinc-plated steel with vinyl grip |
| Orifice & Flow (Cv) | 0.87″ / 43 GPM |
| Pressure Rating (CWP) | 600 psi |
| Steam Rating (SWP) | 150 psi saturated |
| Vacuum Capability | Down to 29 in Hg |
| Dimensions (L×H) | 3.35″ × 2.25″ |
| Weight | 1.83 lb |
| Standards Compliance | MSS SP‑110, ISO 9001 |
| Origin | USA |
Ideal for:
Industrial air, water, and steam systems
Maintenance and LOTO procedures in pneumatic setups
Pump unload, safety drain, and service isolation tasks
Plumbing and HVAC systems requiring secure shutoff
Pressure gauge and instrument bypass arrangements
Apply PTFE tape or sealant to FNPT threads.
Torque per Apollo recommendations.
Cycle fully open/close after installation to seat the ball.
Use pad-lock handle for safe isolation.
Drain downstream pressure before servicing.
Inspect packing gland; re-tighten if minimal leakage occurs.
Periodic system checks recommended in steam or HVAC service.
Enhances worker safety via lockable lever and drain port
Reduces pressure-related hazards from trapped fluid
Ensures reliable performance with reinforced sealing
Offers industrial-grade durability in bronze construction
Compliant with industry standards for professional use
As a member of Apollo’s respected 75‑100 Series, the Apollo 75‑105‑41 1″ Bronze Ball Valve provides an exceptional combination of performance, safety, and reliability. Trusted in industrial and commercial settings, it stands out where dependable shutoff, maintenance safety, and compact design are essential.
