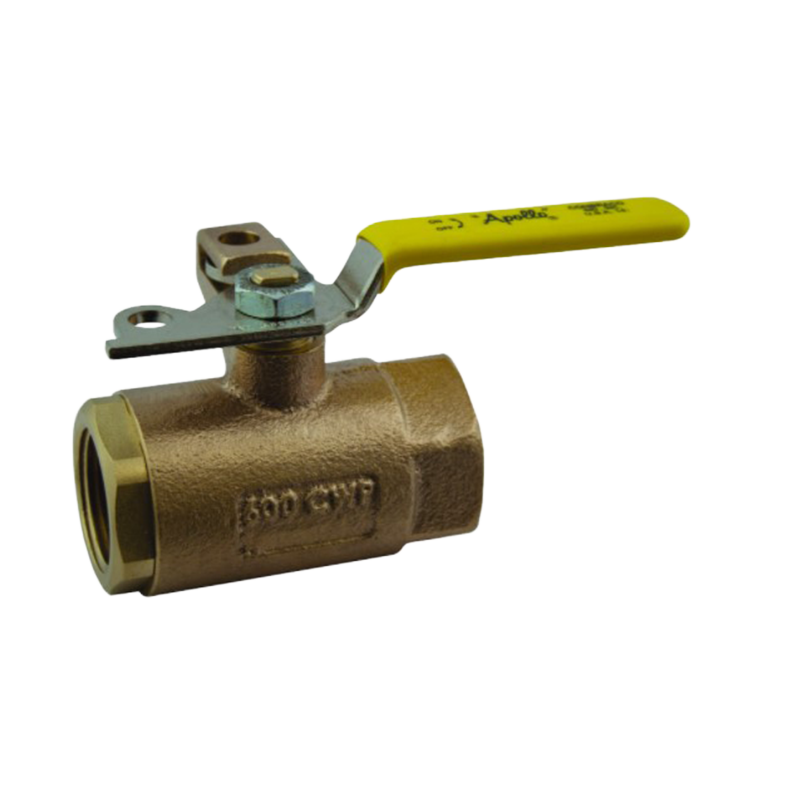

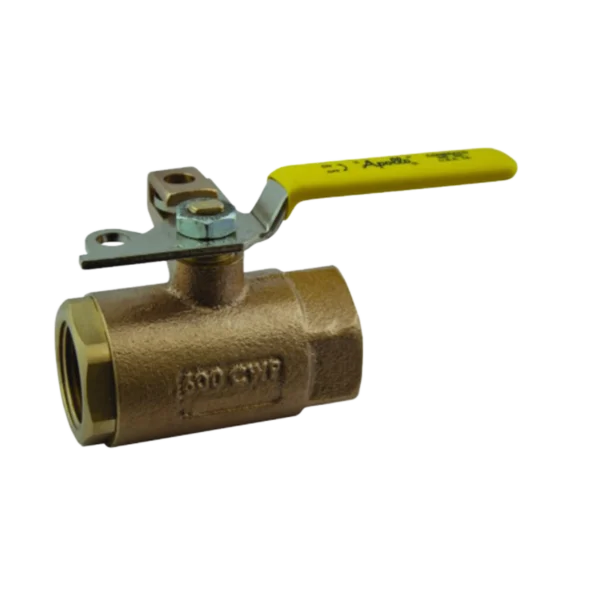

Apollo 75‑108‑41 2″ Bronze Ball Valve is a pad-lockable FNPT valve with automatic drain, rated 600 psi CWP with PTFE seats—durable and safe for pneumatic or liquid systems.
Apollo 75‑108‑41 2″ Bronze Ball Valve is a professional-grade ball valve designed for demanding industrial, fluid, and pneumatic applications. The Apollo 75‑108‑41 2″ Bronze Ball Valve features a robust bronze body, chrome-plated brass ball, and reinforced PTFE seats to deliver reliable performance with a 600 psi cold working pressure rating (CWP) and 150 psi saturated steam capacity.
This two-piece valve offers FNPT connections, a full-port flow design, and a steel lever handle that can be pad-locked in either the open or closed position for added safety during maintenance. It includes an automatic downstream drain to safely relieve pressure and prevent line damage when closing under pressure.
Constructed with ANSI B584 C84400 bronze body and ASTM B16 brass stem, the Apollo 75‑108‑41 2″ Bronze Ball Valve meets ISO 9001 and MSS-SP-110 standards. It has a flow coefficient (Cv) of 108 GPM, allowing high flow rates with minimal pressure drop. Rated for temperatures up to 200 °F and pressure as high as 600 psi for water, the valve suits a wide range of industrial uses.
Pad-lockable lever handle enables safe lockout of valve position
Automatic downstream drain port releases pressure on shutoff
Robust bronze body & chrome-plated brass ball for durability and corrosion resistance
Reinforced PTFE seats and adjustable packing gland ensure tight shutoff and long service life
600 psi CWP / 150 psi SWP, full-port with Cv 108
MSS SP‑110 compliant—engineered to industrial standards
Made in USA, quality-assured
| Specification | Details |
|---|---|
| Model | 75‑108‑41 (Series 75‑100) |
| Size | 2″ FNPT |
| Body Material | B584 C84400 Bronze |
| Ball Material | Chrome-plated brass |
| Seat Material | Reinforced PTFE |
| Connection | Female NPT x Female NPT |
| Flow Coefficient | 108 GPM |
| Cold Working Pressure | 600 psi |
| Steam Rating | 150 psi |
| Temperature Rating | Up to 200 °F |
| Handle | Pad-lockable steel lever with vinyl grip |
| Drain Feature | Automatic downstream bleed |
| Stem | Blow-out proof with adjustable packing |
| Standards | ISO 9001, MSS SP‑110 |
| Length | 4.67 in end‑to‑end |
| Weight | 5.69 lb each |
| Origin | USA |
The Apollo 75‑108‑41 2″ Bronze Ball Valve is ideal for:
Pneumatic systems requiring lockout/tagout compliance
Industrial water, chemical, and steam lines
Fluid draining systems and pressure relief operations
Vessel isolation in manufacturing and maintenance
HVAC, irrigation, and pump isolation tasks
Apply thread sealant or PTFE tape to NPT threads.
Use proper torque; align full-port flow with system direction.
To depressurize, close valve, then open drain port.
Pad‑lock handle in open/closed position for safety.
Periodically inspect packing gland; adjust or replace as needed.
Enhanced safety via pad-lockable handle and pressure‑relief drain
High-capacity flow preserves system performance
Durable materials resist corrosion and wear
Leak-resistant design with reinforced seats and blow-out-proof stem
Compliance-ready for industrial safety and performance standards
Apollo’s 75‑100 series is engineered for professionals. The Apollo 75‑108‑41 2″ Bronze Ball Valve offers high pressure durability, safety features, and reliable flow in a trusted, industry-grade package—ideal for demanding systems that require safety and performance.
