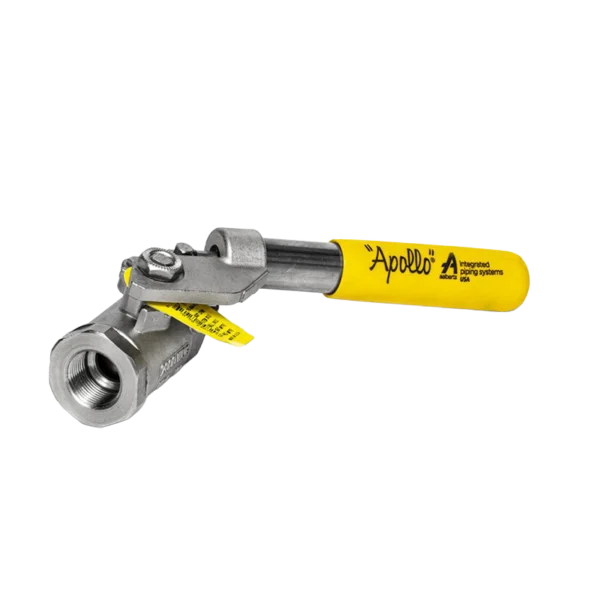

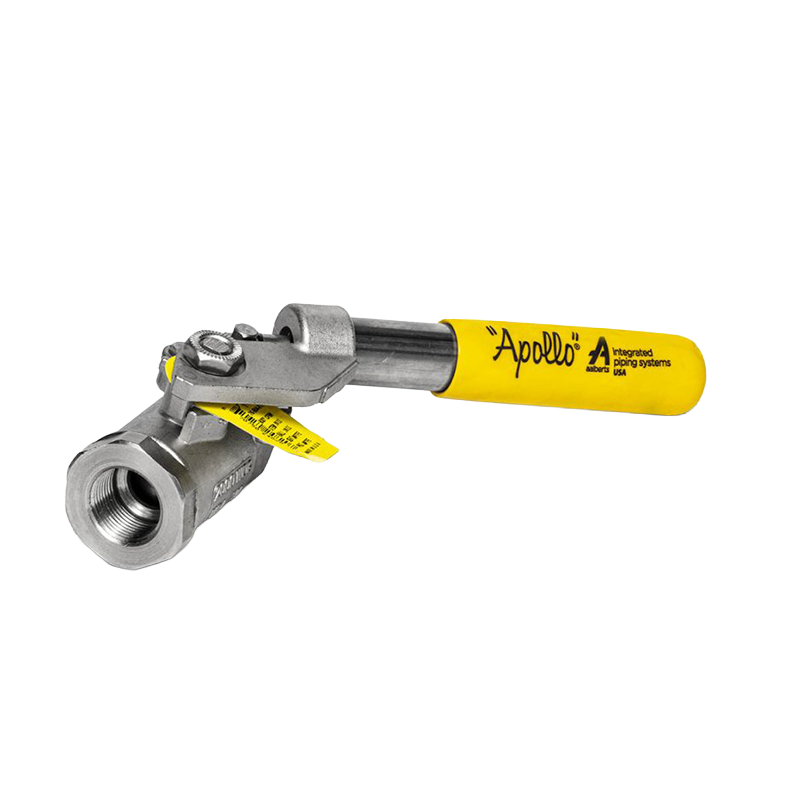

Apollo 76-507-24 Stainless Steel Ball Valve with Deadman spring-close handle offers 1500 psi durability and automatic safety for industrial shut‑off.
Apollo 76-507-24 Stainless Steel Ball Valve is a rugged, two-piece, standard-port valve equipped with a spring-return “Deadman” handle. Built for demanding industrial applications, it ensures safe automatic shut-off when the handle is released. Constructed from investment-cast CF8M stainless steel, this valve offers superior resistance to corrosion, fire safety compliance, and heavy-duty performance.
1500 psi cold working pressure (CWP) rating for sizes 1¼″–2″, with 150 psi saturated steam capability
Deadman spring-return handle designed for safety-critical operations
MSS SP‑110 compliant, NACE MR0175/MR0103 certified for sour-gas compatibility
Blow‑out‑proof stem and adjustable packing gland for enhanced safety and serviceability
Investment-cast CF8M stainless steel body and 316 ball/stem assembly, with RPTFE/MPTFE/PTFE seats and packing
Vacuum-rated to 29 in Hg for wide application compatibility
Made in USA, 5‑year warranty—ensuring quality and long-term reliability
| Specification | Details |
|---|---|
| Valve Type | 2‑piece, standard port |
| Size | 2.5 in (76 mm) FNPT |
| Pressure Rating | 1500 psi CWP, 150 psi SWP saturated steam |
| Temperature Rating | Up to rated steam limits |
| Body Material | CF8M Stainless Steel (ASTM A351) |
| Ball/Stem Material | 316 Stainless Steel (ASTM A276) |
| Seat & Packing | RPTFE/MPTFE/PTFE |
| Port Style | Standard port |
| Stem Design | Blow‑out‑proof |
| Handle Type | Stainless steel deadman spring-return |
| Vacuum Service | Up to 29 in Hg |
| Certifications | MSS SP‑110, NACE MR0175/MR0103 |
Safety-critical industrial shut-off in oil, gas, chemical plants
Emergency flow stop for water and steam systems
Vacuum and pressure systems in power, HVAC, and process industries
Fire-safe systems requiring API 607 compliance
Use PTFE-compatible pipe joint sealant/tape.
Torque per Apollo guidelines (typically 200–600 in‑lb).
Align piping before closing valve to reduce stress.
Check spring return action periodically; service stem gland if leakage occurs.
Safety-first design with automatic closure prevents human error.
High-pressure capability at 1500 psi makes it suitable for rigorous industrial services.
Stainless construction ensures corrosion and fire resistance.
Comprehensive certifications facilitate compliance in regulated industries.
Built-in reliability with blow‑out-proof stem and field-adjustable packing.
