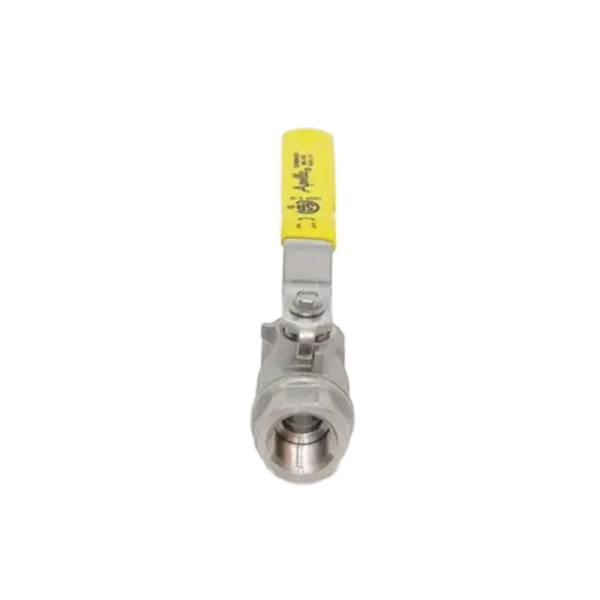

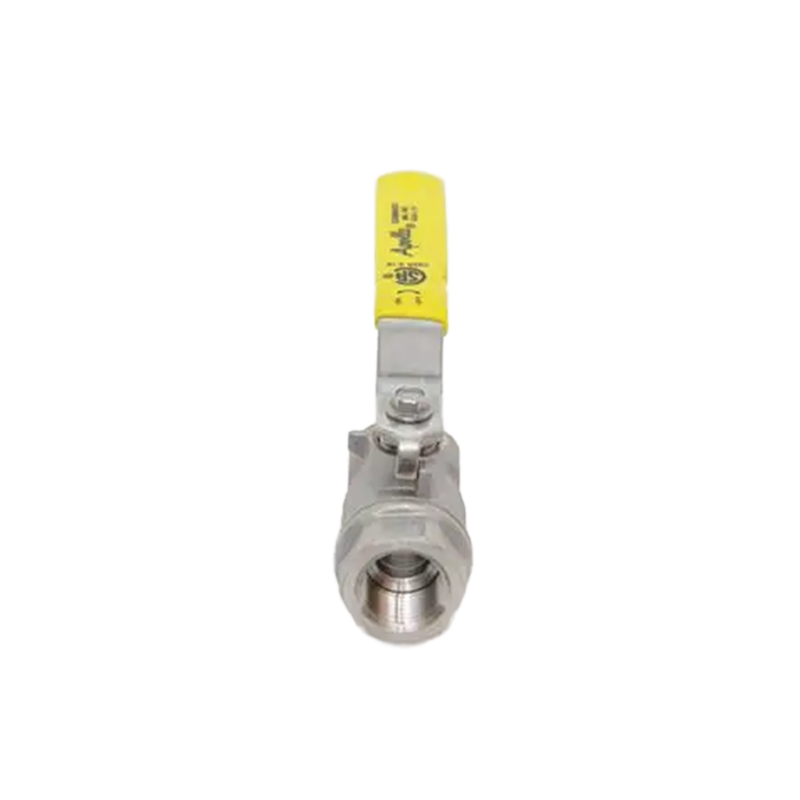

Apollo 76F‑107‑01A 1½″ Stainless Steel Ball Valve is a CF8M full‑port valve rated 1000 psi CWP with blow‑out stem, RPTFE seats, and stainless lever—built for industrial reliability.
Apollo 76F‑107‑01A 1½″ Stainless Steel Ball Valve is a high-performance, full-port valve engineered for demanding industrial piping needs. This Apollo 76F‑107‑01A 1½″ Stainless Steel Ball Valve features a CF8M investment-cast stainless steel body, precision RPTFE seats, and a blow-out-proof, adjustable stem—ensuring durability and safe performance under heavy use.
Rated for 1000 psi Cold Working Pressure (CWP) under non-shock conditions, with 150 psi saturated steam capability and vacuum service down to 29 in Hg, this valve excels across fluid, gas, and steam systems. The full-port design eliminates flow restriction, maximizing throughput and minimizing pressure loss.
Certified to MSS SP-110, NACE MR0175/MR0103, and NSF/ANSI 61/372, and constructed without lead, this Apollo 76F‑107‑01A 1½″ Stainless Steel Ball Valve is ideal for water systems, chemical processes, food and beverage, marine applications, and industrial plants. The stem assembly includes MPTFE packing and an RPTFE bearing, supporting leak-free, long-life performance.
CF8M stainless steel body and ball for corrosion resistance
Full-port flow offers high efficiency under flow
1000 psi CWP / 150 psi steam / 29 in Hg vacuum rating for versatile service
Blow-out proof stem with adjustable gland ensures safety
RPTFE seats and bearings, stem packing MPTFE for reduced torque and tight seal
Stainless steel lever handle (with vinyl) ensures durability
Investment-cast components, lead-free, API 607 fire-safe compliant
| Specification | Details |
|---|---|
| Model | 76F‑107‑01A |
| Size | 1½″ FNPT |
| Body Material | CF8M stainless steel (A351) |
| Ball Material | 316 stainless (A276) |
| Seat Material | RPTFE |
| Stem Packing/Bearings | MPTFE / RPTFE |
| Connection | Female NPT x Female NPT |
| Flow Port Type | Full-port |
| Cold Working Pressure | 1000 psi |
| Steam Rating | 150 psi saturated |
| Vacuum Rating | Down to 29 in Hg |
| Temperature Range | 0 °F to 450 °F |
| Stem Type | Blow-out proof, adjustable packing gland |
| Handle | Stainless steel lever with vinyl grip |
| Certifications | MSS SP-110, NACE MR0175/0103, API 607, NSF/ANSI 61 & 372, lead-free |
| Dimensions (L×H) | ~4.10″ L × 3.30″ H (body) |
| Weight | ~5 lb (per part datasheet) |
| Origin | USA (Aalberts/Apollo) |
Ideal for heavy-duty applications including:
Petrochemical, oil & gas, refining pipelines
Process industry fluid and chemical systems
Steam distribution and condensate return
Drinking water and sanitary systems
Industrial HVAC, pump isolation, marine applications
Any setting requiring high pressure, vacuum or chemical resistance
Use PTFE thread sealant or tape on NPT threads.
Torque to manufacturer specs.
Operate fully open/close to seat the ball.
Adjust the packing gland if leakage occurs.
Suitable for steam—follow pressure-temperature charts.
Inspect handle and seals periodically; lubricate if needed.
Exceptional durability & performance under pressure, steam, or vacuum
Minimal maintenance with blow-out stem and replaceable packing
Flow-efficient thanks to full-port design
Certified for potable water and chemical compatibility
Safety rated for fire, toxic, and heavy-industrial use
As part of Apollo’s respected 76F series, the Apollo 76F‑107‑01A 1½″ Stainless Steel Ball Valve offers maximum flow, durability, and safety in one valve. Ideal for professionals seeking peace of mind under industrial demands.
