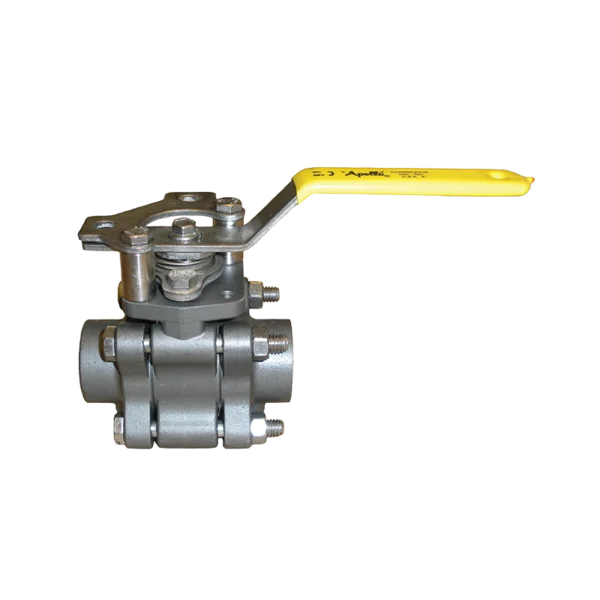

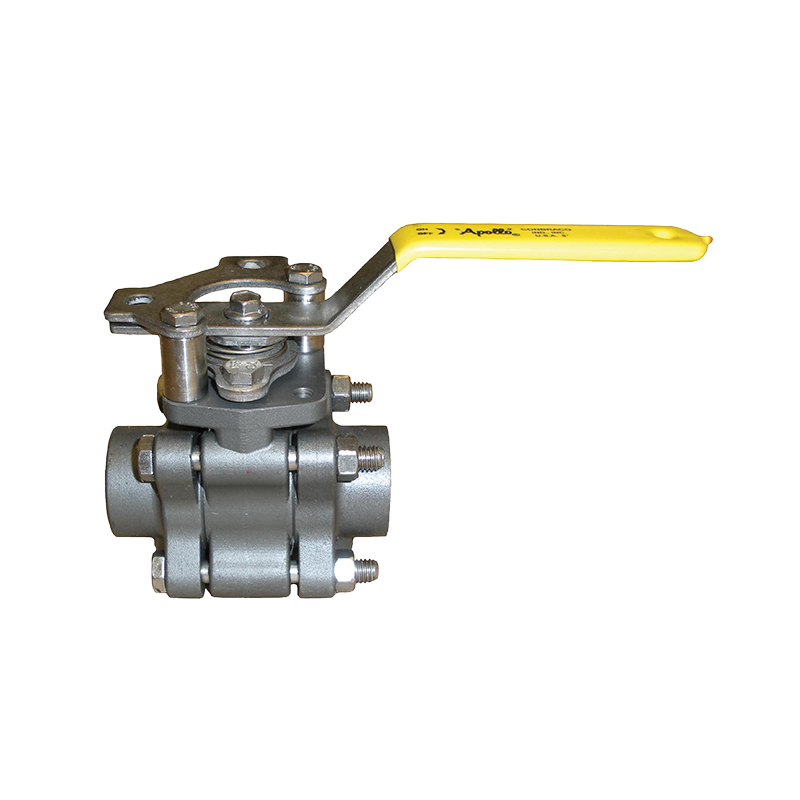

Apollo 83B‑248‑01 carbon steel ball valve 2 600 lb – full-port, 3-piece construction with stainless steel trim, swing-out section, and ISO actuator pad for easy maintenance.
Apollo 83B‑248‑01 carbon steel ball valve 2 600 lb is an industrial-grade, three-piece full-port ball valve designed to meet the demanding requirements of gas, water, and steam distribution systems. Constructed from durable carbon steel and equipped with stainless steel trim, this valve offers a 600 lb pressure class, ensuring robust operation in high-pressure environments.
As part of the Apollo 83B‑240 Series, the Apollo 83B‑248‑01 carbon steel ball valve 2 600 lb offers a swing-out center section for easy disassembly and servicing, significantly reducing downtime during maintenance. The enclosed fastener design enhances safety, while the pressure-balanced solid ball provides consistent shutoff performance.
The valve features a full-port design that ensures minimal flow restriction, maximizing throughput for fluid systems. The stainless steel 316 ball and stem enhance corrosion resistance and durability. The anti-blowout, one-piece bottom-entry stem design, along with adjustable multi-piece PTFE “V”-style packing, ensures long-term reliability and maintenance safety.
Other high-performance features include:
Two-position lever locking for secure operation
Premium spiral-wound gaskets for pressure and temperature resistance
Cast bosses for bleed and drain ports on the center section and end caps
Fully machined ISO 5211 actuator mounting pad for optional automation—perfect for integrating pneumatic or electric actuators
Certified for vacuum service up to 29 in Hg
Rated for 250 psi saturated steam, demonstrating thermal resilience
3-piece carbon steel body with full-port design
Class 600 pressure rating with robust, heavy-duty construction
Stainless steel 316 ball and stem trim
Swing‑out center design enables quick maintenance
Anti‑blowout stem with PTFE “V”-style packing
ISO 5211 mounting pad for optional actuation
Vacuum rated to 29 in Hg; steam rated to 250 psi
Enclosed fasteners and cast bosses for bleed port options
| Specification | Details |
|---|---|
| Brand | APOLLO |
| Model | 83B‑248‑01 |
| Valve Type | 3-piece, full-port ball valve |
| Size | 2″ (≈ 51 mm) |
| Material – Body | Carbon steel (ASTM A216 WCB) |
| Trim Material | Stainless steel (ball/stem) |
| Pressure Rating | 600 lb class |
| Steam Rating | 250 psi saturated steam |
| Vacuum Rating | Up to 29 in Hg |
| Maintenance | Swing-out center, enclosed fasteners |
| Packing | Multi-piece PTFE “V”-style |
| Mounting | ISO 5211 actuator-ready pad |
| Standards Compliance | ASME B16.11/34, NACE MR0175, API 608 |
The Apollo 83B‑248‑01 carbon steel ball valve 2″ 600 lb is engineered for industrial pipelines handling water, gas, or steam that require reliable shutoff, periodic draining, or automation-ready solutions. Use cases include:
Production facilities/chemical plants
Steam generation and heating systems
OEM integration for machinery and automation
HVAC plants/custom control panels
Critical infrastructure requiring full port flow and quick maintenance access
Use ASME B16.11 socket-weld or threaded preparation per spec
Refer to ISO 5211 pad dimensions for actuator installation
Regularly inspect and repack V‑style PTFE packing for longevity
Use bleed ports during recommissioning to purge air or condensate
Prevent handle loosening by engaging lever locking positions
Choose Apollo when you need rugged performance, ease of maintenance, and flexibility for automation. This model stands out with a full port for maximum flow, a swing-out center for reduced downtime, and ISO-actuation capability—all backed by Apollo’s industrial quality and US manufacturing.
