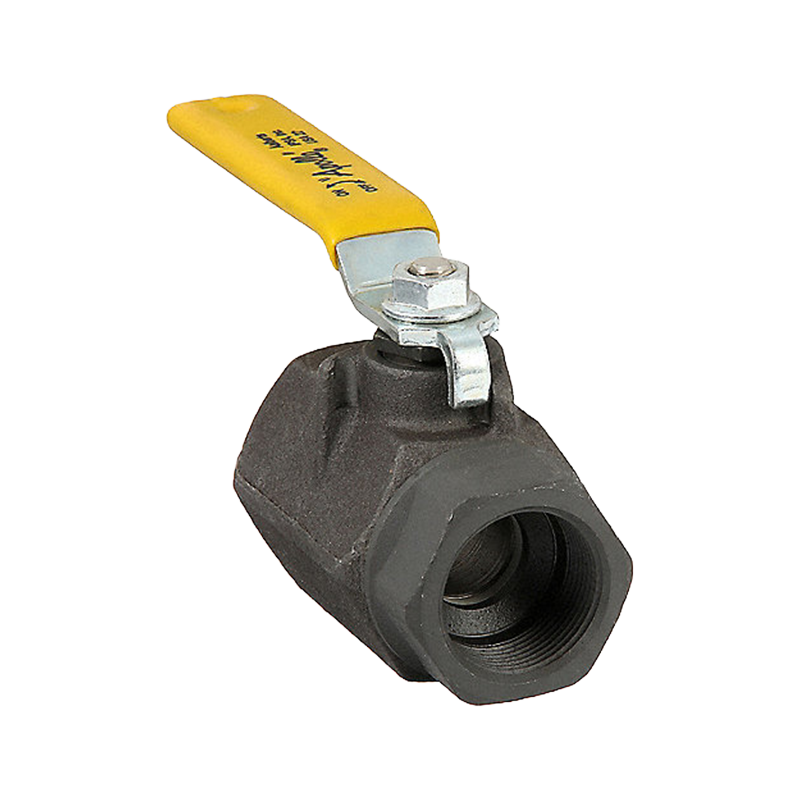

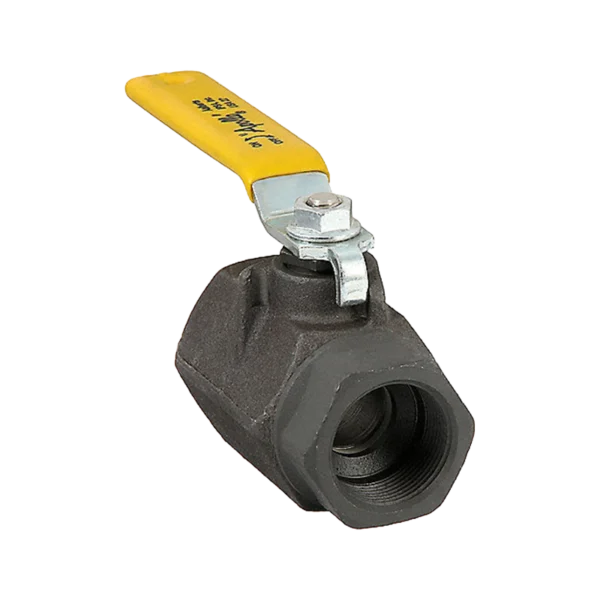

Apollo Carbon Steel Ball Valve 2000 lbs 10 mm (3/8″) 73A‑102‑01A provides durable, high-pressure flow control with a reliable lever handle and threaded NPT connections.
Apollo Carbon Steel Ball Valve 2000 lbs 10 mm (3/8″) 73A‑102‑01A is a high-pressure inline ball valve engineered for demanding industrial applications. Constructed from rugged carbon steel and rated at 2000 lbs, this compact 10 mm (3/8″) valve ensures precise flow control and long service life.
Designed with a lever-operated handle and full-port design, the 73A‑102‑01A offers minimal pressure drop, making it suitable for water, oil, gas, and other non-corrosive media. Its threaded connections allow for easy installation and maintenance in hydraulic, pneumatic, and industrial piping systems.
2000 lbs pressure rating, ideal for high-pressure applications
Carbon steel body, offering strength and corrosion resistance
Threaded female NPT ends 3/8″, compatible with standard piping
Full-port design for unrestricted flow
Lockable lever handle for secure shut-off
Blow-out proof stem and double-sealed seat for leak-tight performance
| Specification | Details |
|---|---|
| Valve Type | Full-port ball valve |
| Size | 10 mm (3/8″) |
| Connection Type | 3/8″ female NPT |
| Pressure Rating | 2000 lbs (ANSI 2000#) |
| Body Material | Carbon Steel |
| Handle | Lockable lever |
| Stem | Blow-out proof |
| Seal Type | PTFE seats (double-sealed) |
| Temp Rating | -20 °C to 150 °C (approx.) |
| Media | Water, air, oil, gases (non-corrosive) |
| Standard | ISO 9001 manufactured |
Industrial process piping
Hydraulic and pneumatic systems
Oil & gas flow control
Water and steam pipelines
General-purpose industrial shut-off
Use thread sealant or PTFE tape before installation
Fully open or close handle to minimize wear
Inspect for leaks periodically; replace seat/seals if needed
Store in a dry environment to prevent rust
High-pressure durability rated at 2000 lbs
Rugged carbon steel body for long-term service
Leak-tight and lockable for secure operation
Compact 10 mm size, ideal for smaller lines
Proven reliability from Apollo (Conbraco brand)
