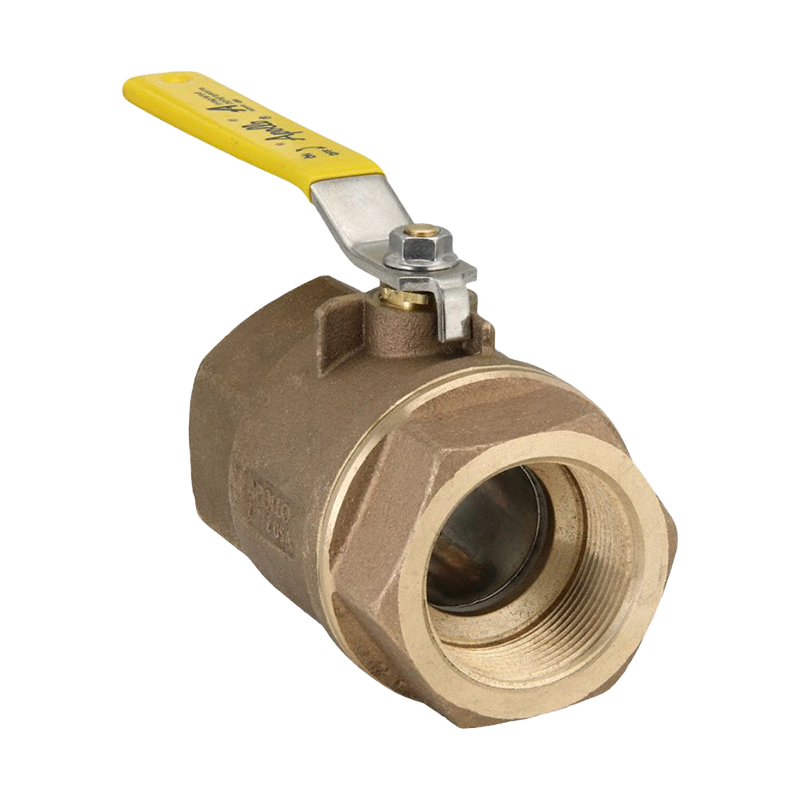

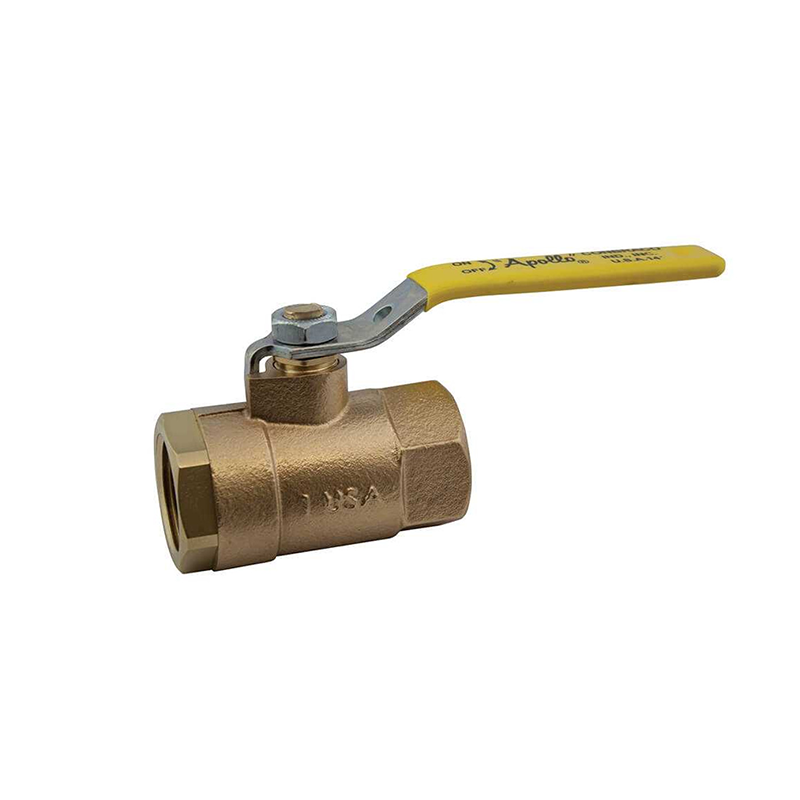

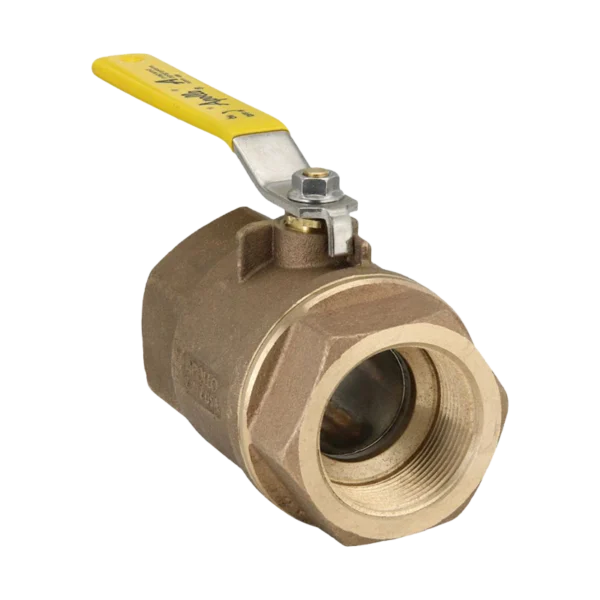

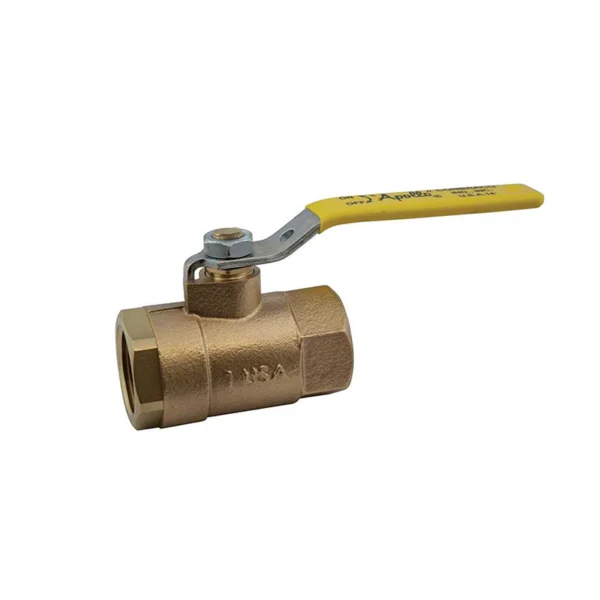

Ball valve APOLLO 400 lbs 1 in 25mm

Industrial-grade ball valve 1 inch for heavy-duty applications

The ball valve 1 inch, model APOLLO 32-105-01, delivers robust, industrial-grade performance for fluid control in high-pressure systems. Rated at 400 lbs, this valve ensures consistent shutoff and flow regulation in water, oil, gas, and steam applications. It’s a compact yet powerful valve with 25mm porting and a 1-inch connection, designed to handle demanding environments with ease.

Why choose the APOLLO 400 lbs ball valve?

• High-pressure performance: With a pressure rating of 400 lbs, this ball valve stands up to the toughest conditions.

• Precision shutoff: The full-port ball design ensures minimal pressure drop and superior flow.

• Corrosion-resistant construction: Built with durable materials to resist wear and chemical damage.

• Versatile use: Suitable for water, oil, gas, and steam.

• Compact design: Easy to install even in tight piping configurations.

Applications for this 1-inch ball valve

The ball valve 1 inch by APOLLO is a trusted solution across multiple industries:

• Petrochemical plants

• Water treatment systems

• Steam systems

• Gas lines

• Manufacturing plants

• HVAC systems

• Plumbing installations

Technical specifications

• Brand: APOLLO

• Model: 32-105-01

• Type: Full-port ball valve

• Connection size: 1 inch (25mm)

• Pressure rating: 400 lbs (WOG)

• Port: Full

• Operation: Lever handle

• Material: Industrial brass or stainless steel (confirm exact SKU variant)

• Thread type: NPT or BSP (check thread standard based on application)

Built for durability and precision

This valve is designed for systems where failure is not an option. The APOLLO 1-inch ball valve provides precise shutoff with minimal maintenance, even after thousands of cycles. It features a floating ball mechanism, reinforced stem, and high-grade seals to ensure long-lasting operation.

The valve’s internal mechanism ensures smooth operation without sticking, even in systems that experience extreme temperatures or fluctuating pressure.

Installation tips

Make sure to use compatible thread tape or sealant during installation. This valve is bi-directional, meaning it can be installed in either direction. The handle provides a clear visual indicator of open/closed position for safety and inspection.

Optimize your system with APOLLO

With decades of experience in valve manufacturing, APOLLO has earned its place as a leader in fluid control. The ball valve 1 inch (32-105-01) is one of the most trusted models for industrial systems.
