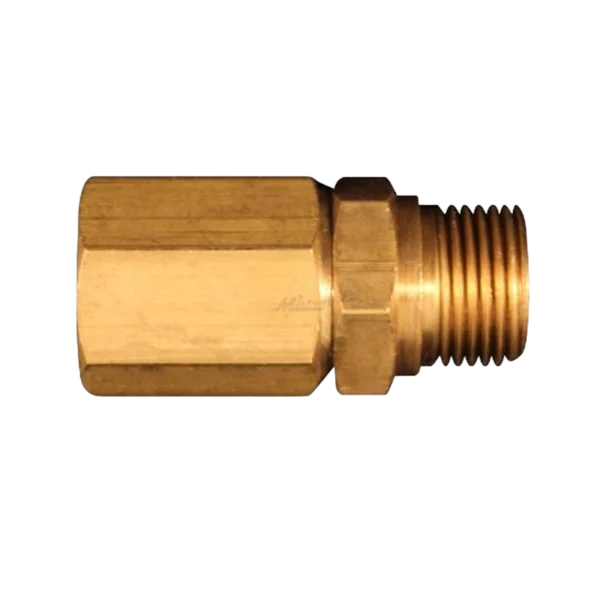

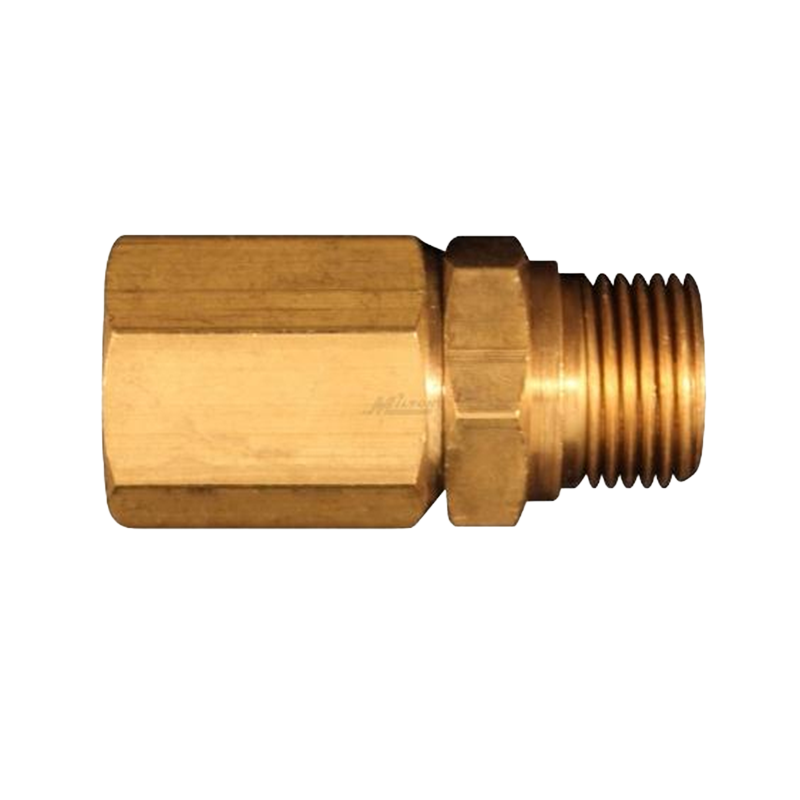

Milton 1098‑6 Load Genie safety valve 3/8″ x 3/8″

Milton 1098‑6 Load Genie safety valve 3/8″ x 3/8″ is a high-performance unloader and check valve crafted for compressed air systems. Engineered to relieve pressure in discharge manifolds safely, it ensures reliable compressor cycling without intricate tubing or bulky external relays. The compact design, made from durable brass, offers both vertical and horizontal installation flexibility.

Operating on fundamentals of efficiency and simplicity, the Milton 1098‑6 safety valve 3/8″ x 3/8″ enables automatic unloading when a compressor stops, preventing pressurization of the manifold and reducing starter load. This Load Genie model is practical for compact systems where space-saving and quiet operation matter.

The valve handles up to 250 psi maximum working pressure and allows up to 6 SCFM of flow—sufficient capacity for most small-to-medium compressor applications yet compact enough for precise control. Rated for temperatures up to 450 °F, it maintains performance in high-heat environments like continuous-duty operation rooms.

Made in the USA, the Milton 1098‑6 Load Genie safety valve 3/8″ x 3/8″ commits to quality craftsmanship and American manufacturing standards.

H2: Key Features

• Brass unloader & check valve compactly built for manifold discharge unloading

• 250 psi maximum working pressure – reliable for heavy-duty compressors

• Up to 6 SCFM flow capacity – handles typical compressor air loads efficiently

• Mount vertically or horizontally – versatile installation orientation

• 450 °F max temp rating – ideal for hot or enclosed mechanical rooms

• Simplifies discharge control – eliminates need for external tubing or switches

H2: Technical Specifications

H2: Applications

The Milton 1098‑6 Load Genie safety valve 3/8″ x 3/8″ is ideal for:

• Air compressor discharge manifold unloading

• Industrial workshops and maintenance bays

• HVAC and pneumatic systems where space and simplicity matter

• Portable compressor setups needing compact pressure control

• Systems requiring reliable unloading without external tubing

H2: Installation & Maintenance Tips

1. Install directly onto compressor discharge port (3/8″ FNPT).

2. Orient per space and checklist; ensure clear airflow path.

3. Use with thread sealant for airtight connection.

4. Periodically check for leaks and verify unloading upon compressor stop.

5. Replace if brass wears or leak occurs to maintain safe manifold depressurization.

H2: Why Choose Milton 1098‑6 Load Genie safety valve 3/8″ x 3/8″?

• Saves space with integrated unloader and check valve

• Built from long-lasting brass to handle high pressure and heat

• Quiet and efficient operation with up to 6 SCFM flow

• Dual orientation simplifies installation layout

• Delivers trusted performance from a respected pneumatic brand
